Instructions for assembly GB
33
Electrical connection
• The electrical connection must be carried out by a
qualified electrician who is authorised to carry out such
work!
• Statutory regulations and the connection specifications issued
by the local power supply company must be strictly observed.
• When connecting the appliance it must be ensured that there
is a device which makes it possible to disconnect it from the
mains at all poles with a contact opening width of at least
3mm. Line-protecting switches, fuses or contactors are
suitable cut-out devices.
• When connecting and repairing the appliance disconnect it
from the electricity supply with one of these devices.
• The earth wire must be sufficiently long so that if the strain
relief fails, the live wires of the connecting cable are subjected
to tension before the earth wire.
• Any superfluous cable must be removed from the installation
area beneath the appliance.
• Make sure that the local mains voltage is the same as the
voltage on the rating label.
• To connect the appliance, unscrew the switchbox cover on the
underside of the appliance to access the terminal block. After
connecting the appliance, replace the cover and secure the
connection cable with the strain relief clamp.
• The connection cable must be at least H05 RR-F.
• If the excess cable of this appliance is damaged, it has to be
replaced by the manufacturer, the Customer service of the
manufacturer or by another qualified person to avoid danger.
• Full protection against accidental contact must be ensured on
installation.
• Attention! Incorrect connection may result in the power
electronics unit being destroyed.
Power supply
Mains voltage: 400-415V 2N~, 50-60 Hz
Component rated voltage: 230 - 240V

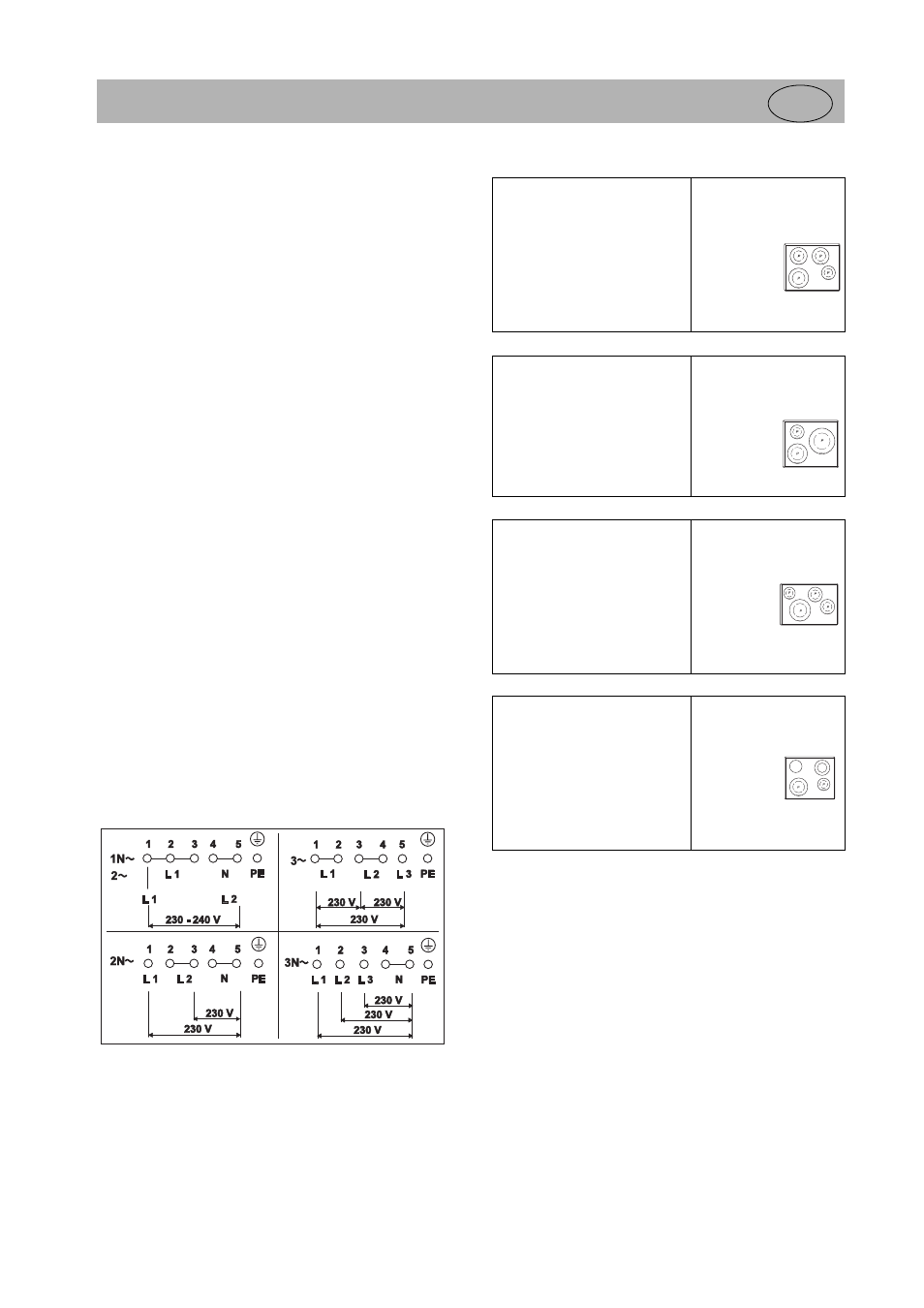

Electrical connections
Technical data
* Power when the power boost function is activated
Start of operation
Once the hob has been installed and the power supply has been
provided (mains connected) an automatic test of the controls will
be carried out and information for customer service will be
indicated.
Briefly wipe over the surface of the hob with a sponge and soapy
water and then dry with a clean cloth.
Dimensions
Hob Height/ Width/ Depth mm
50 x 600 x 510
Cooking zones
Back left
Ø cm / kW
Front left Ø cm / kW
Front right Ø cm / kW
Back right Ø cm / kW
18/ 1.85 (2.5)*
21/ 2.3 (3.2)*
14.5/ 1.4 (1.8)*
18/ 1.85 (2.5)*
Hob, total kW 7.4
Dimensions
Hob Height/ Width/ Depth mm
50 x 600 x 510
Cooking zones
Back left
Ø cm / kW
Front left Ø cm / kW
Right Ø cm / kW
14.5/ 1.4 (1.8)*
21/ 2.3 (3.2)*
26/ 2.4 (3.2)*
Hob, total kW 6.9
Dimensions
Hob Height/ Width/ Depth mm
50 x 750 x 510
Cooking zones
Back left
Ø cm / kW
Front left Ø cm / kW
Front right Ø cm / kW
Back right Ø cm / kW
14.5/ 1.4 (1.8)*
26/ 2.4 (3.2)*
18/ 1.85 (2.5)*
18/ 1.85 (2.5)*
Hob, total kW 7.4
Dimensions
Hob Height/ Width/ Depth mm
50 x 600 x 510
Cooking zones
Back left
Ø cm / kW
Front left Ø cm / kW
Front right Ø cm / kW
Back right Ø cm / kW
14.5/ 1.2
21/ 2.3 (3.2)*
14.5/ 1.4 (1.8)*
18 or 12/ 1.7 or 0.7
Hob, total kW 6.6
