5 Inset the edge of the paper into the
paper feeder (black plastic part). If
inserted correctly, the edge of the
paper will pass through the auto
cutter paper slit. The paper will be
cut once.
6 Remove the cut tip, and close the
cover.
Note: When the paper end mark
appears on the paper, replace
the paper roll before it runs
out.
5-3. Installing the Roll Paper Guide
When using a paper roll with an 58 mm
width, install the attached roll paper
guide in the groove in the printer.
The setting for memory switch 2-A and
2-B must be changed to change the
print width from 63 mm to 45 mm.
For instructions on setting the memory
switch, please refer to the separate Pro-
grammer’s Manual.

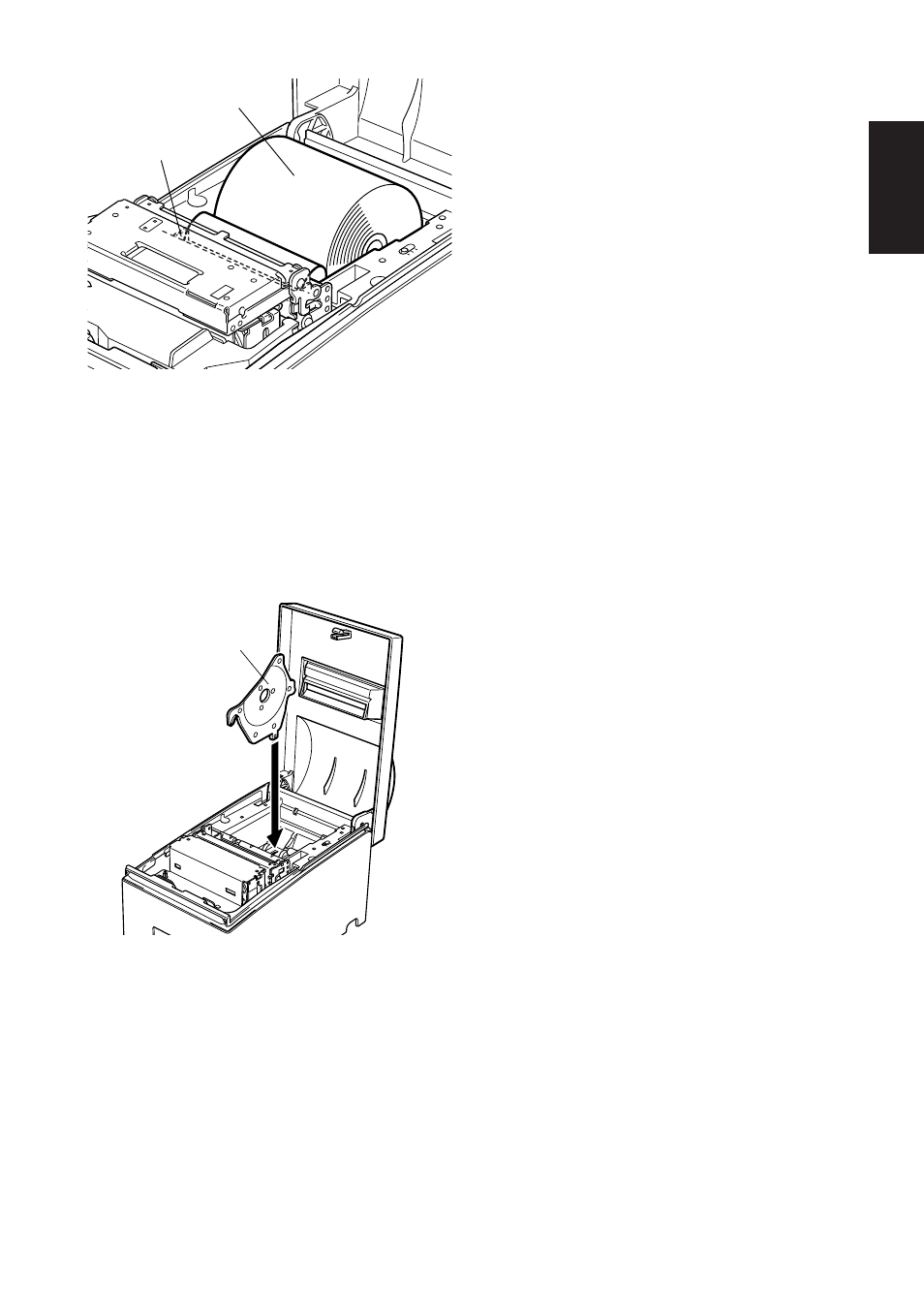

Fig. 5-14 Loading the paper
Roll paper
Paper feeder
H V
OFF
ON ERROR
POWER
FEED
Roll paper guide
Fig. 5-15 Installing the roll paper guide
