VCR and Cable or
Antenna For best results, use this connection if:
❑
Your cable company does not require you to use a cable box.

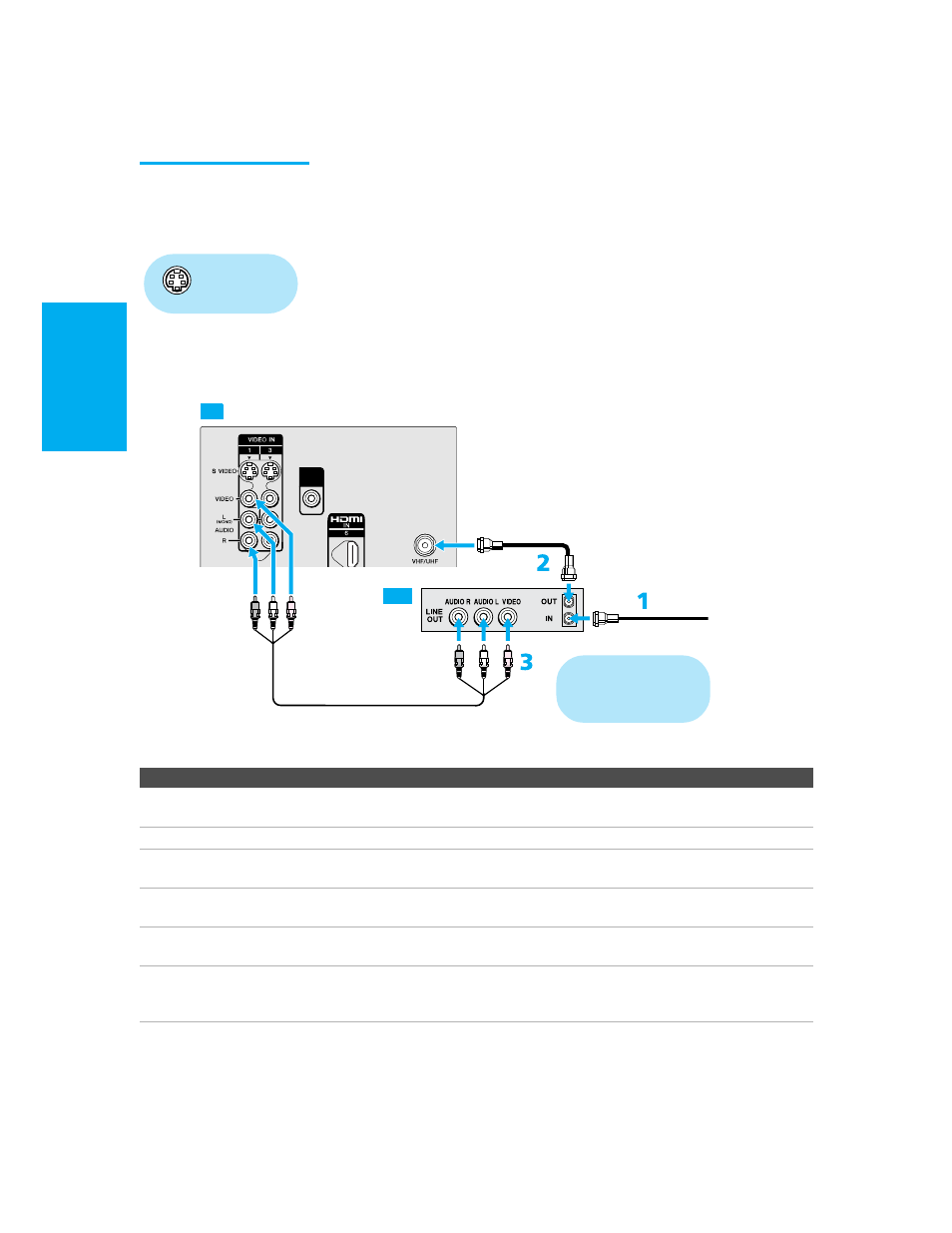

To connect the VCR and Cable or Antenna
1 Connect the CATV cable or Antenna to the VCR’s input jack.
2 Use a coaxial cable to connect the VCR’s output jack to the TV’s
VHF/UHF jack.
3 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
4 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Notes on Using This Connection
Using
S VIDEO jacks?
See page 7.
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Watch cable channels Press TV/VIDEO repeatedly to select the cable input.
Set up the TV remote control
to operate the VCR If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 24-25.
Activate the TV remote
control to operate the VCR Press VCR/DVD FUNCTION .
Control VCR functions with
the TV remote control See “Operating a VCR” on page 26.
Label video inputs to easily
identify equipment connected
to the TV See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/ PCM/
DOLBY DIGIT
DOLBY DIGITAL AL
CATV cable/antenna
Coaxial cable
A/V cable
TV
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
