OWNER'S MANUAL
AA35 MIXER AMPLIFIER
7
9. Treble Control
Normally set at the 12:00 position, rotating clockwise will increase (boost) treble frequencies by 10dB
at 10kHz. Rotating counter-clockwise from the 12:00 position will decrease (cut) treble frequencies by
10dB at 10kHz.

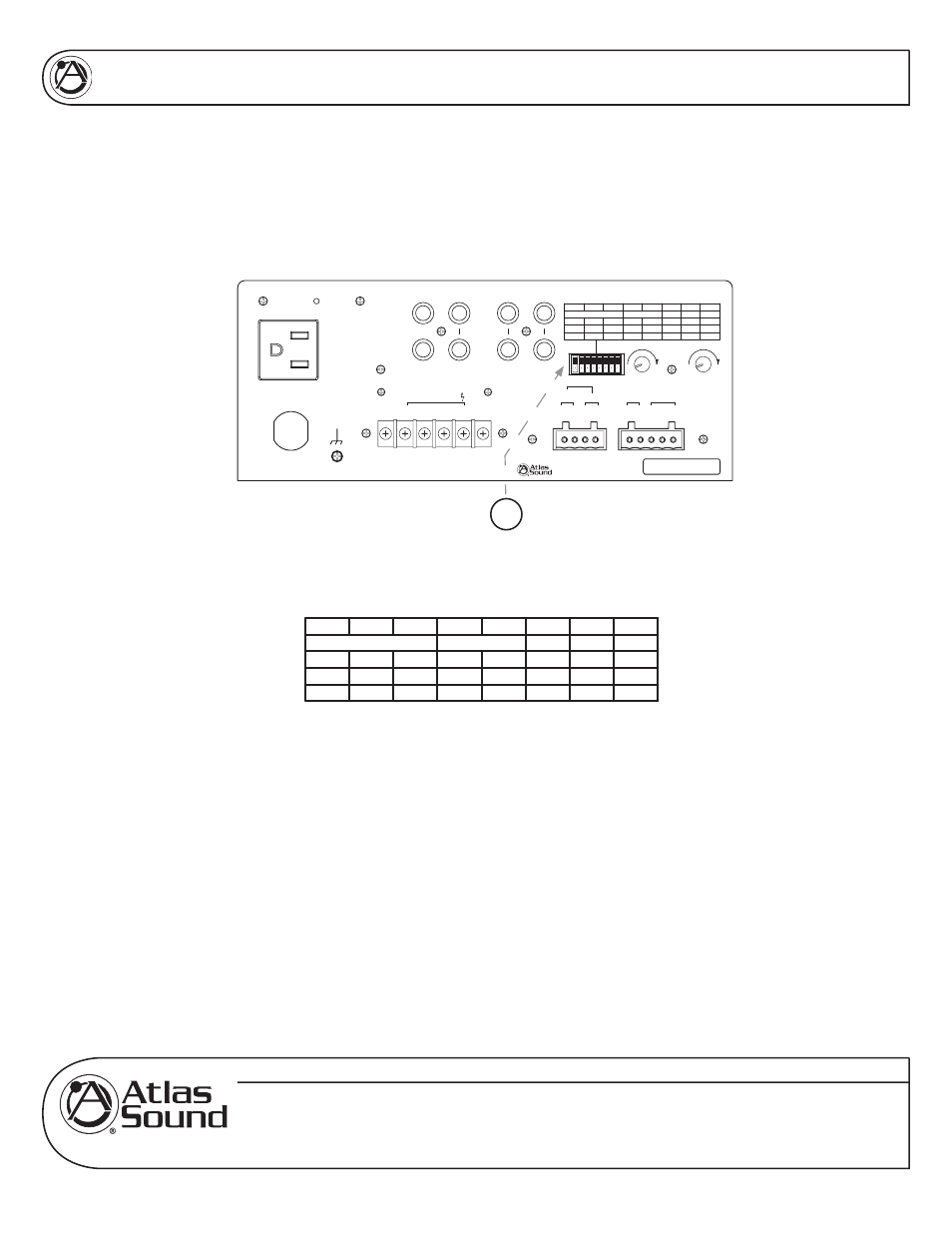

REAR PANEL DESCRIPTION
10. Multi Function Dipswitch
Understanding the functionality of the dipswitches is key to maximizing the versatility of the AA35.
When a switch is in the up position, the function is "OFF"; when a switch is in the down position, the
function
is
"ON".
SWITCH 1- Zone 2 Assign - When "ON", will route signals from Input 3 to the Zone 2 Output
terminals.
SWITCH 2- Zone 2 Assign - When "ON", will route signals from Input 2 to the Zone 2 Output
terminals.
SWITCH 3- Zone 2 Assign - When "ON", will route signals from Input 1 to the Zone 2 Output
terminals.
SWITCH 4 - Mute Receive - When "ON", Input 3 signals will be muted if a signal is present on
Input 1 (Refer to Mute Sensitivity Control, number 16 on page 9), or if a contact closure is
present on the remote mute terminals (Refer to Remote Mute Connector, number 11(B) on page
8).
SWITCH
5
- Mute Receive - When "ON", Input 2 signals will be muted upon a signal present on
Input 1(Refer to Mute Sensitivity Control, number 16 on page 9), or if a contact closure is present
on the remote mute terminals (Refer to Remote Mute Connector, number 11(B) on page 8).
On
Off
Low cut
8
On
Off
4
3
2
1
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3
Input 2
Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On
Unswitched Outlet
120V AC 60Hz
Max 500W
Outlet Breaker
125V AC 4A
Push Reset
120V AC 60Hz 100W
Amp In
Line Out A
Line Out B
Pre Out
Input 3
Input 2
L
R
Zone2
10
0
Level
Mute
Sens
10
0
Remote
Mute
G
-
+
Input 1
¡
8
1W
¡
600
Zone 2 Out
-
+
-
+
Speaker Output 35W
COM
25V
¡
8
70V
L
R
£Ид£К>VÊV>ЮК Ы`°]К
Г]К/8КЗx££К
nдд®ÊnÇÈООООКМ>Г-Х`°V
77)+
7jbWiIekdZ77I[h_[iC_n[h7cfb_\_[h
CLASS 2 WIRING
10
On
Off
Low cut
8
On
Off
4
3
2
1
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3
Input 2
Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On
