OWNER'S MANUAL
AA35 MIXER AMPLIFIER
14

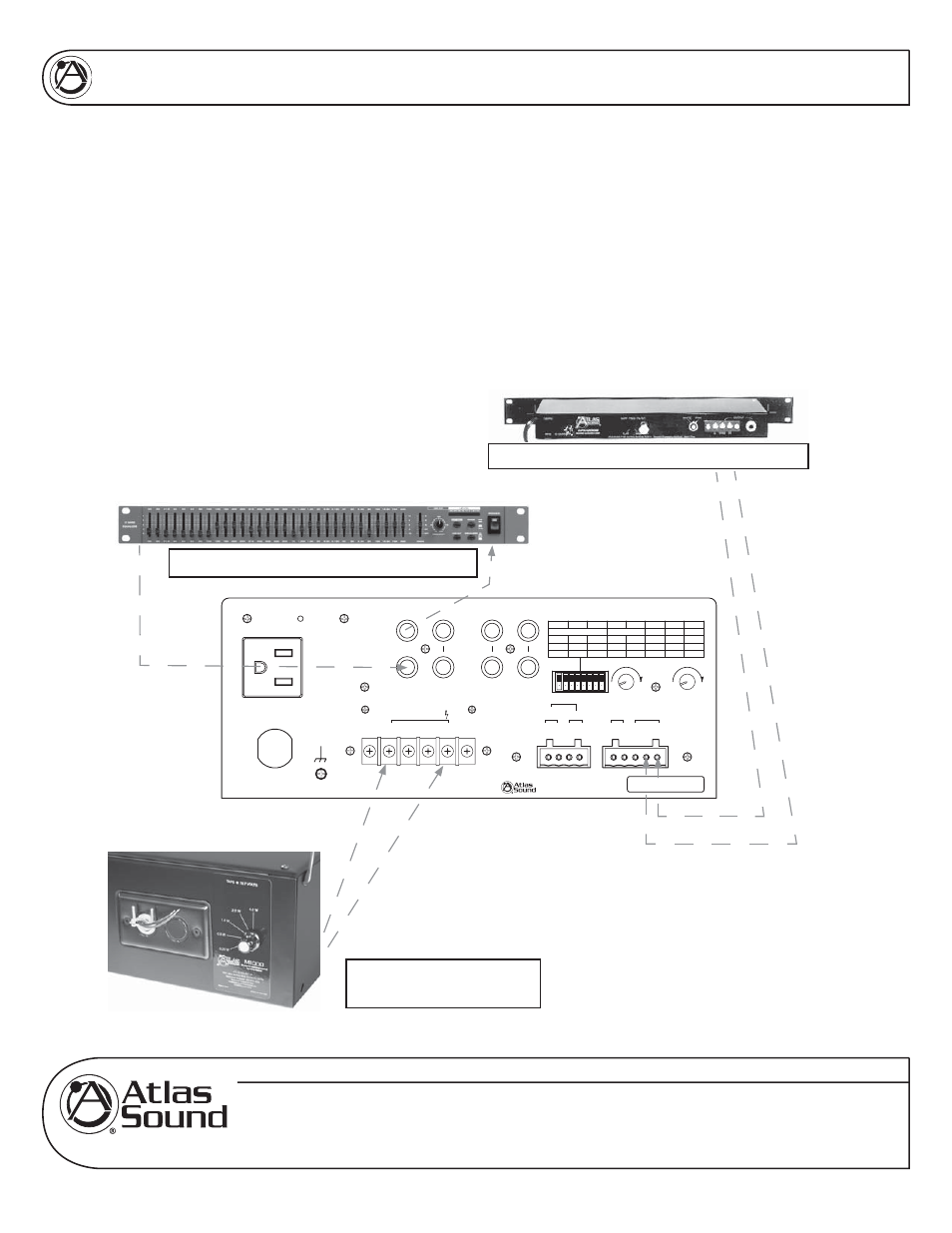

Setup – Example 3: Small Speech Privacy Sound Masking System
• Connect a Atlas Sound GPN1200B masking generator to INPUT 1.
• Set Dipswitch 7 to Line/Tel position.
• Connect a 1/3 octave graphic equalizer between to the PRE OUT and AMP IN connectors.
This is to tune the system.
• Connect Atlas Sound M1000 masking speakers (up to 30) to the 70V output terminals tapped at
1W
each.
Example 3
