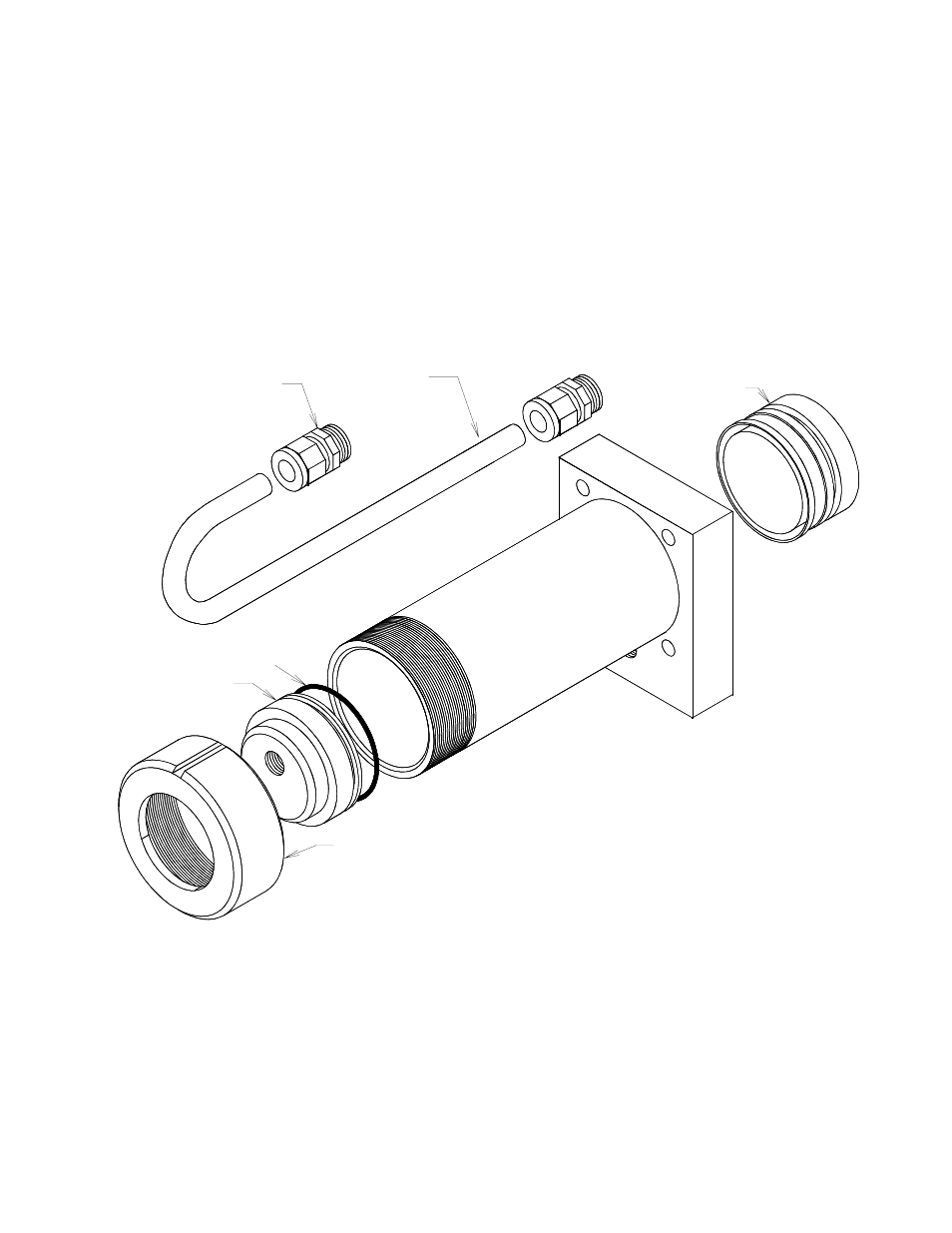

Cylinder Assembly

End cap O-ring

Cylinder Ring

Cylinder end cap

S.S compression

fittings

1/2" SS tube

Piston with seal

Composite cylinder

and base

PL-MTS-3/8X1/2S

HP-CYL-SST

HP-CYL-CCA

SO-HPP-ECCB

HP-CYL-EC

HP-CYL-R

HP-CYL-PT
