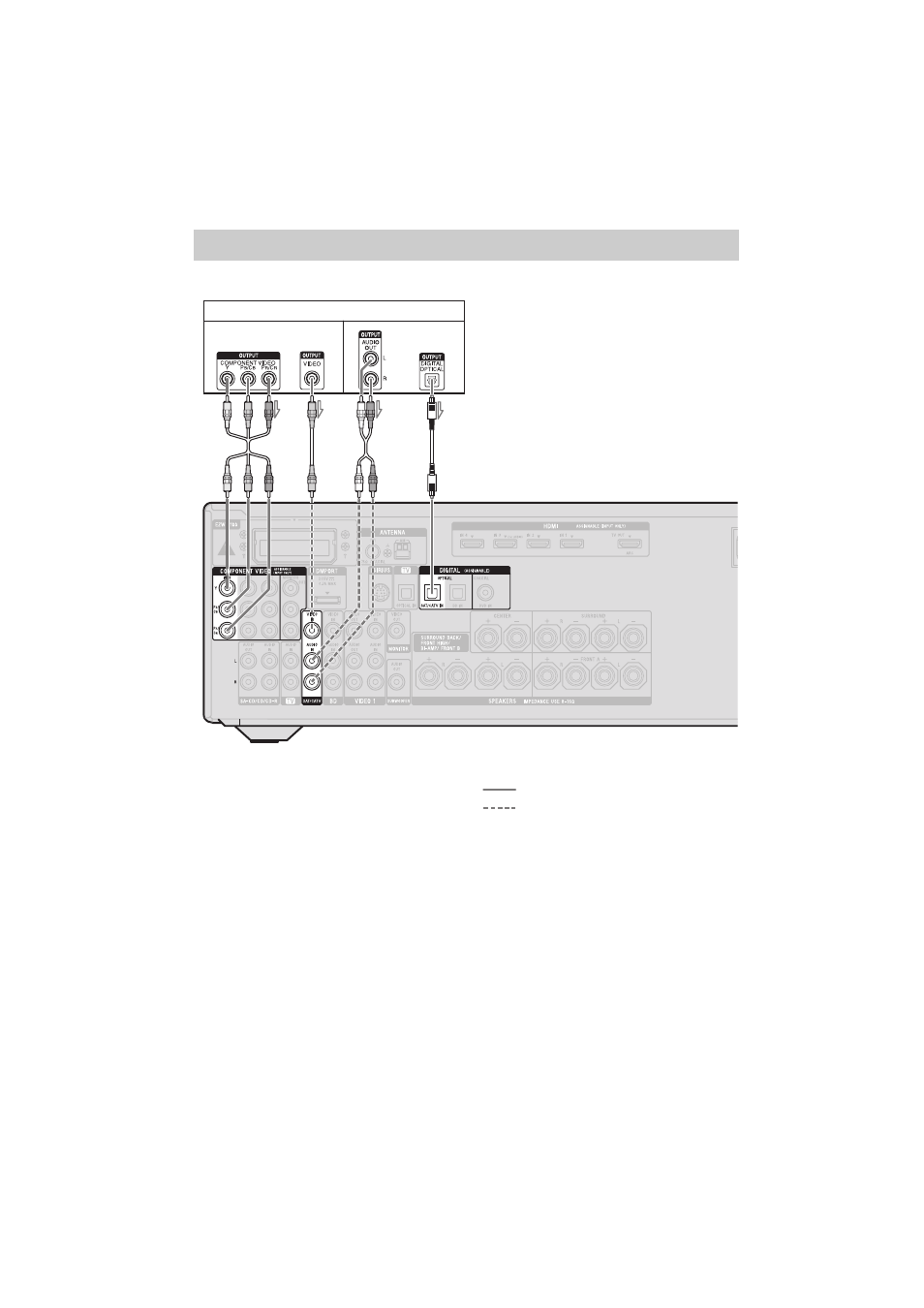

The following illustration shows how to connect a satellite tuner or cable TV tuner.
A Component video cord (not supplied)
B Video cord (not supplied)
C Audio cord (not supplied)
D Optical digital cord (not supplied)
Recommended connection
Alternative connection
Note
The initial setting of the COMPONENT VIDEO IN
3 jacks are satellite tuner or cable TV tuner. If you
want to connect your satellite tuner or cable TV
tuner to the COMPONENT VIDEO IN 1 or IN 2
jacks, set “Input Assign” in the Input Option menu
(page 85).
Connecting a satellite tuner, cable TV tuner
B A
Video signals Audio signals
C
Satellite tuner, Cable TV tuner
D
