4. Carefully cut out the sheetrock
around the marked lines, and
remove any debris from the hole.
Wiring
The front channels of Sunfire's Theater
Grand Amplifiers each have two pairs
of outputs. In a normal system, use the
voltage source.

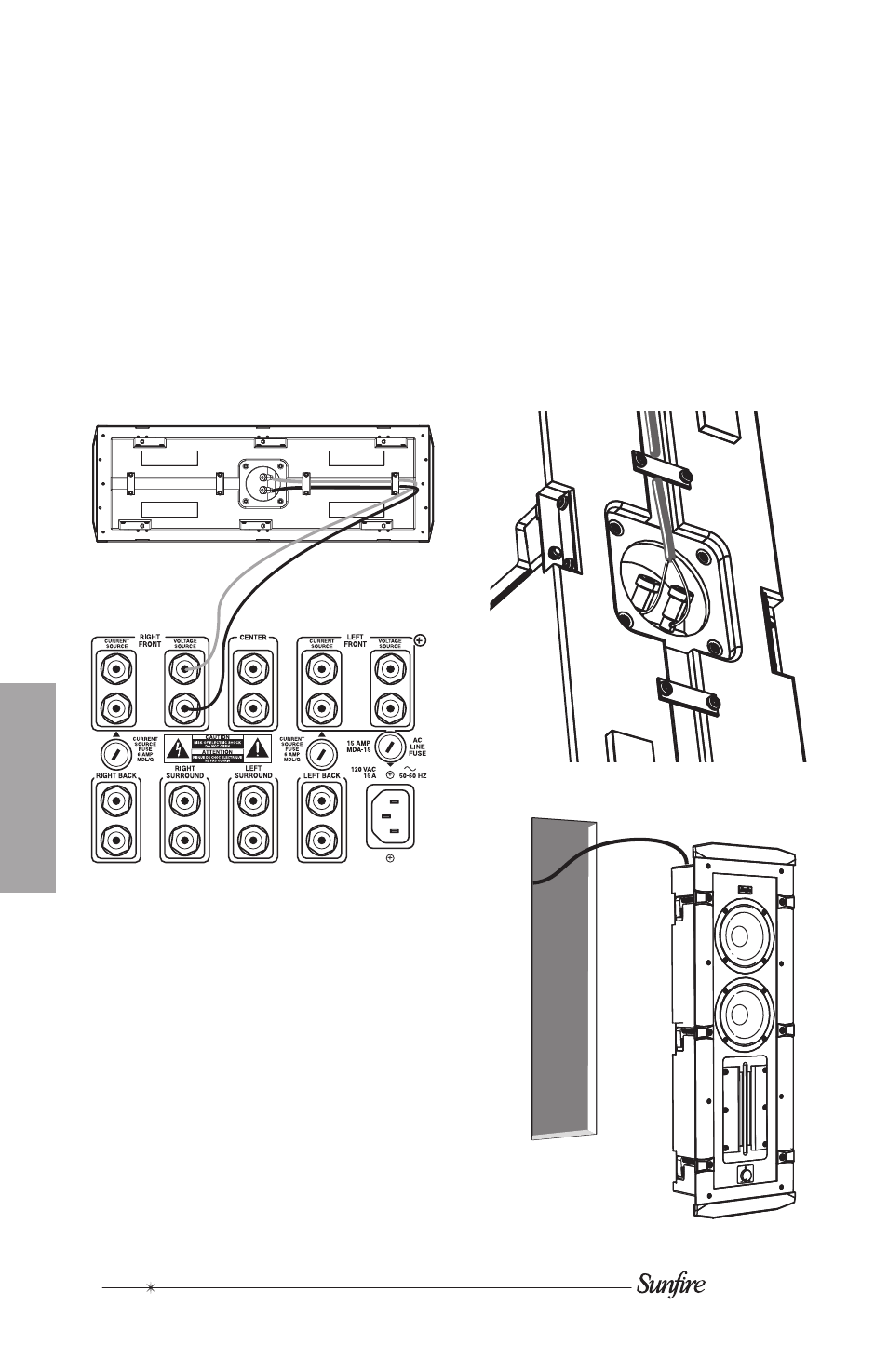

This example shows the speaker wiring
connections for a right front speaker. On
conventional amplifiers, use the standard
positive and negative speaker-level
outputs.
1. Install the speaker wires following
all local codes for electrical wiring
installation. Use class wiring,
and 1 gauge is recommended, 16
gauge is the minimum.
. Follow common low voltage
practices like avoiding high voltage
electrical wiring, or crossing them
perpendicularly. This will reduce the
chance of picking up hum or other
interference.
. Pass the wiring through the wiring
channels in the back of the loud-
speaker (see item 2 on page 6.)
4. Do an electrical continuity test to
make sure the connections are
good from the amplifier-end of the
speaker wire to the ends of the
wires at the loudspeaker.
5. Secure the wiring to the loudspeak-
er's spring-loaded binding posts,
observing the correct polarity.
Gently pull on them to make sure
they are secure.
MINIMUM SPEAKER LOAD IMPED ANCE 4 OHMS
