Assembly – Smooth Fitness CE-3.0 User Manual
Page 13

www.smoothfitness.com
13
ASSEMBLY

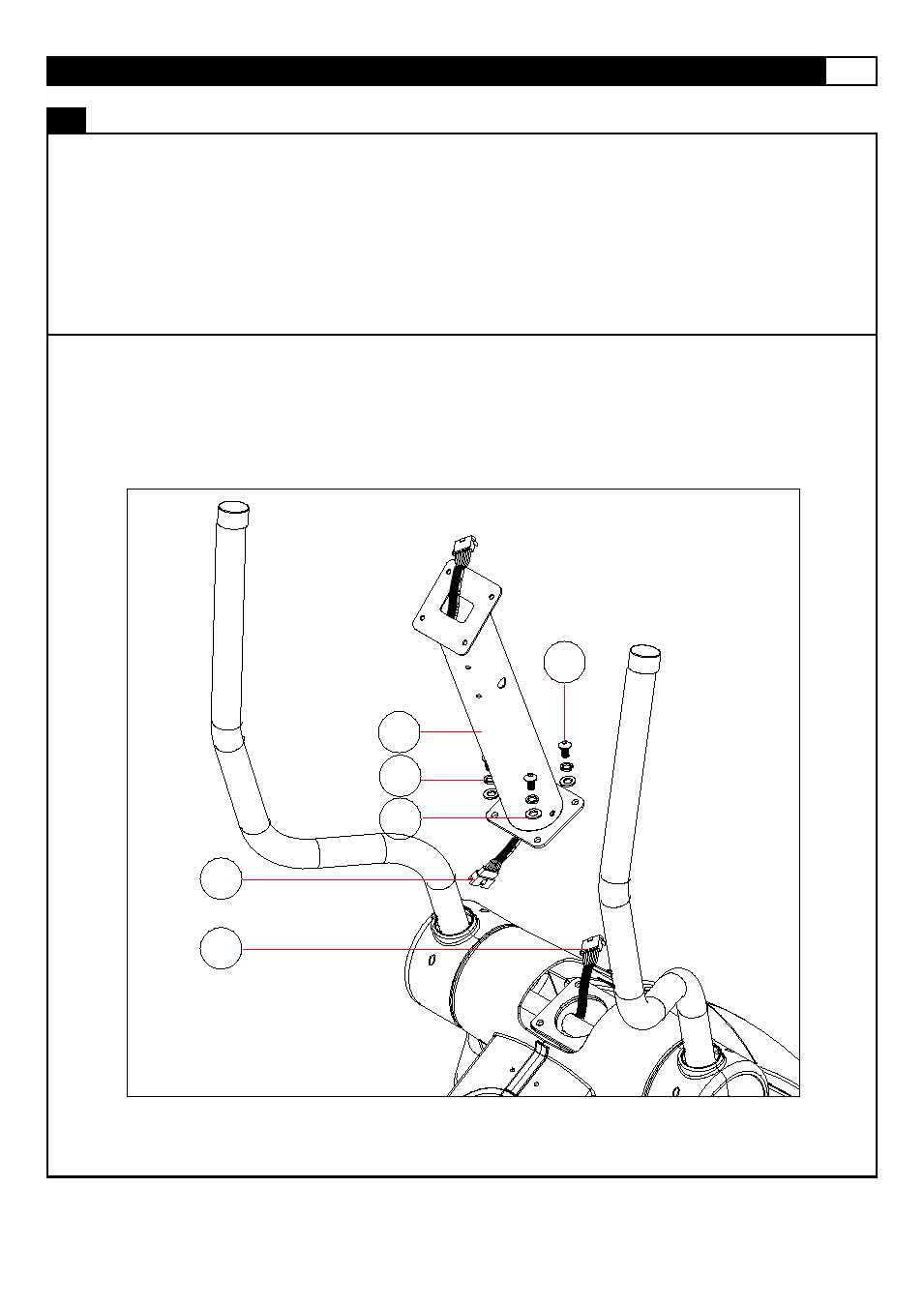

STEP 5: Attach the Console Support Tube
Caution: Pinch point. Do not pinch the wires between the frame.
(A) Connect the Computer Wire – Upper (16) to the Computer Wire –
Lower (17) (be certain that the connectors are properly connected)
(B) Push the extra computer wire in to the console support tube. Line up the 4 bolt holes on the console post
with the 4 bolt holes on the main frame. (Be certain the console support is facing the correct direction.)
(C) Secure the console support tube to the main frame with 4x M8*20 (9), M8*2.0T spring washers (15) and
OD20*ID8.5*1.5T flat washers (14)
(D) tighten all bolts now
16
9
15
14
17
10
