Assembly – Smooth Fitness CE-3.0 User Manual
Page 12
12
SMOOTH CE3.0 ELLIPTICAL TRAINER
ASSEMBLY

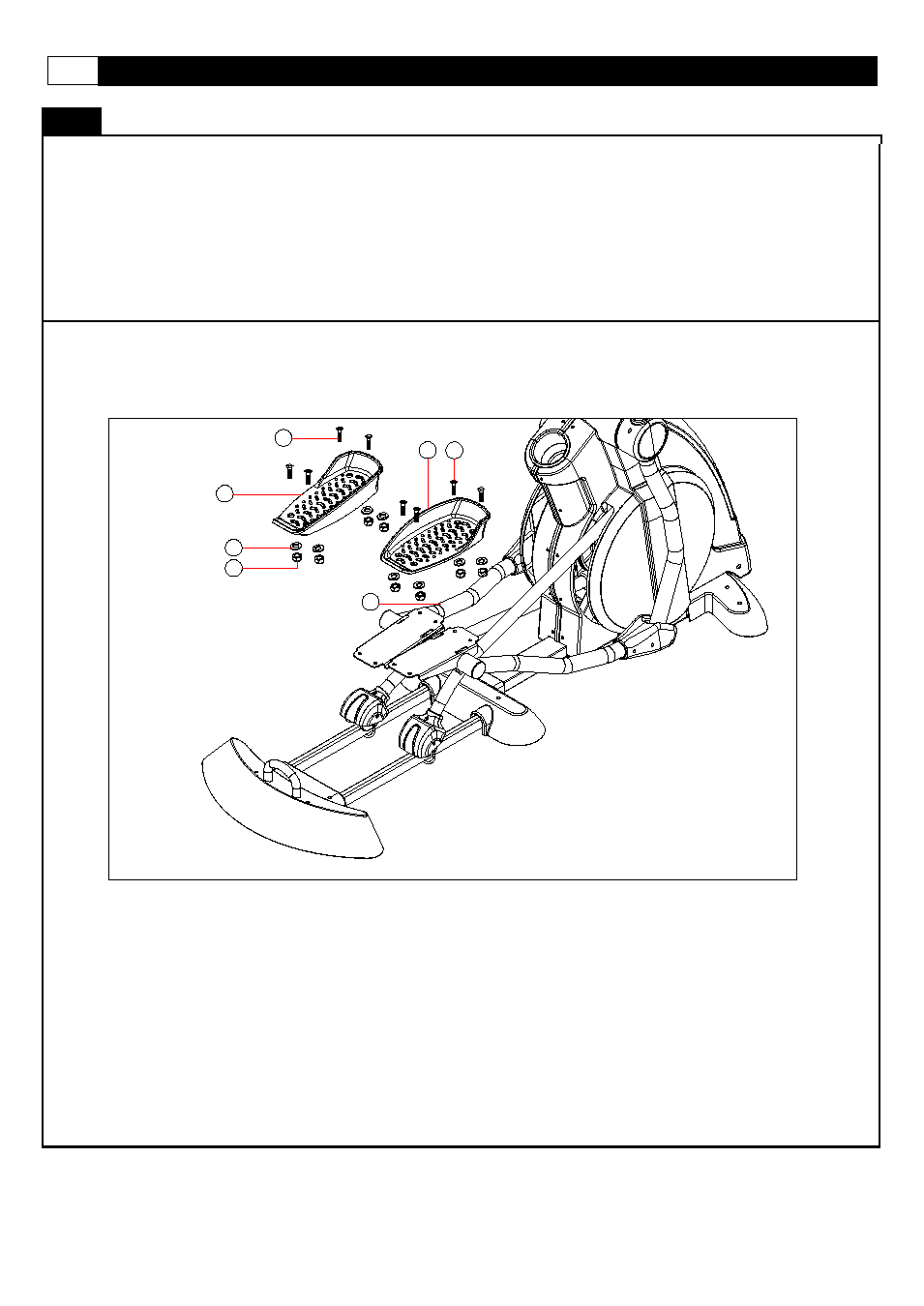

STEP 4: Attach the Left and Right Pedals
(A)
Place the right pedal on the pedal plate (located on the pedal arm). Insert the 4 x M10*25(82) bolts trough the
pre drilled holes in the pedal and the pedal plate. Then secure the bolts with 4 x OD20*ID10.5*2.0T Flat washers
(44) and 4 x M10*1.5*10T Nuts (42)
(B) Tighten all nuts and bolts now
(C) Repeat the above processes for the left side
82
100
44
42
82
83
99
