A Power Inlet – Power inlet for connecting
the option AD006 power adapter.
B PHANTOM ON / GROUND LIFT switch
- Use to switch between phantom power
or battery operation, and/or Ground Lift/
Connect.
C LINE OUTPUT - 1/4-inch jack carrying the
line-level output signal, either affected or
un-affected, depending on the Pre/Post
switch.
D PRE/POST switch – When the switch is
out, the Direct Output signal is a parallel
output of the input, with no effects. When
the switch is pressed in, the Direct Output
signal is with effects.
E DIRECT OUTPUT - XLR balanced output
connector carrying the mic-level output
signal, either affected or un-affected,
depending on the Pre/Post switch.
F PARALLEL OUTPUT - Standard 1/4-inch
output jack for sending the original signal
to an on-stage amplifier.
G INPUT – Standard 1/4-inch input jack for
connecting a passive or active bass.

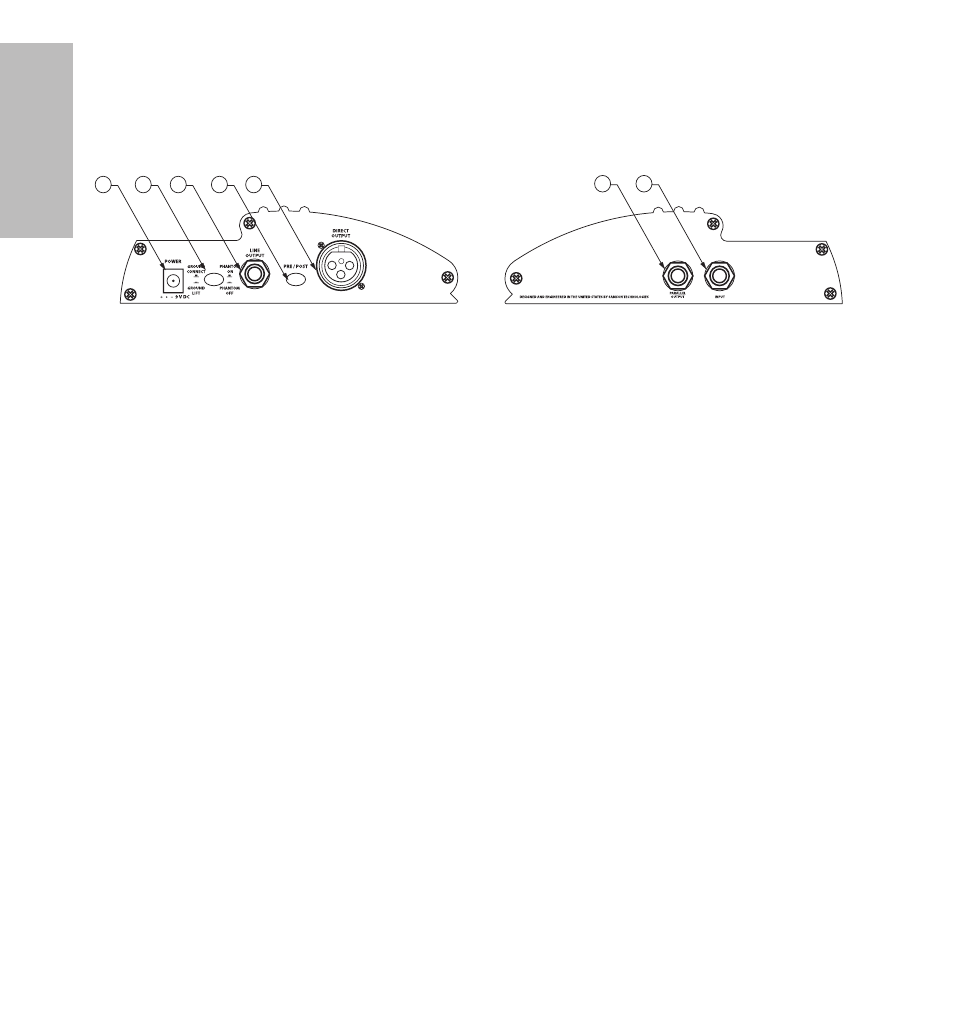

Bass Attack Side Panel Layout
