Network Camera User’s Guide
32/83
The device can directly connect to the xDSL, however, it should be setup on a LAN
environment to program the PPPoE information first, and then connect to the xDSL
modem. Power on again, then the device will dial on to the ISP connect to the WAN
through the xDSL modem.
The procedures are
• Connect to a LAN by DHCP or Fixed IP
• Access the device, enter Setting

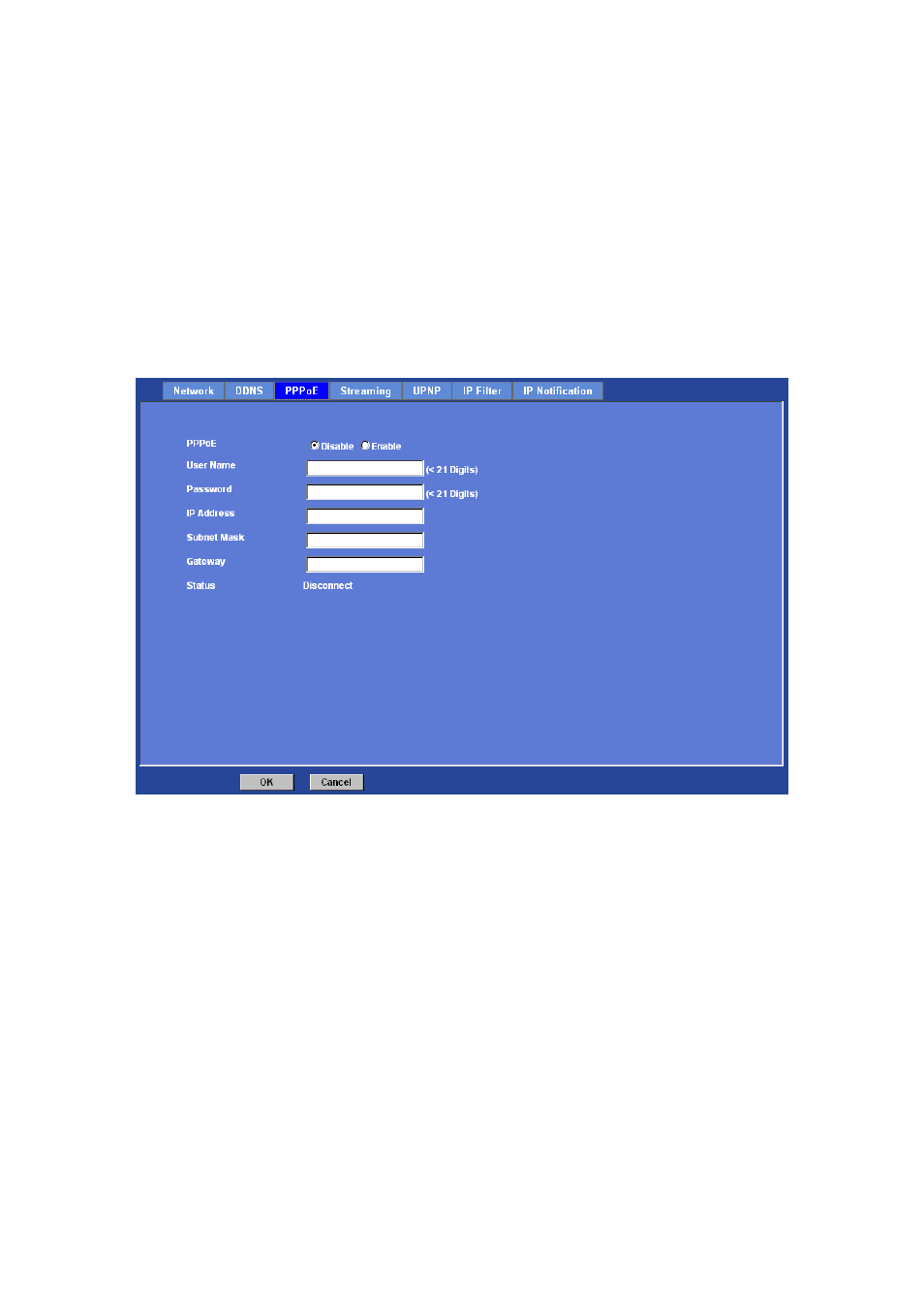

Î Network Î PPPoE as below
PPPoE:
To enable or disable the PPPoE service here.
User name:
Type the user name for the PPPoE service which is provided by the ISP.
Password:
Type the password for the PPPoE service which is provided by the ISP.
IP address, Subnet mask, and Gateway (read only):
Shows the IP information got from PPPoE server site.
Status:
Shows the Status of PPPoE connection.
