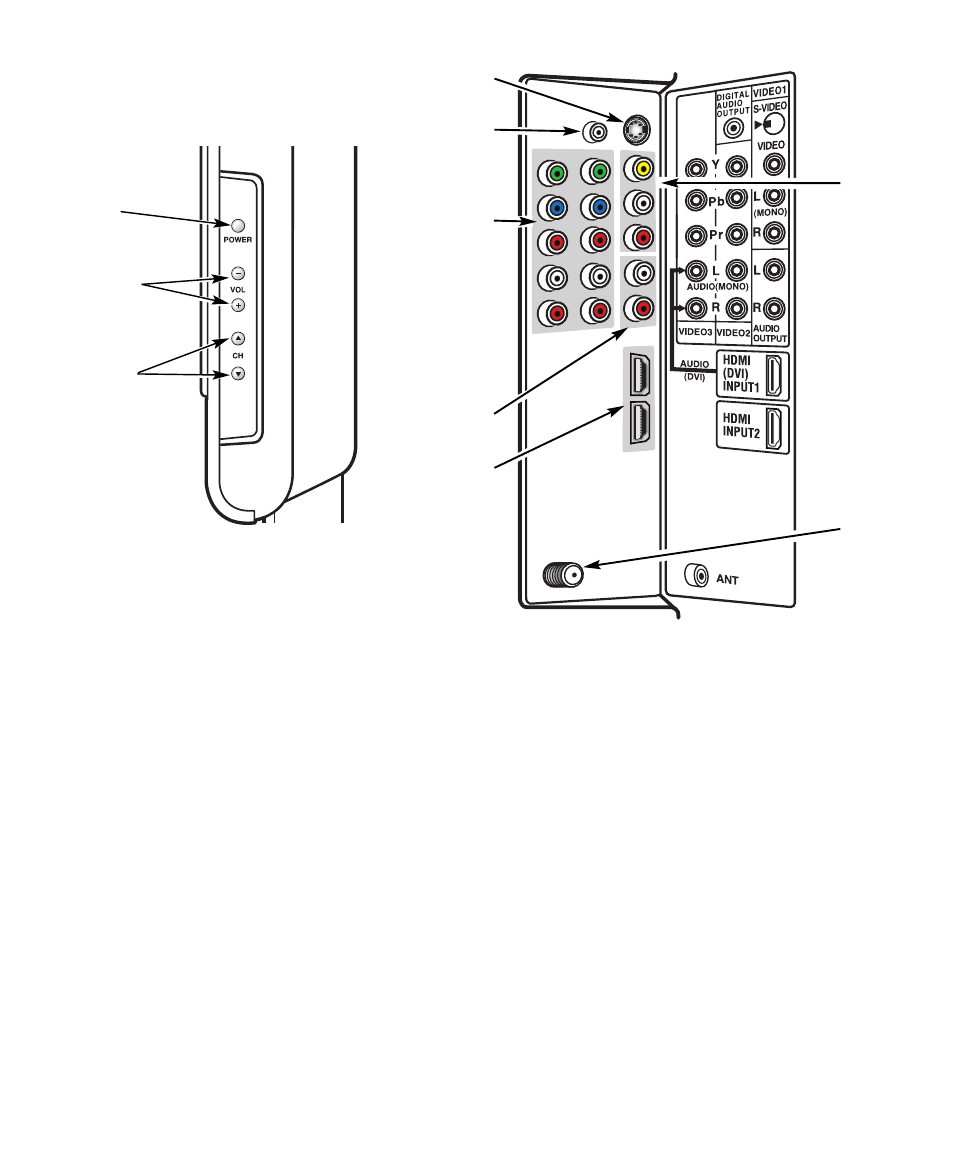

BACK LEFT/RIGHT SIDE PANELS
➀
S-Video Input (VIDEO1), PAGE 9—To enhance
video detail use the S-Video jack instead of
the Video jack, if available on your external
equipment. (S-Video connection will override a
connection to the Video input jack [VIDEO1]).
➁
Digital Audio Output, PAGE 8—Use a Phono-
Type (Coaxial) Digital Audio Out Cable to connect
Digital Audio Output to an advanced stereo home
theater system equipped with Dolby
® Digital 5.1.
➂
Component Video Input (VIDEO2 or VIDEO3),
PAGE 8—Connect digital video equipment to the
Y (green), Pb (blue), Pr (red) and Audio L / R jacks.
These jacks will automatically detect the type of
signal being received.
➃
Analog Audio Out (L/R) Jacks, PAGE 9—
Connect external audio equipment here
➄
HDMI INPUT1/2 (High-Definition Multimedia
Interface), PAGE 7—Connect digital video equip-
ment to this jack. It takes only one
high-bandwidth cable (not supplied) to communi-
cate between audio / video equipment and this
DTV. HDMI (DVI) INPUT1 jack is compatible with
DVI equipped AV devices. (Separate audio con-
nection and an adapter are required for DVI
device.)
➅
Audio/Video Input (VIDEO1), PAGES 9 ~ 10—
Connect analog video equipment here.
Note: S-Video connection overrides the (Video1) com-
posite video connection .
➆
Analog / Digital Antenna Input, PAGE 5—
Connect an RF antenna or Analog Cable system
to this jack.
LEFT SIDE PANEL
(see item 8 on page 11)
Volume
– + keys
Channel
▼▲ keys
Power
key
➁
➂
➄
➅
➀
➃
RIGHT SIDE
PANEL
➆
