• 5 •
7.3 Connect the POSITIVE (RED) charger clip to the POSITIVE (POS, P, +) post of the battery.
7.4 Position yourself and the free end of the cable you previously attached to the NEGATIVE
(NEG, N, -) battery post as far away from the battery as possible – then connect the
NEGATIVE (BLACK) charger clip to the free end of the cable.
7.5 Do not face the battery when making the final connection. As stated in 7.4, face away
from the battery when connecting the negative clip to the cable.
7.6 Connect charger AC supply cord to electrical outlet.
7.7 When disconnecting the charger, always do so in the reverse order of the connecting
procedure and break the first connection while as far away from the battery as practical.
7.8 A marine (boat) battery must be removed and charged on shore. To charge it onboard
requires equipment specially designed for marine use.
8. GROUNDING AND AC POWER CORD CONNECTIONS
RISK OF ELECTRIC SHOCK OR FIRE.
8.1

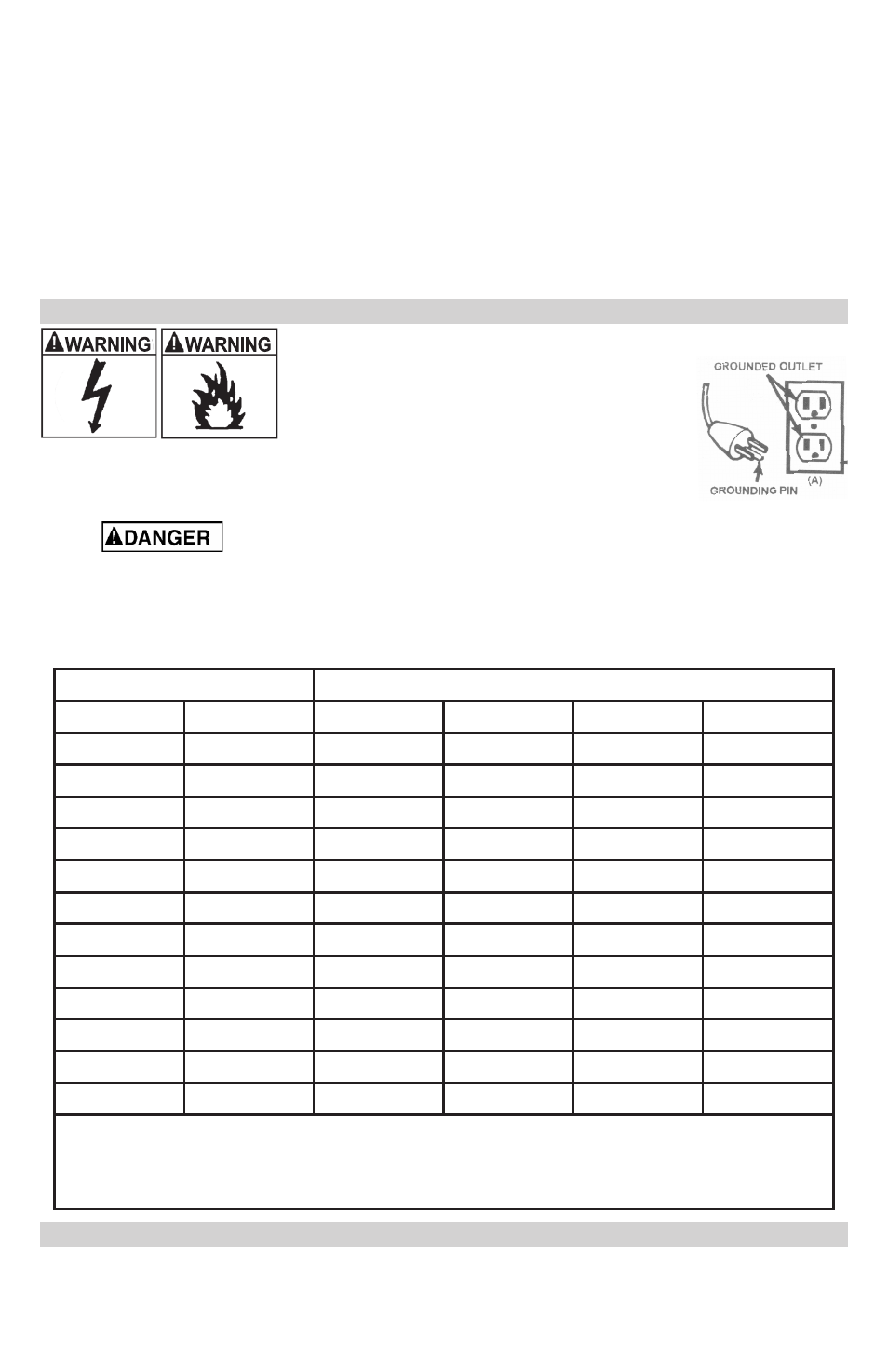

This battery charger is for use on a
nominal 120-volt circuit and has a grounded
plug that looks like the plug illustrated. The
charger must be grounded to reduce the risk of
electric shock. The plug must be plugged into
an outlet that is properly installed and grounded in accordance with
all local codes and ordinances. The plug pins must fit the receptacle
(outlet). Do not use with an ungrounded system.
8.2 Never alter the AC cord or plug provided – if it does not fit the outlet, have
a proper grounded outlet installed by a qualified electrician. An improper connection can
result in a risk of an electric shock or electrocution. NOTE: Pursuant to Canadian
Regulations, use of an adapter plug is not allowed in Canada. Use of an adapter plug in
the United States is not recommended and should not be used.
8.3 Recommended minimum AWG size for extension cord:
AC input rating, amperes* AWG size of cord, Length of cord, feet (m)
At least But less than 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.6)
0 2 18 18 18 16
2 3 18 18 16 14
3 4 18 18 16 14
4 5 18 18 14 12
5 6 18 16 14 12
6 8 18 16 12 10
8 10 18 14 12 10
10 12 16 14 10 8
12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8
18 20 14 12 8 6
*If the input rating of a charger is given in watts rather than in amperes, the corresponding
ampere rating is to be determined by dividing the wattage rating by the voltage rating –
for example:
1200 watts/120 volts = 10 amperes
9. ASSEMBLY INSTRUCTIONS
9.1 It is important to fully assemble your charger before use. Remove all cord wraps and
uncoil the cables prior to using the battery charger. Follow these instructions for assembly.
