8
CONVERSIONS
Disconnect the appliance from the mains supply
prior to any conversions being carried out.
7) CHANGING THE TYPE OF POWER
SUPPLY
Although they leave our factory preset for single-
phase connection, certain appliances may by
converted to the threephase system.
Comply with the following instructions:
a) Remove the hotplate from the top of the cabinet,
overturn it, unscrew screw "Z" and remove under
part (see fig. 9).
b) Shift connecting plate on terminal according to
the following chart. This chart is also affixed to the
hob.
c) Insert a supply cable of adequate section (see
chart par. 10) through core hitch on the terminal
board.
d) Connect the phase and earth wires to the relative
terminal board.
e) Fix the supply cable in place using clamp.
f) Refit the hotplate, complying with the above
instructions in reverse.

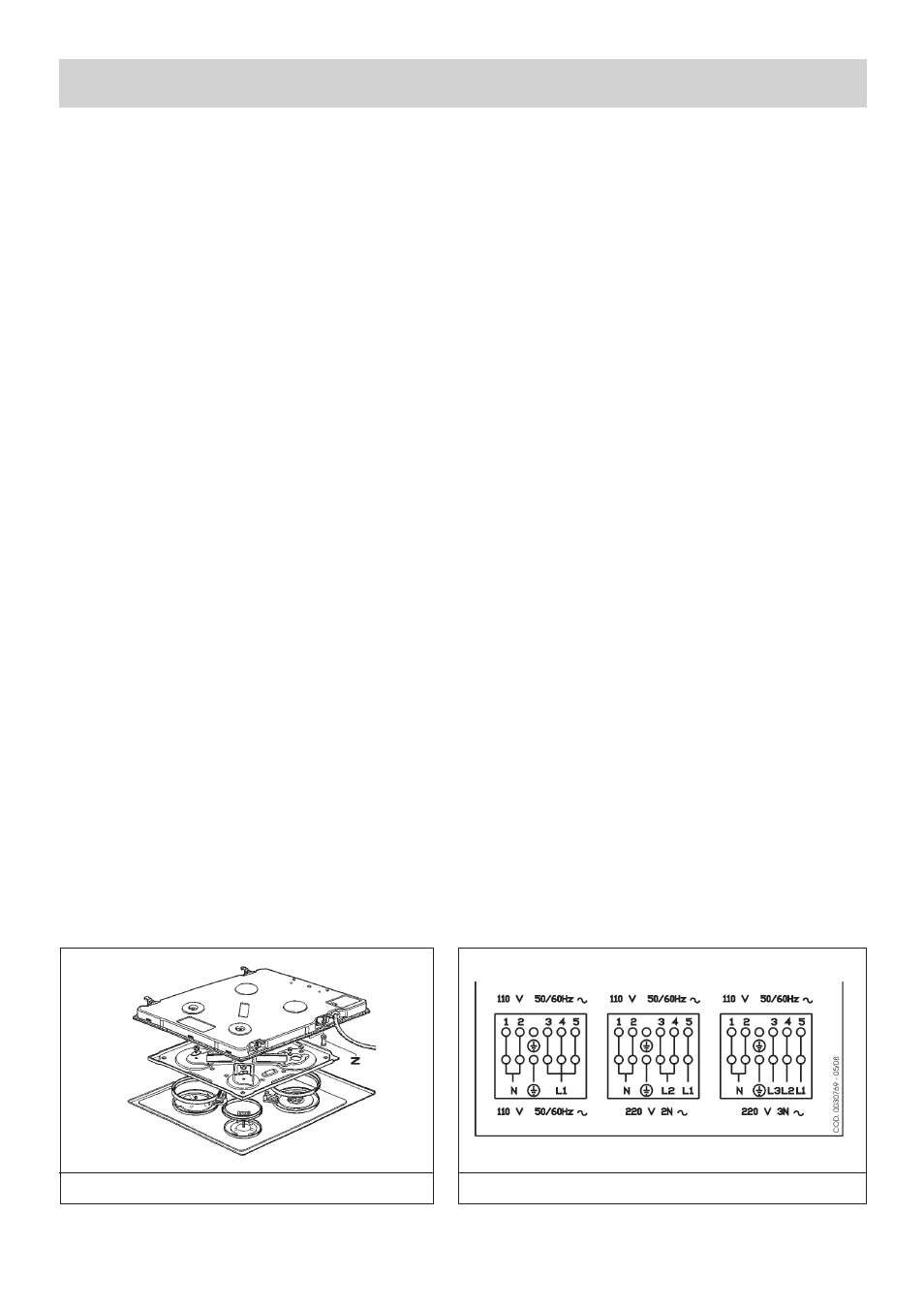

FIG. 9 FIG. 10
