Barracuda 50 Installation Guide, Rev. A

31

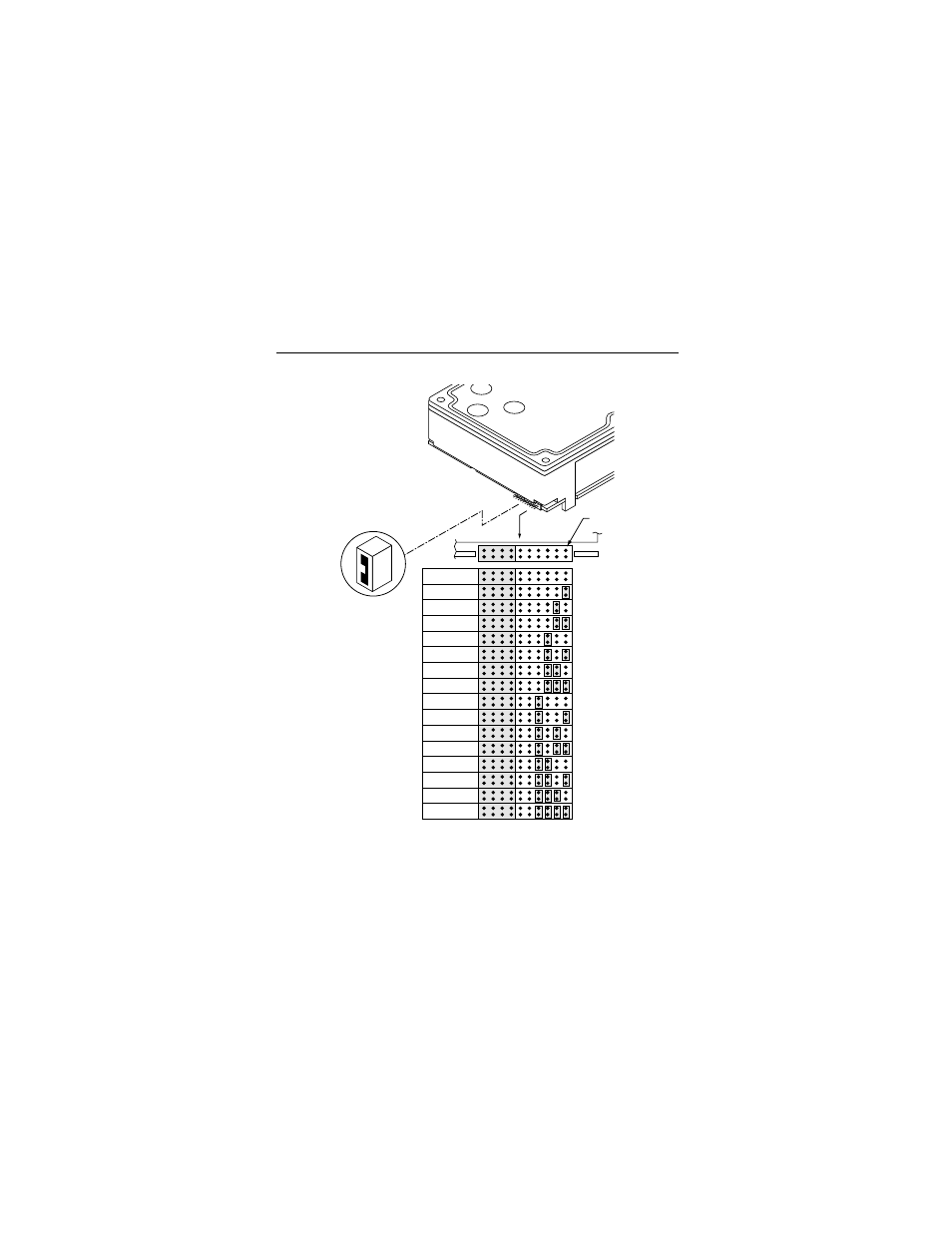

Figure 12. Setting the SCSI ID on ST150176LC drives

SCSI ID = 0

Jumper Plug

(enlarged to
show detail)

J6

Drive
Front

Pin 1

[1]

SCSI ID = 1

SCSI ID = 2

SCSI ID = 3

SCSI ID = 4

SCSI ID = 5

SCSI ID = 6

SCSI ID = 7

SCSI ID = 8

SCSI ID = 9

SCSI ID = 10

SCSI ID = 11

SCSI ID = 12

SCSI ID = 13

SCSI ID = 14

SCSI ID = 15
