FUNCTION OVERVIEW

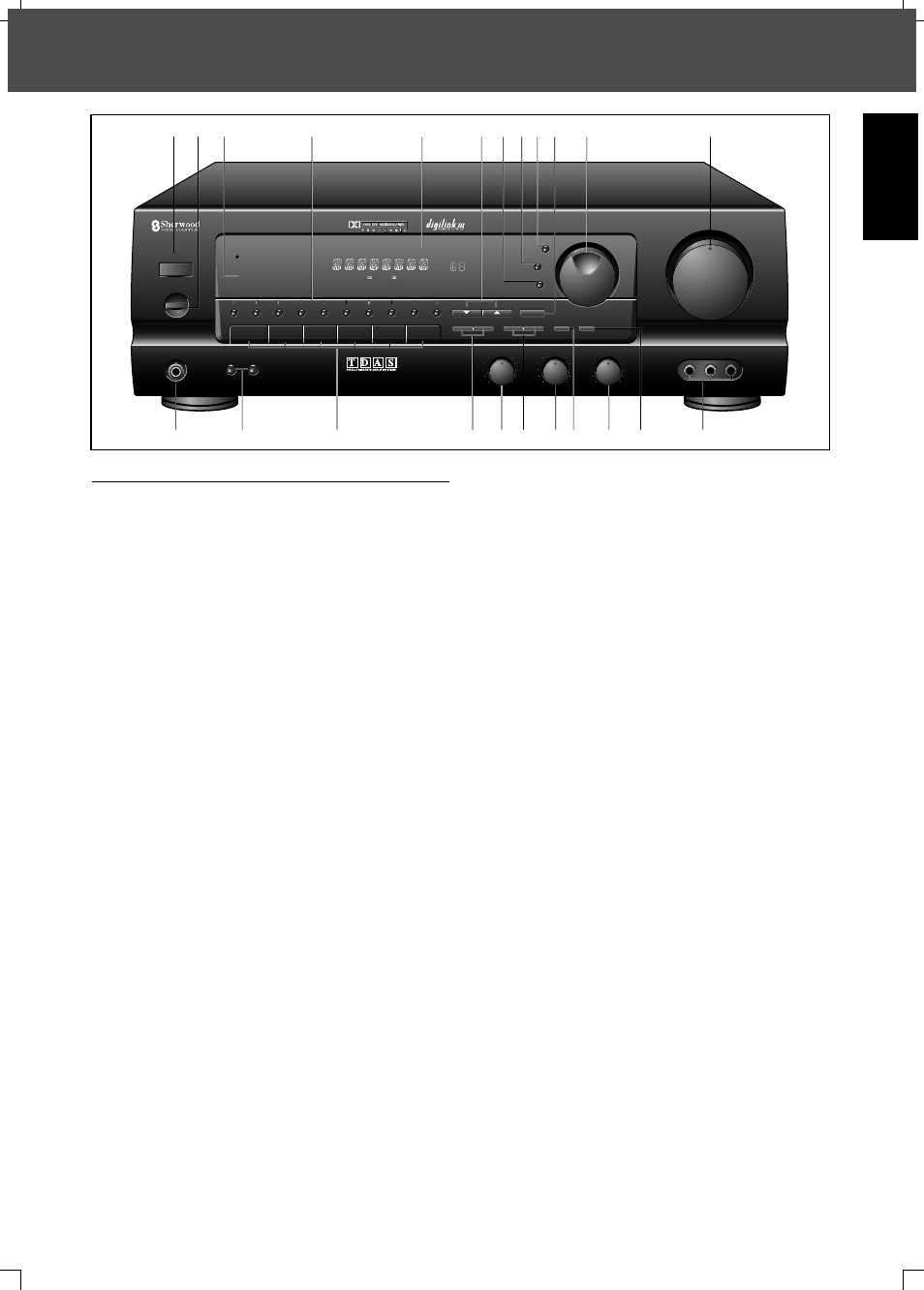

FRONT PANEL
1
1.POWER BUTTON
For switching power on and switching on to STANDBY.
1
2.SLEEP BUTTON
For setting a time period after which the system will
automatically be switched to standby.
1
3.PHONES
For connecting headphones.
Turn A and B SPEAKER switches off for private listening.
1
4.SPEAKERS A, B SELECTOR SWITCHES
Press A or B switche to turn on either pair of speakers.
Press A or B switches to turn on both pairs of
speakers.
Note : If the A and B switches are both on, a reduction of
the main volume may be experienced and if only one pair
of speakers is connected, no sound will be heard.
1
5.REMOTE SENSOR
Infrared remote control sensor for receiving signals from
the remote control.
1
6.0–9 DIGIT BUTTONS
For selecting stations in frequency direct mode and for
preset tuning in tuner mode.
1
7.SURROUND MODE BUTTONS
For selecting the surround mode.
OFF, DOLBY PRO LOGIC, DOLBY 3 STEREO,
THEATER, HALL, SIMULATED
1
8.FLUORESCENT DISPLAY
Informs you about the function of the receiver.
1
9.TUNING
/
BUTTONS
For adjusting the station frequency.
10.DIRECT BUTTON
Allows you to find the satation freguency you want
directly.
FRONT
11.MEMORY BUTTON
For storing preset stations.
12.FM MODE BUTTON
For selecting STEREO or MONO operation in FM mode.
13.BAND BUTTON
For selecting FM or AM.
14.INPUT SELECTOR
For selecting the desired audio or video source.
15.REAR LEVEL –/+ BUTTONS
For adjusting the rear speaker volume in relationship to
the MASTER VOLUME in DOLBY PRO LOGIC,
THEATER, HALL and SIMULATED modes.
16.CENTER LEVEL –/+ BUTTONS
For adjusting the center speaker volume in relationship
to the MASTER VOLUME only in DOLBY PRO LOGIC
and DOLBY 3 STEREO modes.
17.CENTER MODE BUTTON
For selecting the desired center mode (NORMAL, WIDE
or PHATOM).
18.BASS CONTROL
For adjusting the bass tones.
19.TREBLE CONTROL
For adjusting the high tones.
20.BALANCE CONTROL
For adjusting the balance of the volume between the left
and right channel.
21.TAPE MONITOR BUTTON
For monitoring the sound of recording or playback of a
cassette deck as a listening source.
22.MASTER VOLUME CONTROL
For adjusting the main volume.
23.VCR 2/CAMCORDER AUDIO/VIDEO INPUT
Connections for an extra VCR, camcorder, video game
player or DSS system.
The audio jacks may also be used for an extra audio
source like a CD player or cassette deck.
5
POWERT
SLEEP
PHONES
SPEAKERS
BASS
TREBLE
BALANCE
INPUT SELECTOR
MASTER VOLUME
LEFT
RIGHT
+10
-10
+10
-10
A
B
OFF
THEATER
HALL
SIMULATED
VCR 2 / CAMCORDER
INPUT
VIDEO
L
_
_
R
AUDIO
STANDBY
REMOTE SENSOR
- CENTER LEVEL +
- REAR LEVEL +
CENTER MODE
TAPE MONI
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
DOLBY
PRO-LOGIC
DOLBY
3 STEREO
AUDIO/VIDEO RECEIVER R-325
POWERT
SLEEP
PHONES
SPEAKERS
BASS
TREBLE
BALANCE
INPUT SELECTOR
MASTER VOLUME
LEFT
RIGHT
+10
-10
+10
-10
A
B
OFF
THEATER
HALL
SIMULATED
VCR 2 / CAMCORDER
INPUT
VIDEO
L
_
_
R
AUDIO
STANDBY
MULTI ROOM
MULTI ROOM
REMOTE SENSOR
- CENTER LEVEL +
BAND
BAND
FM MODE
FM MODE
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
0
0
TUNING
TUNING
DIRECT
DIRECT
MEMORY
MEMORY
- REAR LEVEL +
CENTER MODE
TAPE MONI
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
DOLBY
PRO-LOGIC
DOLBY
3 STEREO
AUDIO/VIDEO RECEIVER R-325
1
2
5
6
8
9 11 12 13 10
14
22
15
18 16
19 17
20 21
23
7
4
3
ST
TUNED AUTO VCR12
TAP M
PRESET
Pro Logic
3 Stereo
THEATER HALL
SLEEP
dB
kHz
MHz
MEM
ms
ST
TUNED AUTO VCR12
TAPE M
PRESET
Pro Logic
3 Stereo
THEATER HALL
SLEEP
dB
MHz
MEM
ms
kHz
ENGLISH
