22

Barracuda LP Series SATA Product Manual, Rev. C

3.4

Drive mounting

You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 3 for drive mounting dimensions. Follow these important mounting precau-
tions when mounting the drive:

• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes.

• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).

Recommended
case temperature
measurement location

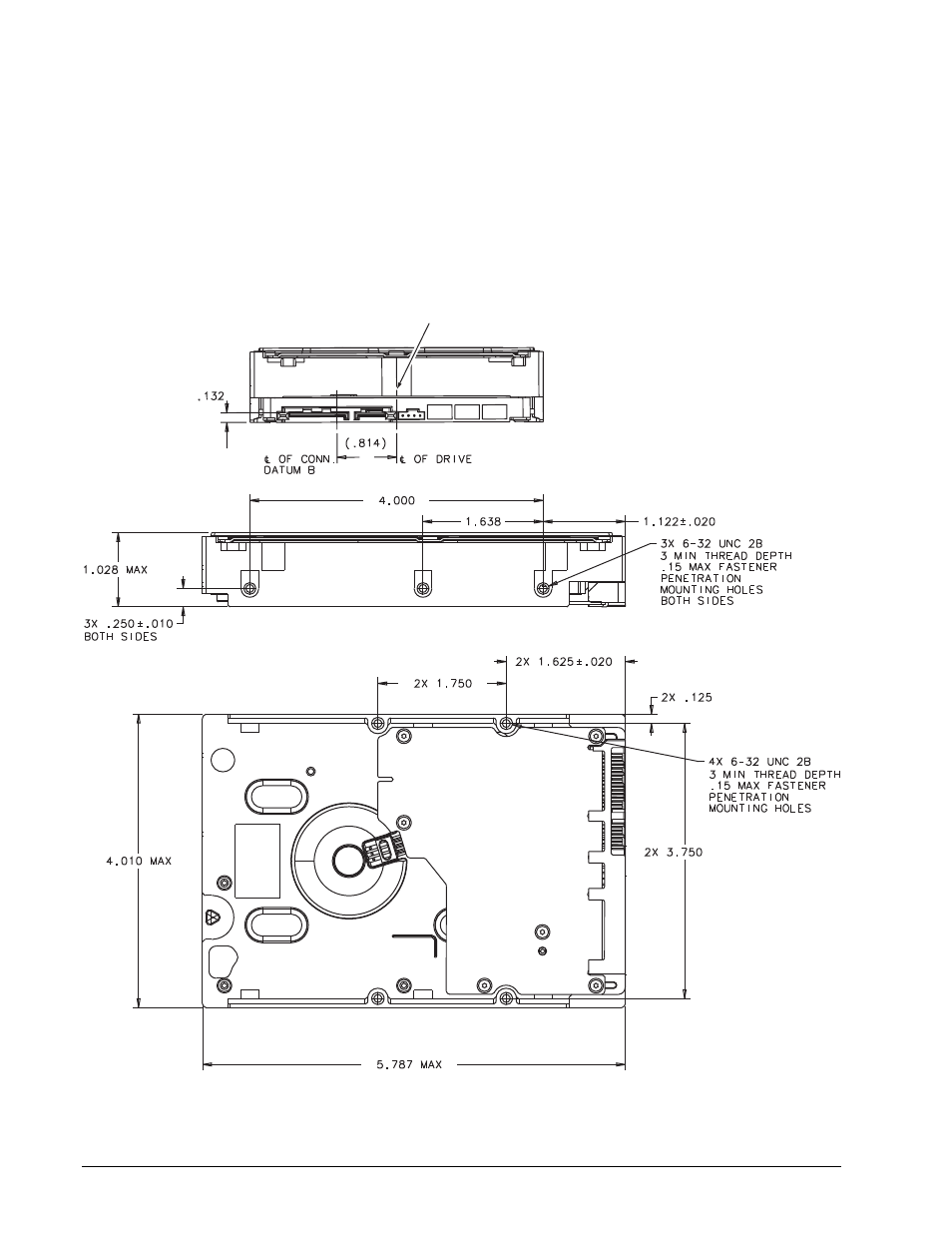

Figure 3. Mounting dimensions (2.0, 1.5 and 1.0 TB models)
