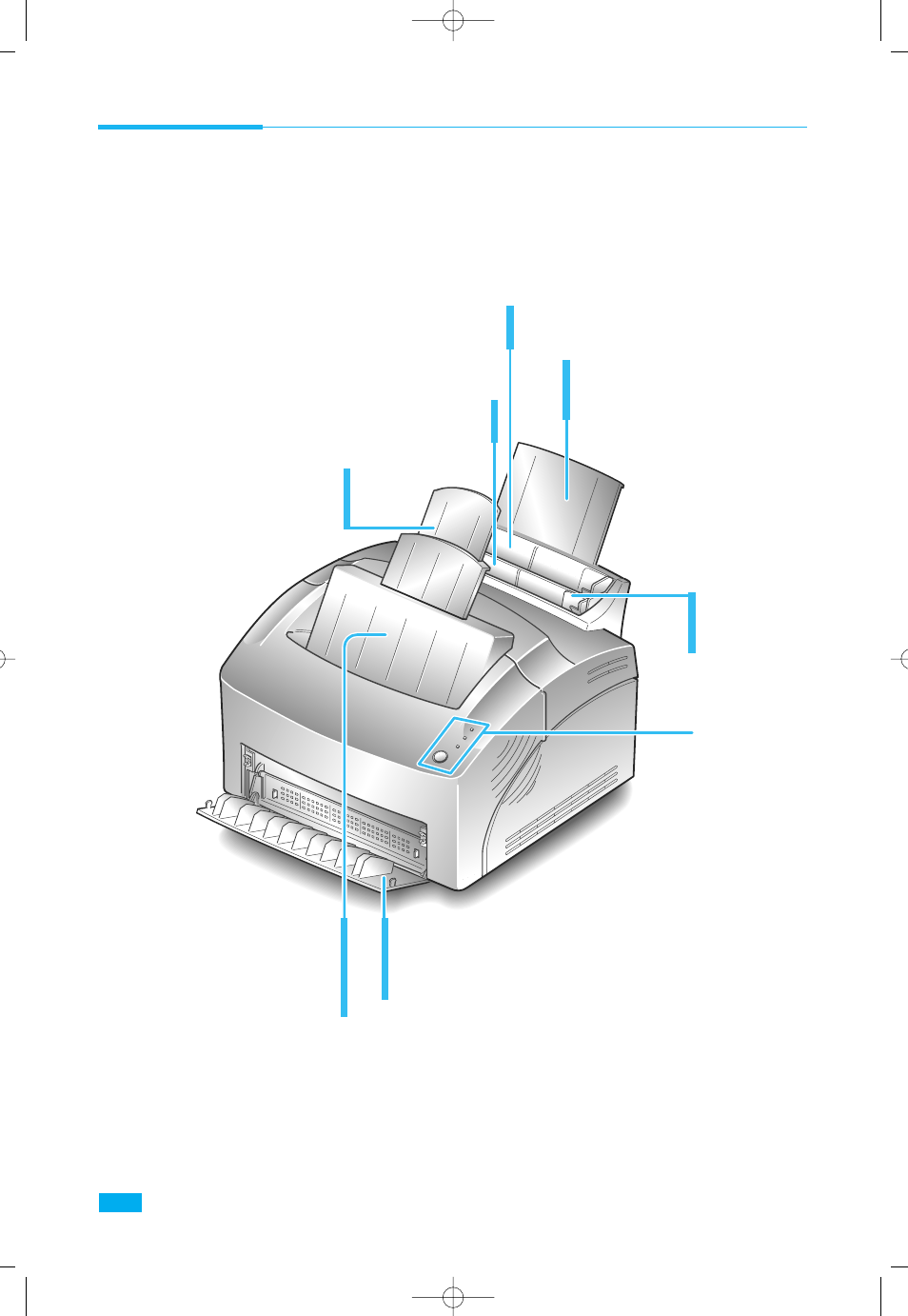

Control Locations and Functions

Front View

Set Up

Automatic Paper Feeder

Holds 150 sheets of paper.

Paper Guides
Adjust to the
width of paper.

Face-down Stacker

Holds printed documents.

If printed on plain paper,

a maximum of 100 sheets

can be held.

Stacker Extender

Supports paper stacked in the

paper output bin.

Face-up Stacker
Holds a single sheet of special media (transparency,
label, envelope, and heavy weight paper) with print
side facing up.

Operator Panel

Tray Extender
Supports paper stacked in the
automatic paper feeder.

Manual Paper Feeder

Used to feed a single sheet of paper.
