ENFORCER Wireless Request-to-Exit Plates
SECO-LARM U.S.A., Inc 3 SECO-LARM U.S.A., Inc.
33 3

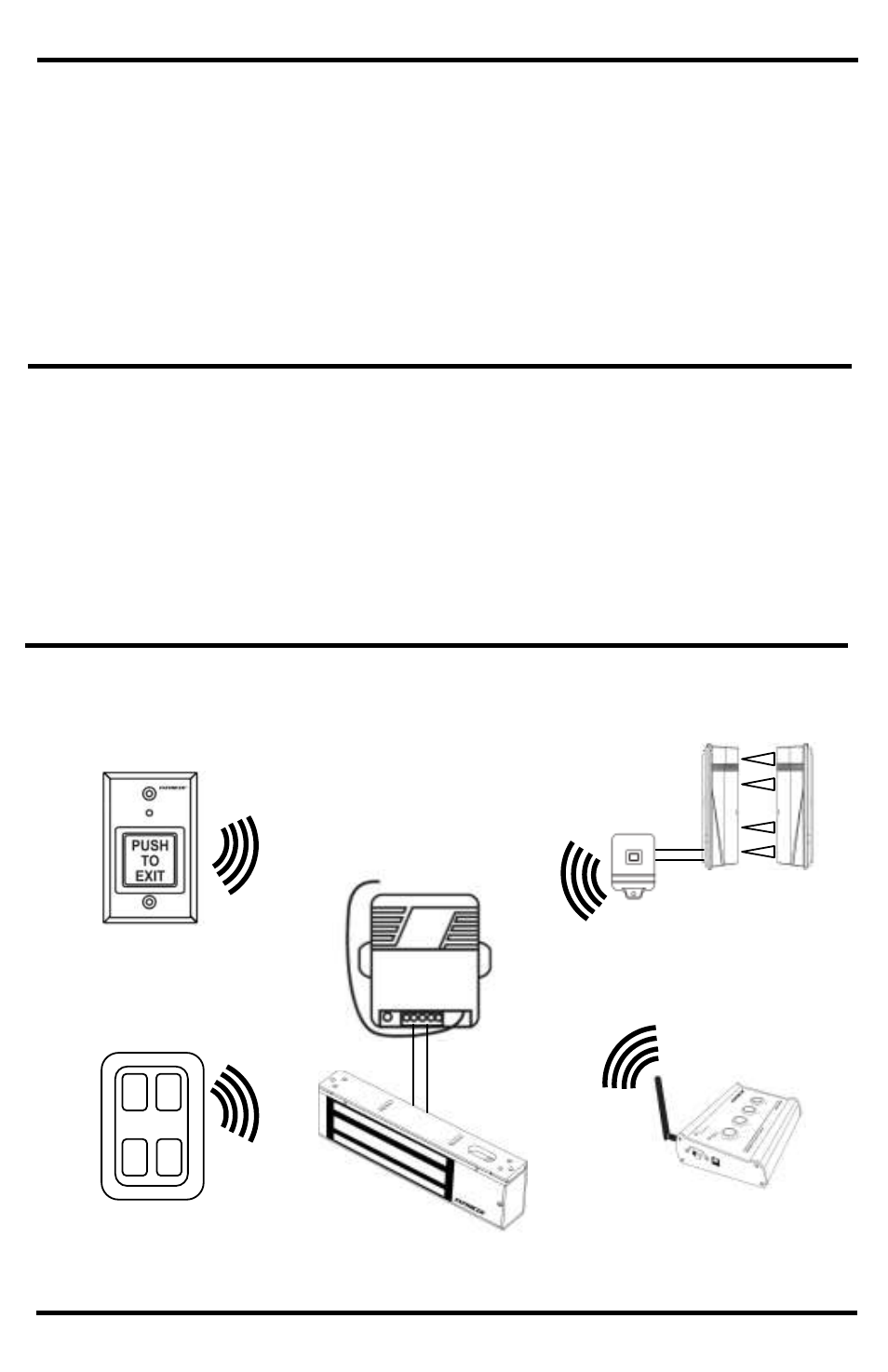

Sample Application: Connecting to multiple wireless devices to an
Electromagnetic Lock:
Installation:
1. Find a suitable location for the wireless request-to-exit plate.
NOTE: Do not house the plate in a metal box, this will greatly reduce the range.
2. The wireless request-to-exit plate can be either surface mounted or flush mounted.
3. Test the operation of the wireless request-to-exit plate in the location where it will be installed.
NOTE: The wireless request-to-exit plate first needs to programmed into the SK-910R
receiver before testing. See SK-910R receiver manual for transmitter learning procedure.
4. Check and make sure the battery clip is securely connected. Then mount the wireless request-
to-exit plate in the back-box and secure it with the 2 included screws.
SD-8202GT-PEQ
Wireless
Request-to-Exit Plate
E-964-Q660Q
Quad Photobeam
Detectors
SK-919TP4H-N
Hand-held 4-Button
Transmitter
SK-919TP4D-P
Wireless 4-Button
Desktop Transmitter
Changing the Battery:
The wireless request-to-exit plate has multi-colored LED that illuminates blue when the button is
pressed. When the battery begins to run low, the LED will illuminate red. To change the battery:
1. Remove the 2 screws from the front of the plate and remove the plate from the back-box.
2. Remove the battery clip from the 9V battery and remove the battery from the bracket.
3. Place the new battery in the bracket and snap the battery clip to the new battery.
4. Test the unit with the new battery. The LED should illuminate blue.
5. Put the plate back in the housing and secure it to the back-box using the screws on the front.
SK-919TDWS-BU
Wired 1-channel
Transmitter
ENFORCER
1 2
3 4
SK-910R
Wireless Receiver
E-941SA-1200
Electromagnetic Lock
Red=Low Battery
