14
ID# M316001 01/07

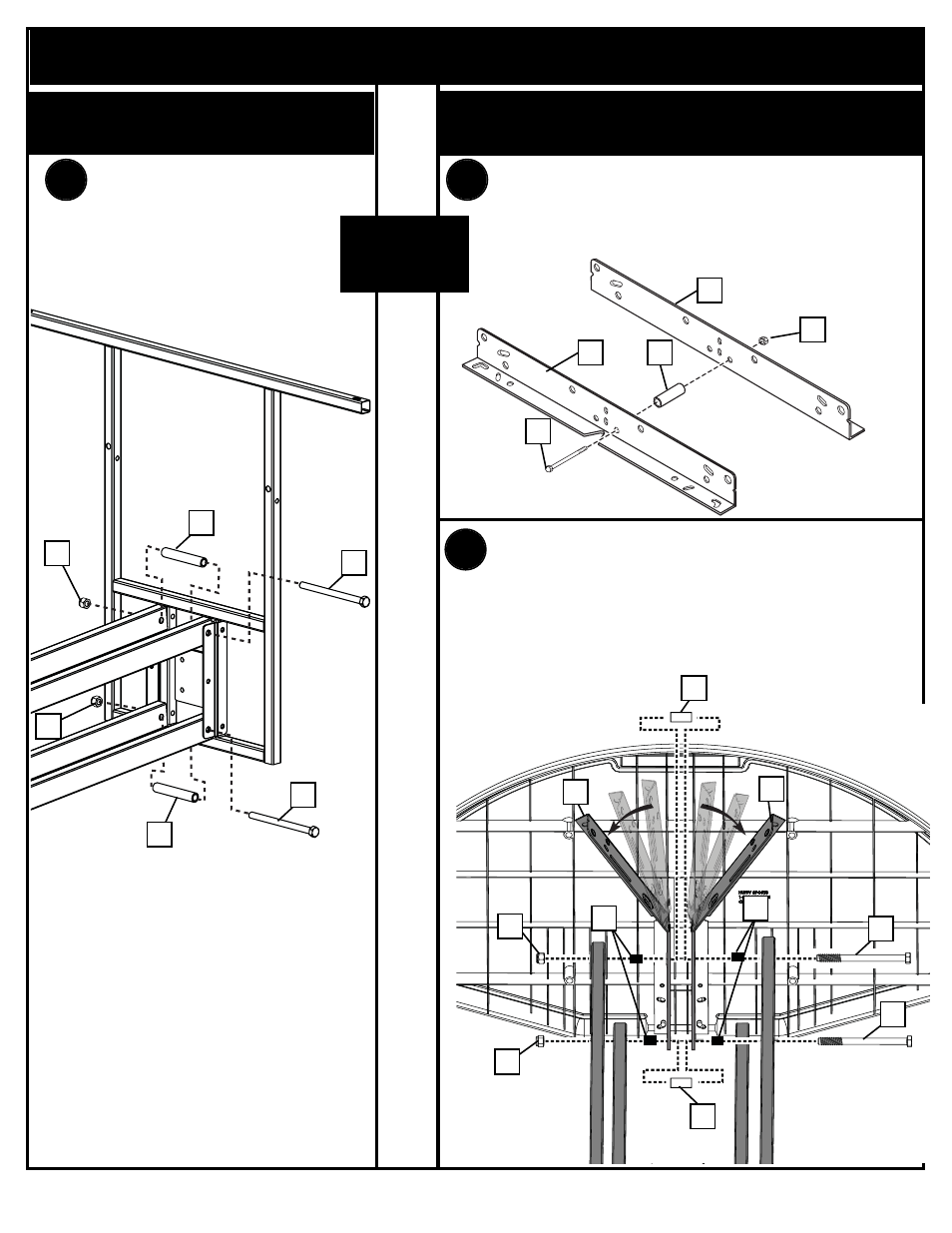

ATTACH AN H-FRAME STYLE
BACKBOARD (STYLE WILL VARY)
ATTACH A COMPOSITE STYLE BACKBOARD
(STYLE WILL VARY)
16
6
6
8
8
16
1. 1.
BACKBOARD MOUNTING
Attach backboard using hardware
shown.
Folow instructions that are
packaged with backboard for
specific assembly details.
4
13
20
20
5
2.
8 6
25
20 20
25
6
8
15
15
Attach backboard using hardware shown.
Bend support brackets (20) to line up with upper holes
in backboard.
Folow instructions that are packaged with backboard
for specific assembly details.
Assemble backboard brackets (20) using bolt (5)
spacer (4) and nut (13) as shown.
Folow instructions that are packaged with backboard
for specific assembly details.
OR
