Smooth Fitness ELLIPTICAL CE-3.6 User Manual
Page 21
www.smoothfitness.com
21
ASSEMBLY
STEP 7:

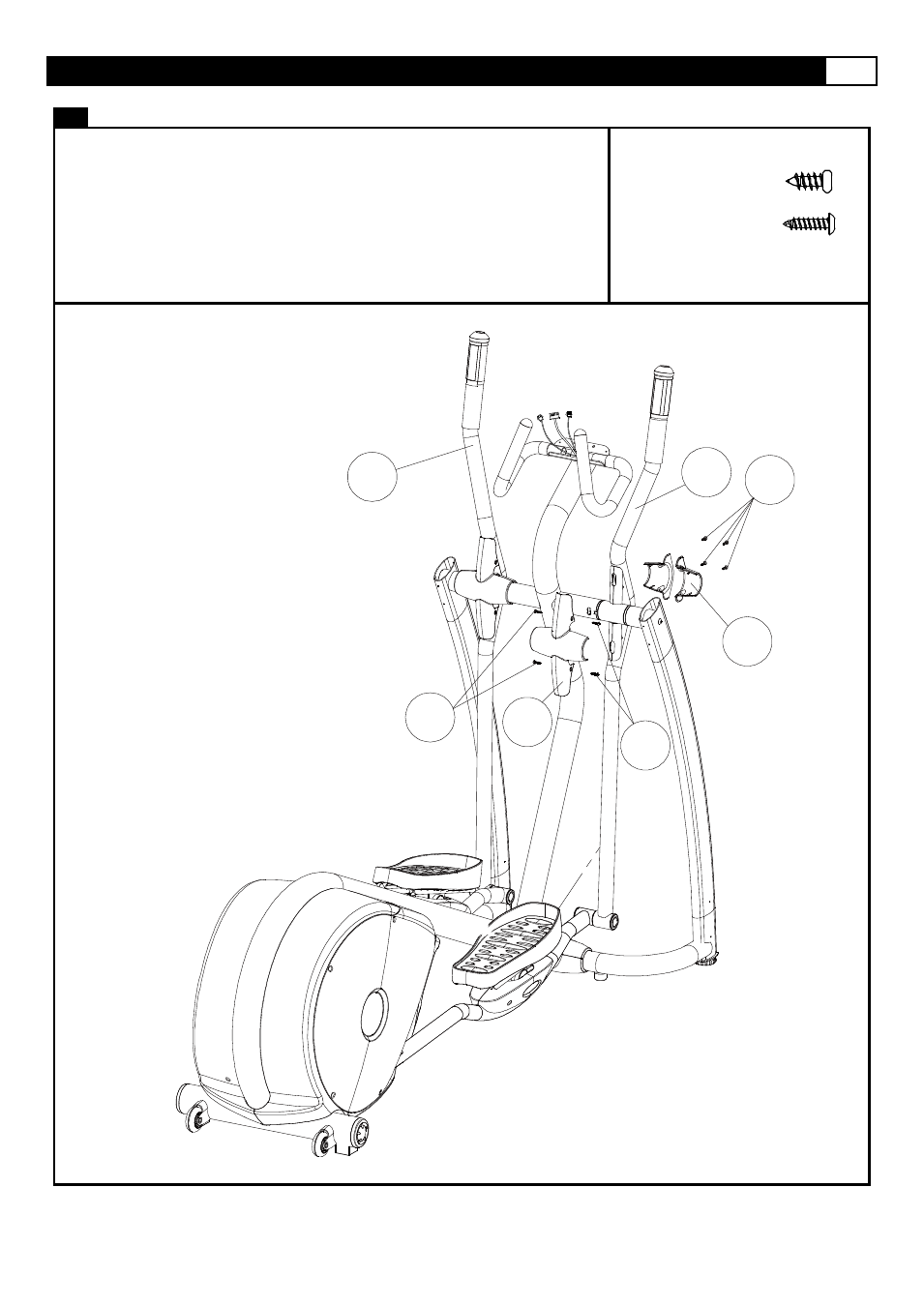

(A) Attach the Action Handlebar Cover (315) to the front side of Action
Handlebar – Right (302) and secure with four 4x15mm Screws (732).
Then attach two Action Handlebar Inside Covers (316) from the back side
of the Action Handlebar – Right (302) to the Action Handlebar Cover
(315). Secure the Action Handlebar Inside Covers using four 4x12mm
Screws (728). Repeat the procedure on the Action Handlebar – Left.
728
X8
732
X8
732
315
732
301
302
316
728
