ASSEMBLY
STEP 1:

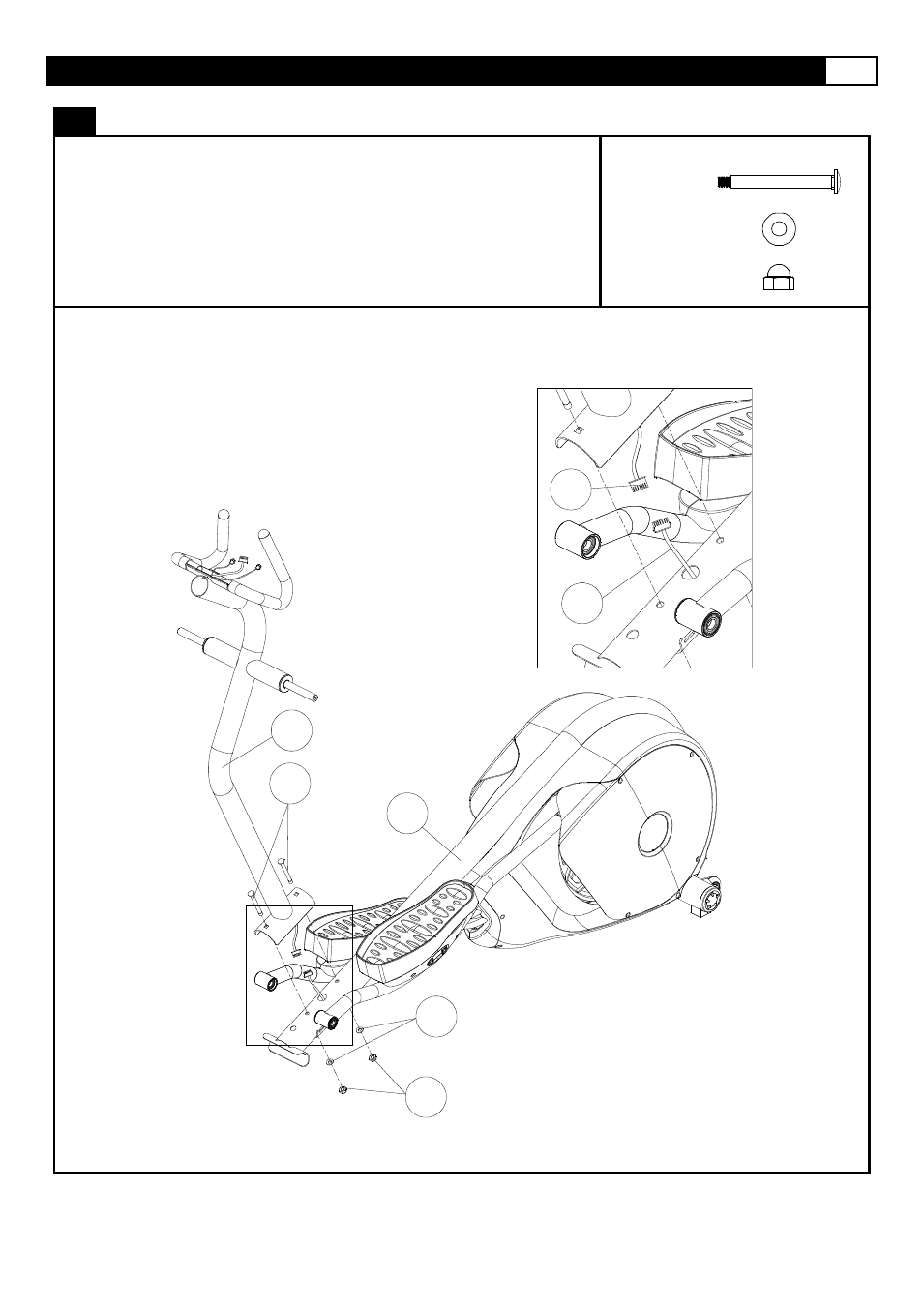

(A) Connect the 7pin Computer Wire – Middle (204) to the 7pin Computer
Wire – Lower (522).
(B) Attach the Console Support Upright (201) to the Main Frame (501) and
secure using the M10x94mm Bolt (709), 10.5x28x2mm Cup Washer
(731) and M10 Nut (729).
709 X2
731 X2
729 X2
729
731
501
709
201
204
522
