SysKonnect SK-9Exx/9Sxx Gigabit Ethernet Server Adapters
LED Displays
25
LED Displays
Once the driver has been installed, the adapter is operational. The current status and speed are in-
dicated by the LEDs.
Adapter Variant 1

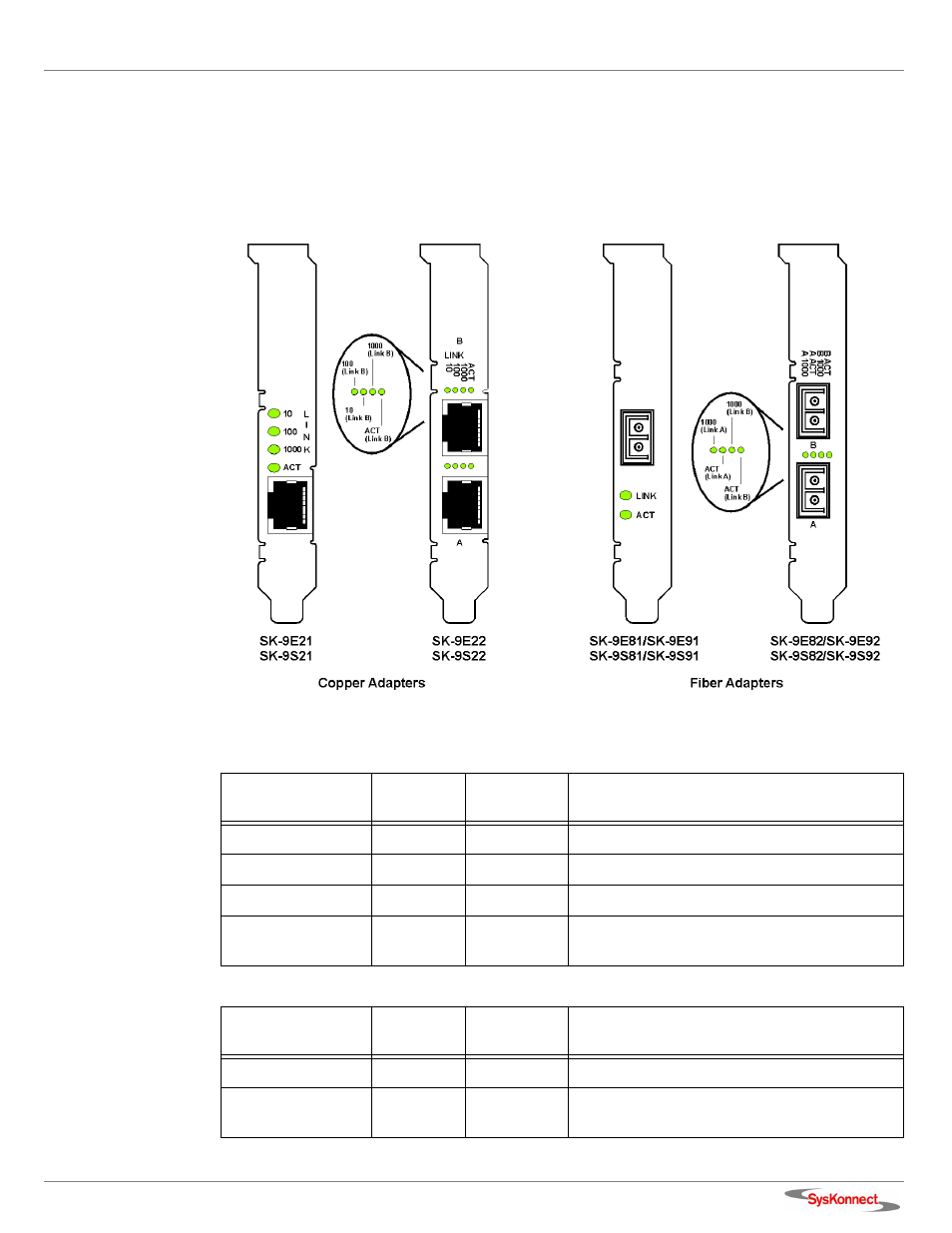

Figure 4. Location of the LEDs (adapter variant 1)
The LEDs of the copper adapters variant 1 have the following meaning:
The LEDs of the fiber adapters variant 1 have the following meaning:
Marking on
bracket
Color
Status
Description
10
green
ON/OFF
Link up/down, speed 10 Mbit/s
100
green
ON/OFF
Link up/down, speed 100 Mbit/s
1000
green
ON/OFF
Link up/down, speed 1000 Mbit/s
ACT
green
ON/OFF
Receiving/Transmitting /
Not Receiving/Not Transmitting
Marking on
bracket
Color
Status
Description
1000/LINK
green
ON/OFF
Link up/down, speed 1000 Mbit/s
ACT
green
ON/OFF
Receiving/Transmitting /
Not Receiving/Not Transmitting
