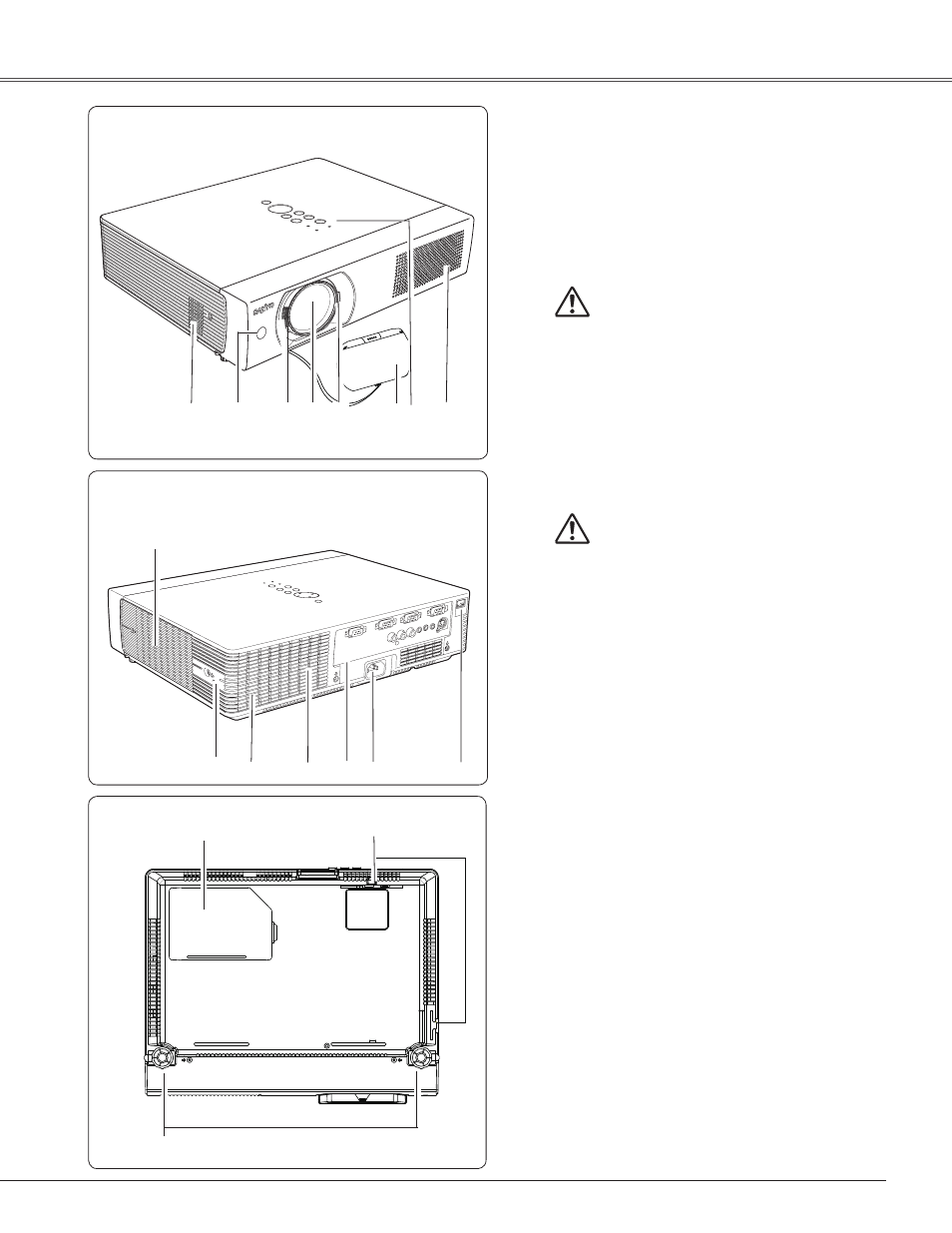

Part Names and Functions
Bottom
Back
⑮
⑬ ⑪ ⁄ ⑫ ⑨ ⑩
Front
⑯
⑥ ③ ④ ⑤ ① ⑦ ②
⑧
€ Kensington Security Slot
This slot is for a Kensington lock used to deter theft
of the projector.
⁄ Kensington is a registered trademark of ACCO Brands
Corporation.
① Infrared Remote Receiver
② Focus Ring
③ Projection Lens
④ Zoom Lever
⑤ Lens Cap
(See page 64 for attaching.)
⑥ Top Controls and Indicators
⑦ Air Intake Vent
⑧ Exhaust vent
⑨ Speaker
⑩ Air Intake Vent (back)
⑪ Terminals and Connectors
⑫ Power Cord Connector
⑬ LAN Connection Terminal
⑭ Lamp Cover
⑮ Filters
⑯ Adjustable Feet
CAUTION
Hot air is exhausted from the exhaust vents.
Do not put heat-sensitive objects near this
side.
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.
⑦
⑭
P
Note:
⑬ LAN Connection Terminal is for the Network
function. Refer to the owner’s manual of “Network
Set-up and Operation” .
