Model 5398-21
Gas Sample Draw Panel
Sierra Monitor Corporation 1991 Tarob Court Milpitas, CA 95035 USA (408) 262-6611 (800) 727-4377 Fax: (408) 262-9042
Visit our Web site: www.sierramonitor.com
E-Mail:
© 2012 by Sierra Monitor Corporation
Specifications:
Power:
110 VAC @ 1 amp
Pump:
Oil Free, Diaphragm Type
Maximum Sample Draw:
600 feet (183m) total length with 1/4” tubing
Flow Rates:
0-500 cc/min. Adjustable sample to sensor
Maximum Operating Pressure:
20 PSIG
Temperature: 32
o
– 110
o
F (0
o
– 43
o
C)
Controls:
3-way valve for Run and Calibration
Outputs:
Dry contact pump flow failure switch
(contacts closed when flow is detected, open for alarm)
Filter:
Coalescing filter for moisture knock-out
Tubing Connections:
1/4" Tube Fittings for connection of:
- sample line
- sample exhaust
- calibration gas
- bypass exhaust
Enclosure type:
NEMA 4X Fiberglass with window
Dimensions (H x W x D):
16.9 x 15.0 x 8.3 inches (42.9 x 38.1 x 21.1 cm)
Weight:
17.6 lbs (8.0 Kg) - without gas sensor module
Sensor/Transmitter:
Mounting provisions for all standard Sierra Monitor sensors
Warranty:
1 Year, excludes diaphragm assy.
Ordering Information:
Model 5398-21
Single Channel Gas Sample Panel
4/13

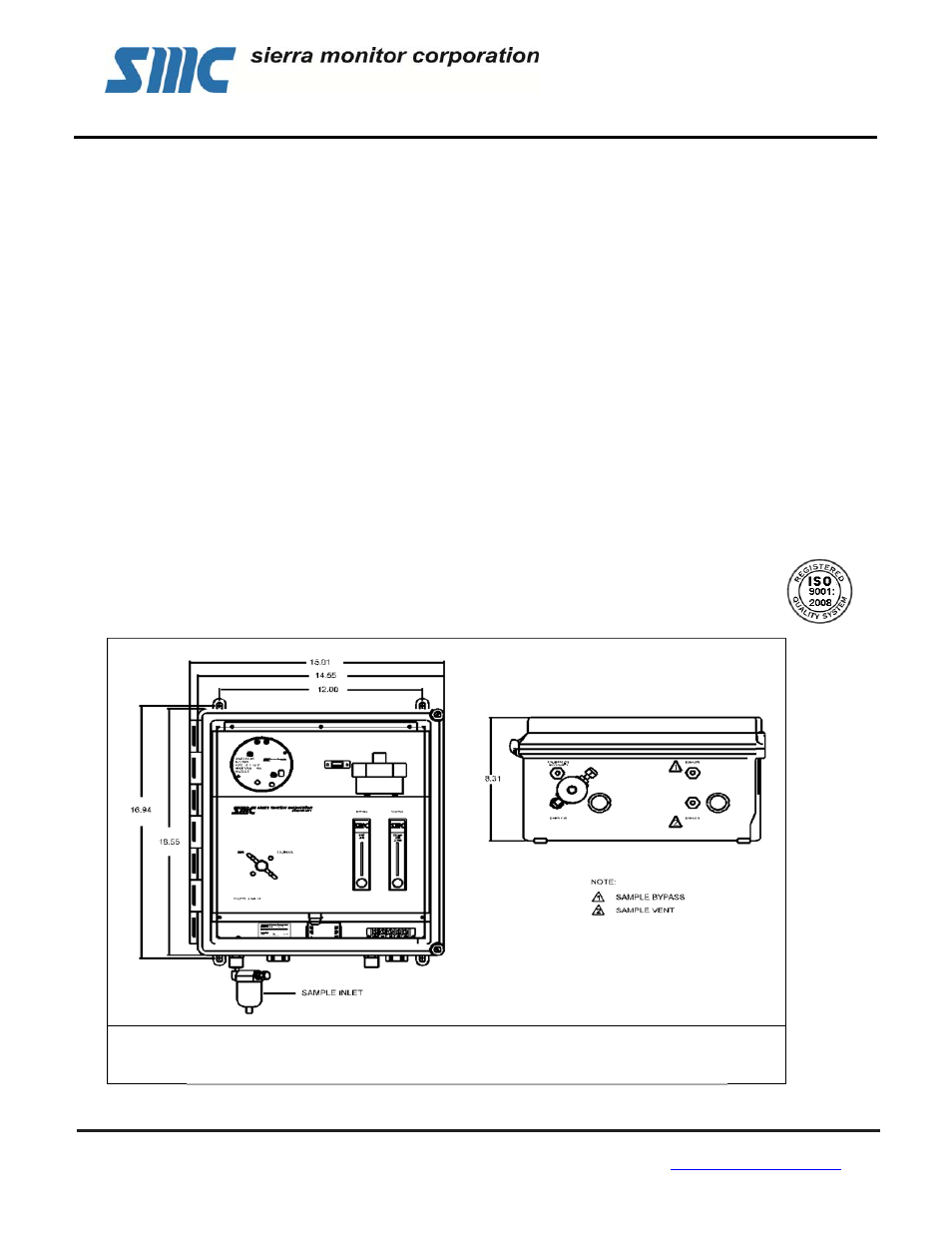

Model 5398-21 Dimensions
