Page 14
13
Type approvals
Also approved by
Transmitters that operate in the frequency range E (863 – 865 MHz) can be used licence-free in the
following countries:
AT, BA, BE, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LI, LT, LU, ME, MK, MT, NL, NO, PL, PT, RO,
RS, RU, SE, SI, SK, TR, UA.
Transmitters that operate in frequency range A (719 – 721 MHz), B (691–693 MHz) or frequency range
C (742.5 – 744.5 MHz) must only be used with an appropriate radio transmission licence. Frequency
range B is intended for use solely in the USA and Canada.

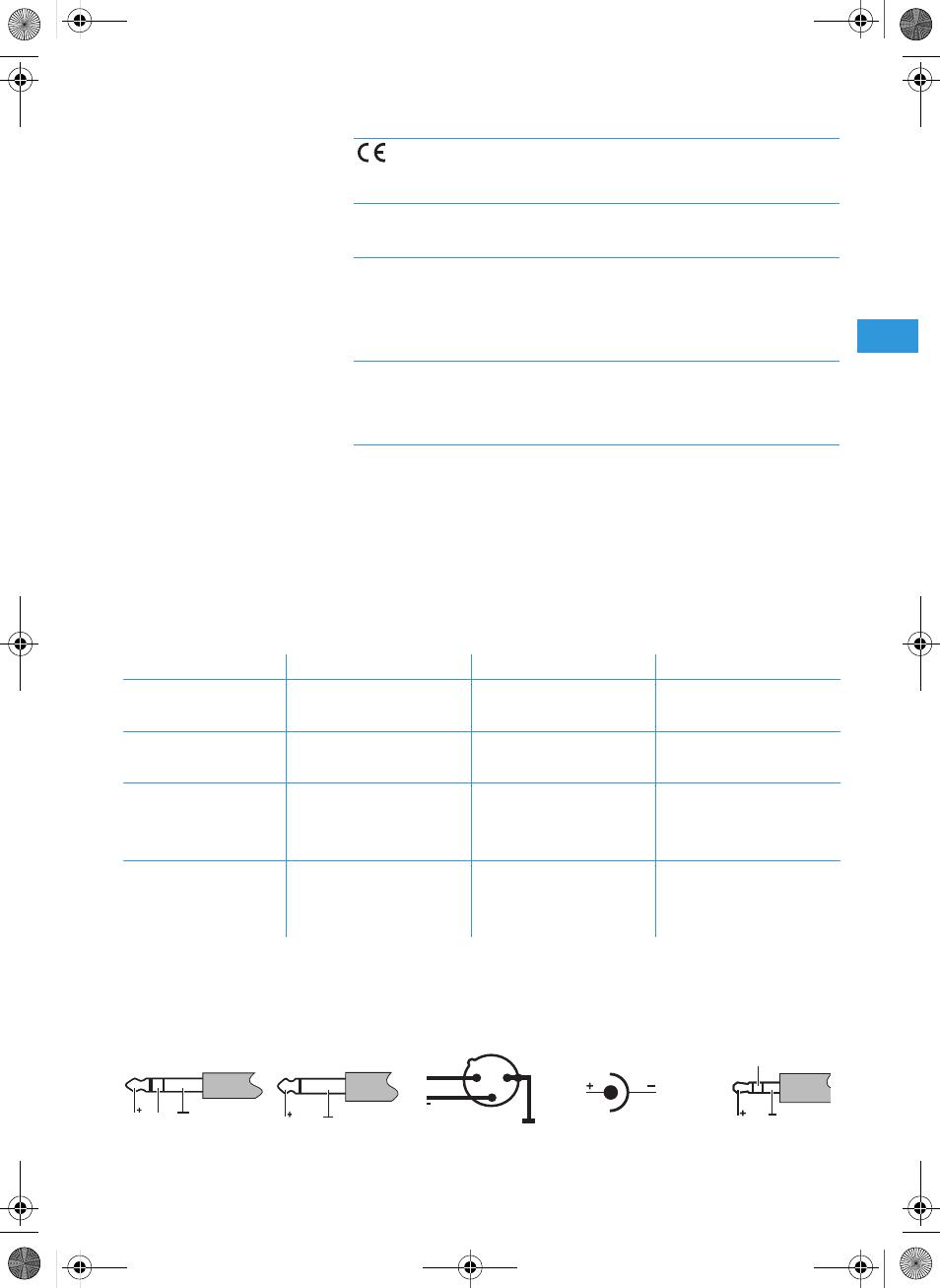

Connector assignment
In compliance with
EMC
EN 301489-1/-9
Radio
EN 301357-1/-2
Safety
EN 60065
Industry Canada
RSS 210,
IC: 2099A
SKM3/EM1-A/-C
IC: 2099A-FPSKMEM
SKM3/EM1-B
IC: 2099A-FPSKMEMB
SK2-A/-C
IC: 2099A-FPSK
SK2-B
IC: 2099A-FPSKB
FCC-Part 74
SK2-A/-C
FCC ID: DMOB1FPXD
SK2-B
FCC ID: DMOB2FPSK
SKM3-A/-C
FCC ID: DMOH1FPXD
SKM3-B
FCC ID: DMOH2FPSKM
Frequency range
Presentation Set
Instrument Set
Vocal Set
691 – 693 MHz:
with US mains unit
freePort fp 12-B-US
freePort fp 72-B-US
freePort fp 35-B-US
719
–
721 MHz:
with US mains unit
freePort fp 12-A-US
freePort fp 72-A-US
freePort fp 35-A-US
742.5
–
744.5 MHz:
with EU mains unit
freePort fp 12-C-EU
freePort fp 72-C-EU
freePort fp 35-C-EU
with US mains unit
freePort fp 12-C-US
freePort fp 72-C-US
freePort fp 35-C-US
863
–
865 MHz:
with EU mains unit
freePort fp 12-E-EU
freePort fp 72-E-EU
freePort fp 35-E-EU
with UK mains unit
freePort fp 12-E-UK
freePort fp 72-E-UK
freePort fp 35-E-UK
EM 1:
¼’’ (6.3 mm) stereo
jack plug,unbalanced
EM 1:
¼’’ (6.3 mm) mono
jack plug,unbalanced
EM 1:
XLR-3F connector,
balanced
EM 1:
DC connector for
power supply
SK 2:
3.5 mm jack plug
NC/GN D
2
1
3
+
Instr./MIC
NC/GND
