4100 Series Gas Sensor Modules
ORDERING INFORMATION
Spare Parts & Accessories
4200-33 Sensor Replacement Assy for 4100-33
4200-34 Sensor Replacement Assy for 4100-34
4200-35 Sensor Replacement Assy for 4100-35
4200-36 Sensor Replacement Assy for 4100-36
5311-00 Rainshield
SPM 28009 Assembly, Transmitter Electronics
Calibration Accessories
1200-26 Gas Sensor Calibrator w/2 gas cylinders
1290-03 Gas Cylinder - Methane 5000 ppm
1290-04 Gas Cylinder - Methane 1000 ppm
1290-05 Gas Cylinder - Carbon Monoxide 100 ppm
4100-33 Gas Sensor Module 4-20 mA DC
4100-34 Gas Sensor Module 4-20 mA DC
4100-35 Gas Sensor Module 4-20 mA DC
4100-36 Gas Sensor Module 4-20 mA DC
GAS 500 PPM 5,000 PPM
FULL SCALE FULL SCALE
acetic acid 4100-34 4100-35
acetone 4100-34 4100-35
acetonitrile 4100-34 4100-35
acetylene 4100-34 4100-35
acrylonitrile 4100-34 4100-35
ammonia (<0
o
C) 4100-34
ammonia (>0
o
C) 4100-36
benzene 4100-34
1-butanol 4100-34
2-butanol 4100-34
i-butane 4100-34 4100-35
n-butane 4100-34 4100-35
1-butanol 4100-35
2-butanol 4100-35
i-butanol 4100-34 4100-35
t-butanol 4100-34 4100-35
butene 4100-34 4100-35
carbon monoxide 4100-34
chloroform 4100-34
cyclohexane 4100-34 4100-35
cyclopentane 4100-34 4100-35
diethylketone 4100-34 4100-35
dipropylether 4100-34 4100-35
ethane 4100-34 4100-35
ethanol 4100-34 4100-35
ethylene 4100-34 4100-35
n-heptane 4100-34 4100-35
n-hexane 4100-34 4100-35
1-hexanol 4100-34 4100-35
GAS 500 PPM 5,000 PPM
FULL SCALE FULL SCALE
hexafluoropropylene 4100-34 4100-33
hydrogen 4100-34
methane 4100-35
methanol 4100-34 4100-35
methyl bromide 4100-34 4100-35
methyl chloride 4100-34 4100-35
methyl ethyl ketone 4100-34 4100-35
methyl propyl ketone 4100-34 4100-35
methylene chloride 4100-34
nitroethane 4100-34 4100-35
nitromethane 4100-34 4100-35
1-pentanol 4100-34 4100-35
propanal 4100-35
propane 4100-34
i-propanol 4100-34 4100-35
n-propanol 4100-34 4100-35
propylene 4100-34 4100-35
R-11 4100-33
R-12 4100-33
R-22 4100-33
R-113 4100-33
R-123 4100-33
R-134a 4100-33
R-141b 4100-33
R-142b 4100-33
R-500 4100-33
R-502 4100-33
toluene 4100-34
xylene 4100-34
Table A: Gases and ranges for 4100 Series Gas Sensor Modules

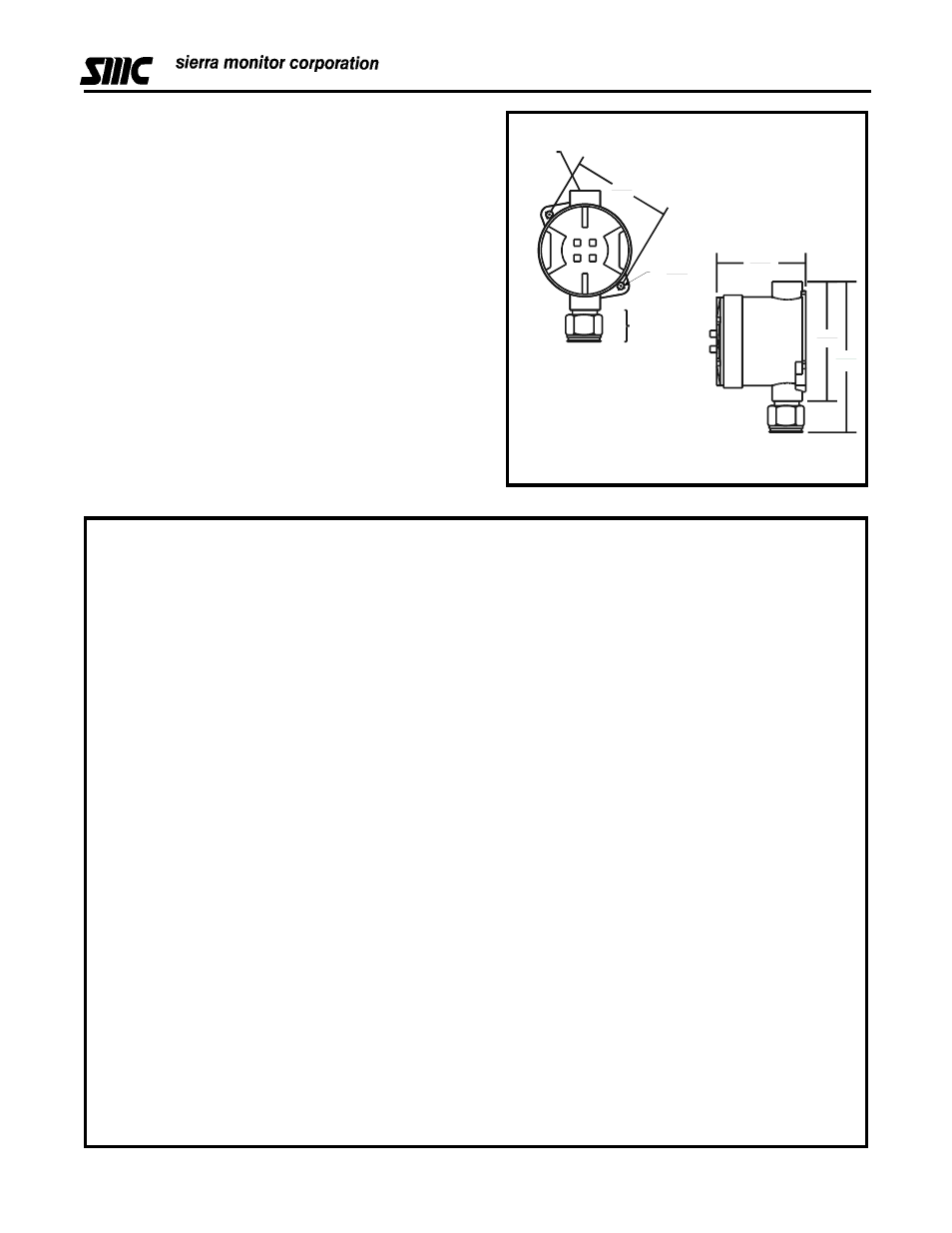

5.30 IN
6.90 IN
3.94 IN
10.0cm
17.5cm
13.5cm
4.50 IN
SENSOR
ASSEMBLY
11.4cm
HUB FOR 3/4"
CONDUIT
.312 IN
0.8cm
DIA. (2X)
© 1996 Sierra Monitor Corporation
