28

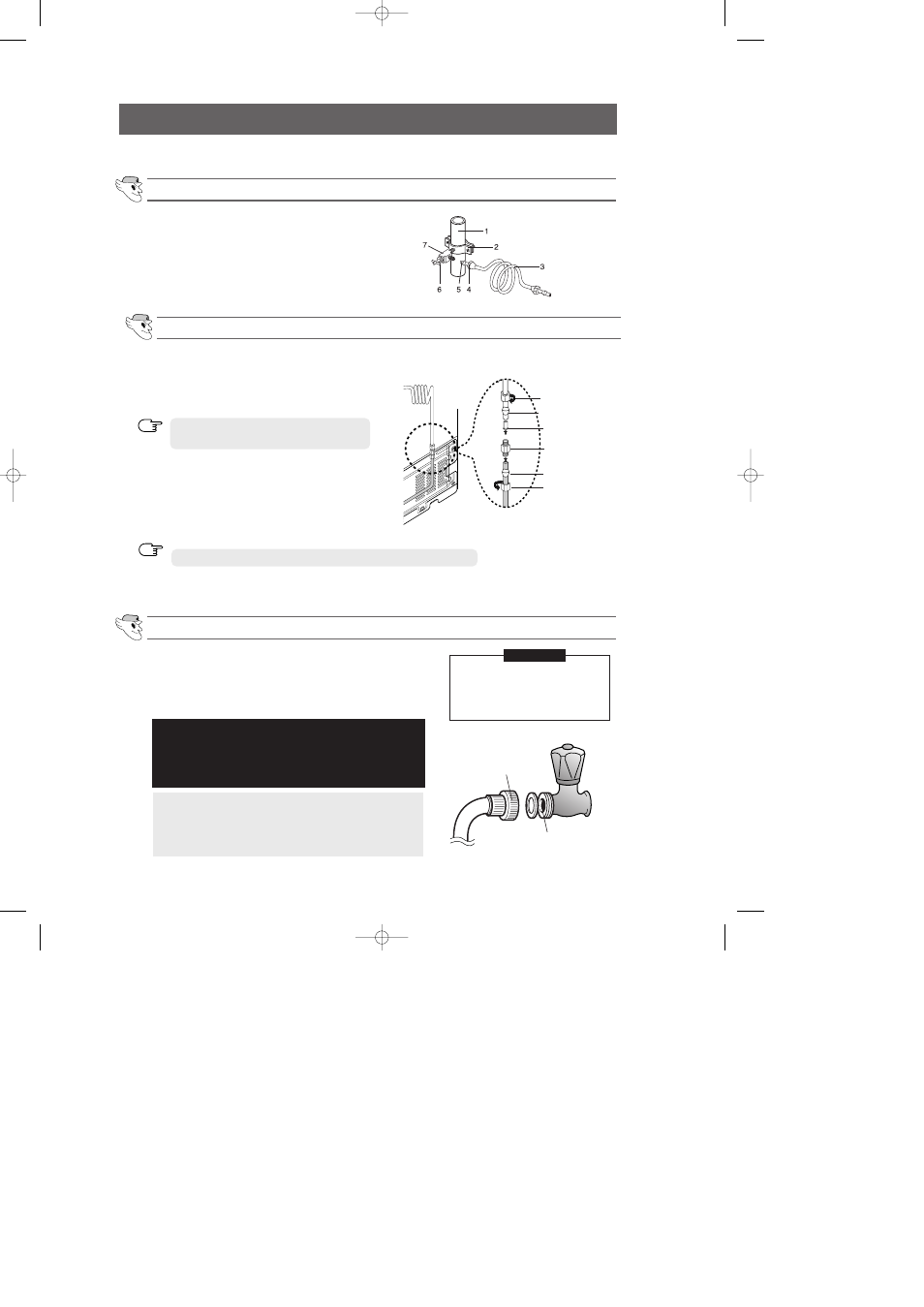

INSTALLING OF THE WATER DISPENSER LINE
Connecting to water supply line
1. Cold Water line
2. Pipe Clamp.
3.Copper (or Plastic) line
4.Compression Nut
5.Compression Sleeve
6.Shut Off Valve
7.Packing Nut.
For Interior Model
- Shut off the main water supply line and turn the Ice maker to
the off position.
- Locate the nearest cold drinking water line.
- Follow the instructions in the ice maker installation kit.
Check the water supply line
Connect the water pipe with coupler and tap.
- Close the main water tap.
- Connect coupler “A” to the tap.
- Every join should be protected with sealing tape.
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase
the right couplers fittings.
WARRANTY INFORMATION
This water line installation is not covered by the
refrigerator or ice maker manufacturer's warranty.
Follow these instructions carefully to minimise the risk
of expensive water damage.
TAP
COUPLER “A”
The water line must be connect-
ed to the cold water pipe.
If it is connected to the hot
water pipe, it may cause the puri-
fier to malfunction.
CAUTION
(Case 1)
(Case 2)
Connect the water line to the refrigerator
Compression Nut
Compression fitting
Sleeve
Compression Nut
Ferrule
Ferrule
- Slip the compression nut and plastic ferrule
through the plastic tube.
- After inserting the sleeve, tighten the compres-
sion nut onto 1/4” compression fitting(union).
Waterline must be connected to drinkable water only
NOTE
Do not overtighten the compression
nut. NOTE
- Slip the compression ferrule and nut on cop-
per (or plastic) tubing as shown.
Tighten the comperssion nut onto the com-
pression fitting(union).
- Turn water on and check for any leakege.
