37 GB
Specifications
Ot
h
e
r
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
1) VPS-50C may not be available in some areas.
For details, please consult your nearest Sony
office.

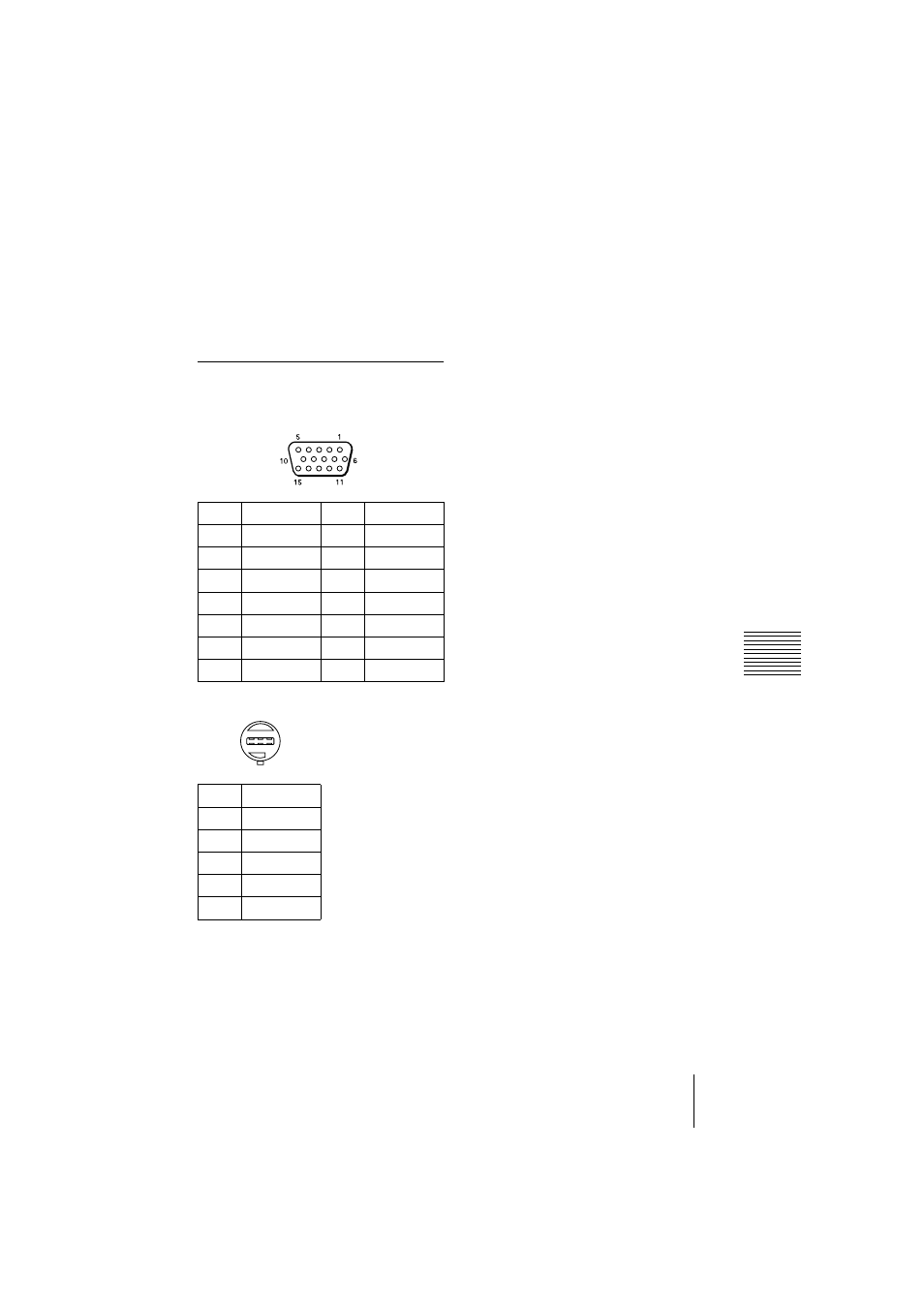

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
MOUSE connector (6-pin, female)
1 R/R-Y 9 N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4 GND 12 N.C.
5 GND 13 HD/C.Sync
6 GND (R) 14 VD
7 GND (G) 15 N.C.
8 GND (B)
1 DATA
2 N.C.
3 GND
4 +5V
5 CLK
6 N.C.
1 2 3
4 5 6
