Specifications:
4400 In-Stream Analyzer
Power:
24VDC
Output:
4-20 mA = 0-100 ppm H
2
S
Environmental:
Temperature Range
Operating::
-20 to 50
o
C (-4 to 122
o
F)
Storage:
-40 to 50
o
C (-40 to 122
o
F)
Humidity:
0-95% RH (non-condensing)
Sensor:
Range:
0-100 ppm Hydrogen Sulfide
Type:
Electrochemical
Life:
Approximately 1 year in cycled
service
Response:
<30 seconds to 90% FS
Mechanical:
Area Classification:
Div 1, Class 1, Groups B,C,D
Enclosure:
NEMA-1 with removable cover panel
Mounting:
installs on 9” x 7” “H” Frame
Connections:
3 position terminal strip with
separate conduit
Dimensions (WxHxD): 9.0 x 11.0 x 4.0 inches
(22.9 x 27.9 x 10.2 cm)
Weight:
5 lbs (2.2 Kg)
Warranty:
2 years as non non-consumable items
Sierra Monitor Corporation 1991 Tarob Ct. Milpitas, CA 95035 (408) 262-6611 800-727-4377 FAX: (408) 262-9042
Visit our Web site at: www.sierramonitor.com E-Mail: [email protected]

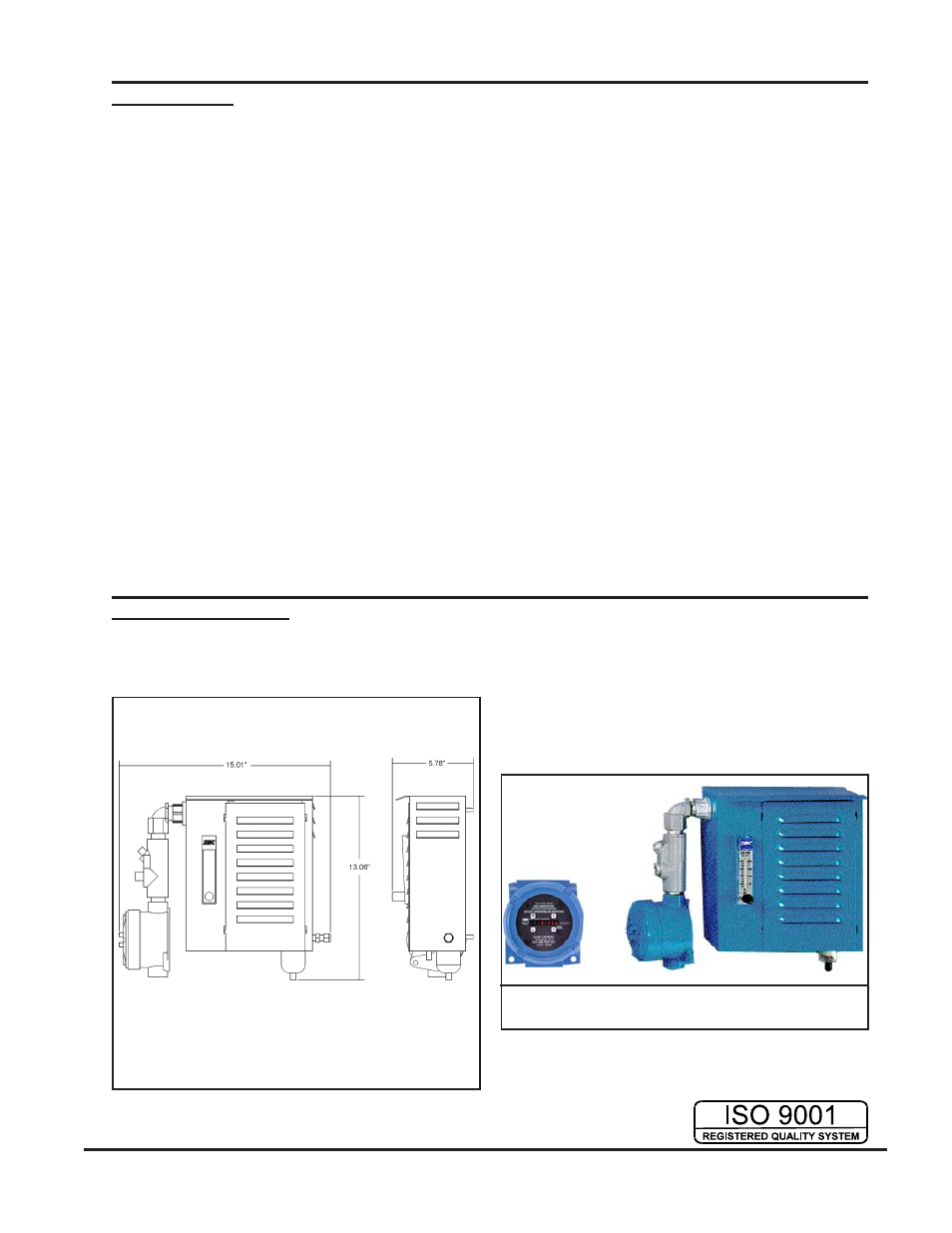

Model 4400
In-Stream Hydrogen Sulfide Analyzer
Model 5100-99-IT-AL Transmitter/Display
Ordering Information:
4400-10
In-Stream Hydrogen Sulfide Monitor
5100-99-IT-AL
Single Point Explosion Proof Transmitter/Display - Aluminum
5100-99-IT-SS
Single Point Explosion Proof Transmitter/Display - Stainless Steel
5100-99-IT Transmitter/Display
Power:
24VDC
Operating
Temperature Range: -40 to 50
o
C (-40 to 122
o
F)
Display:
Fixed and Scrolling LED
Optional Alarms:
Dual level alarms (8A) plus
fault alarm (4A)
Serial Output:
Bi-directional RS-485
MODBUS
®
protocol
Mechanical:
Housing:
Aluminum: Epoxy-coated, die-cast,
copper-fire aluminum
Stainless Steel: 316 Stainless Steel
Dimensions( WxHxD):
Aluminum: 6.0 x 4.4 x 4.9 in.
316 Stainless Steel:
5.9 x 4.8 x 4.9 in.
Weight:
Aluminum: 2.7 lbs (1.3 Kg)
316 Stainless Steel:
5.4 lbs (2.6 Kg)
