Completed assembly, Warning – Spalding M866041 User Manual
Page 9
9
05/05 ID# M866041
THREE PEOPLE
REQUIRED FOR THIS
PROCEDURE. FAILURE
TO FOLLOW THIS
WARNING COULD RESULT
IN SERIOUS INJURY
AND/OR PROPERTY
DAMAGE.
WARNING!

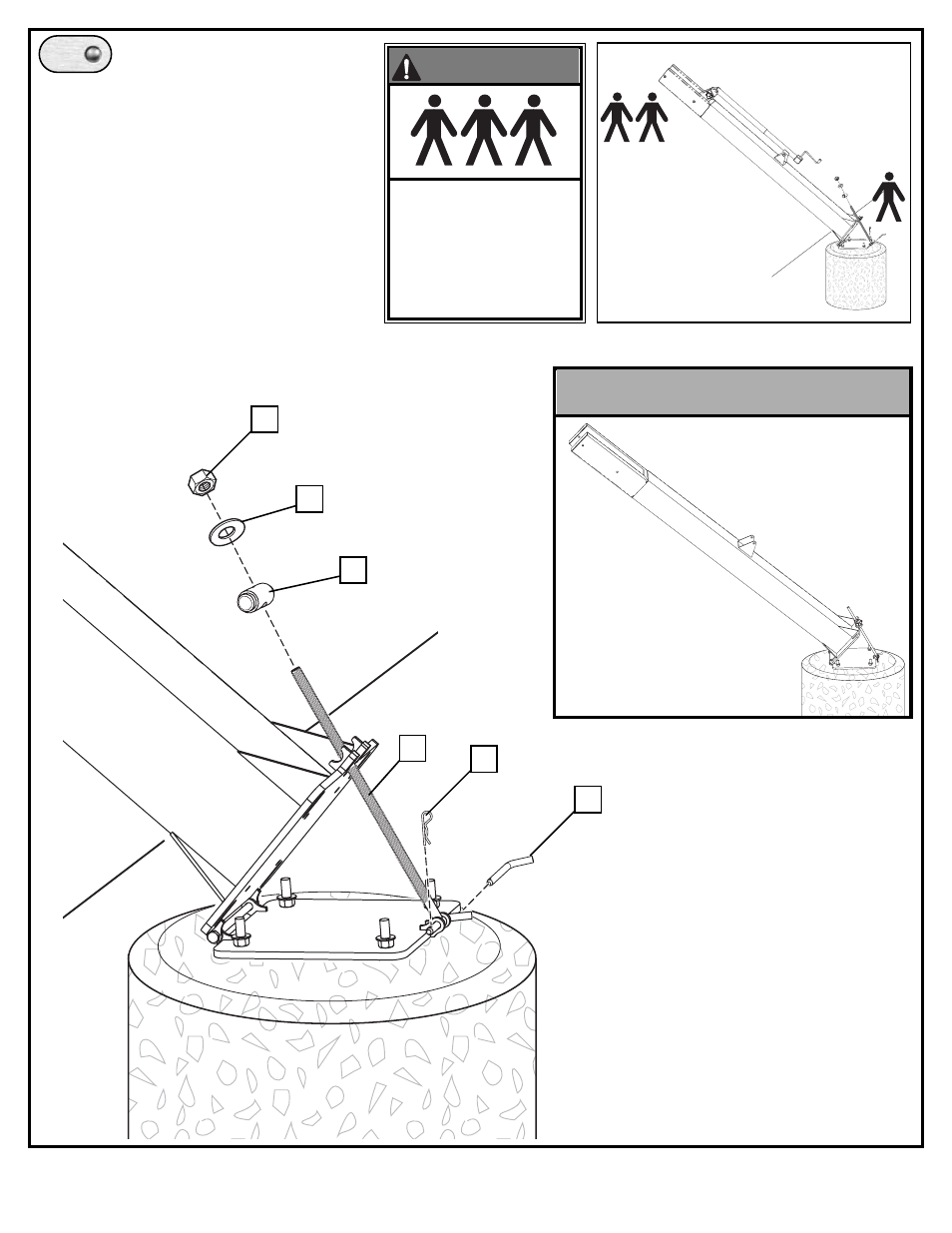

8.
TWO people are required to lift pole into
position so that the rod (14) can be installed
and secured by the THIRD person.
While pole is being supported by TWO
capable adults, position rod (14) and lock
into place with hitch pin (36) and cotter
pin (37).
Slide barrel washer (35) onto other end of
rod (14) and secure with washer (24) and
nut (25). Tighten until locked into completed
assembly position
25
24
35
37
36
14
Completed Assembly
