Initial Setup & Assembly
Install Lift Rod
1. Assemble lift rod as shown in Figure17.
2. See Figure 18. Insert the rod guide (A) through the
hole in the push bar (B), and secure with spring clip
(C).
3. See Figure 19. Connect rear of lift rod (A) to manual
lift lever (B), and secure with spring clip (C).

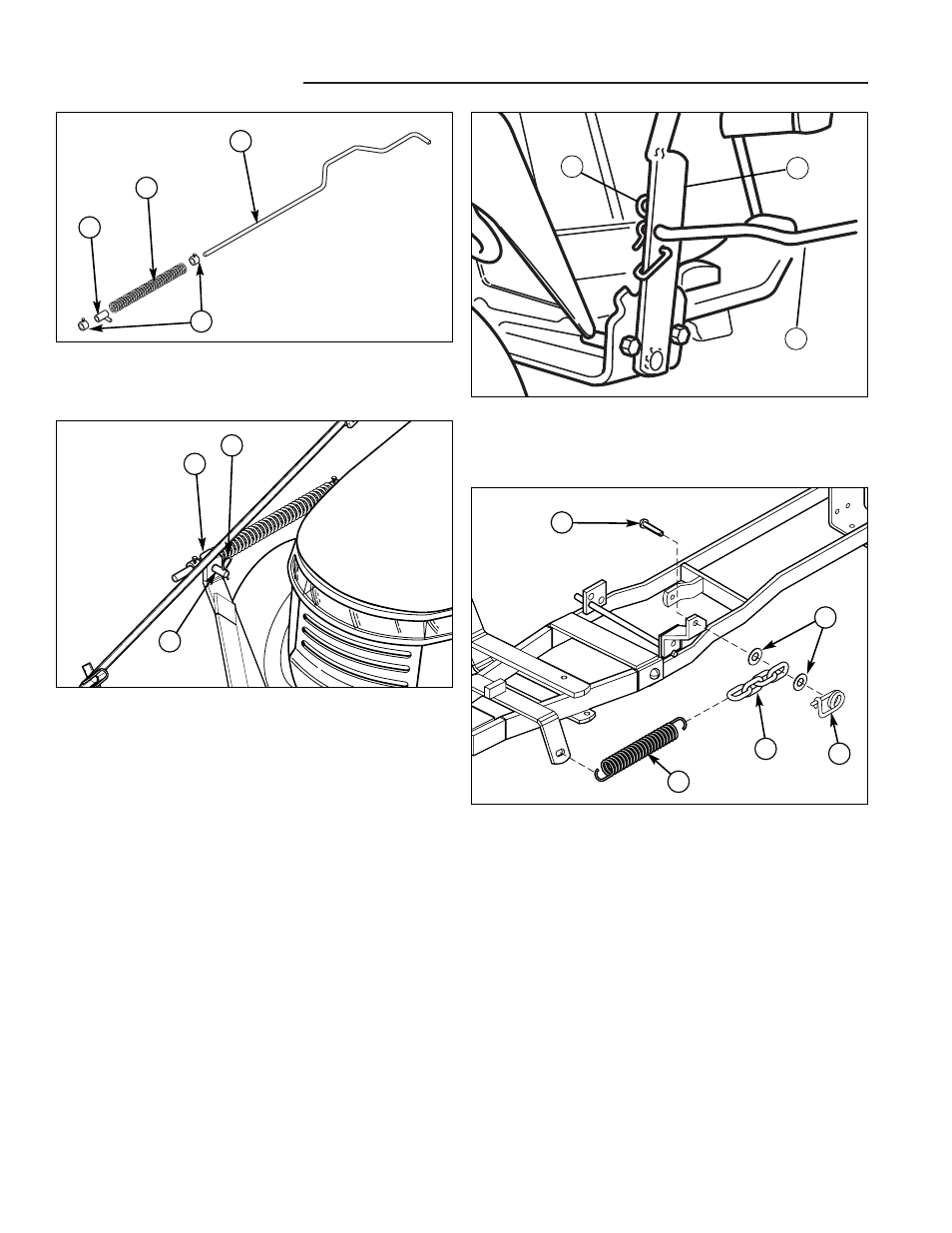

Figure 18. Lift Rod Installation
A. Rod Guide
C. Spring Clip
B. Push Bar
Figure 19. Installing Lift Rod to Manual Lift Lever
A. Lift Rod
C. Spring Clip
B. Manual Lift Lever
B
A
C
Figure 17. Lift Rod Assembly
A. Set Collars
C. Spring
B. Rod Guide D. Lift Rod
A
B
B
C
A
C
D
4. Raise the dozer using the lift lever. Support the
weight of the blade using wood blocks. Install the lift
assist spring as shown in Figure 20.
5. Perform lift rod adjustment (see Adjustments sec-
tion).
Figure 20. Install Lift Assist Chain
A. Clevis Pin
D. Safety Clip
B. Spring E. 5/16 Washers
C. Chain
A
B
C
D
E
