System Board

51

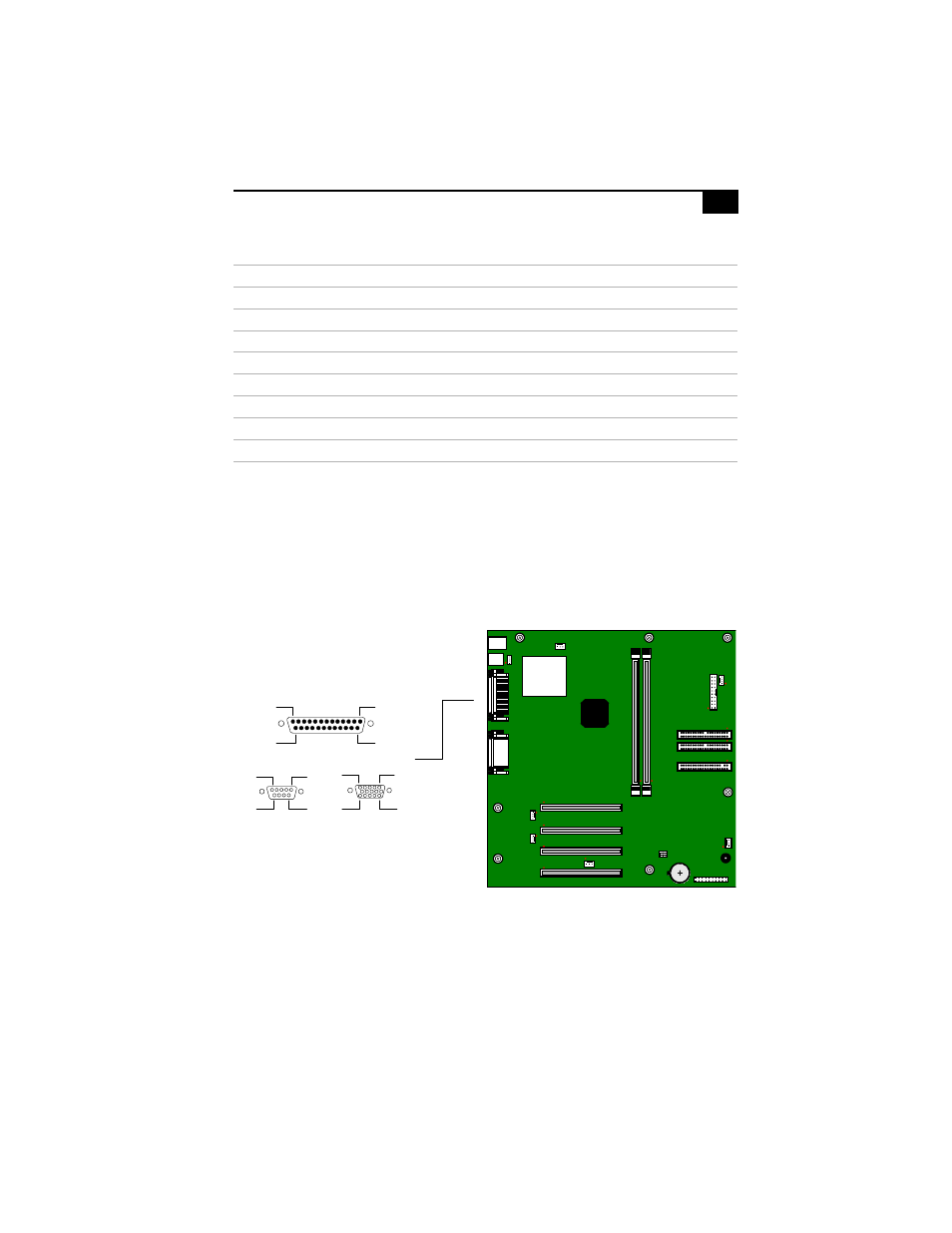

SERIAL 1, PRINTER, and MONITOR Connectors

The SERIAL 1, PRINTER, and MONITOR connectors are mounted in a
single bracket on the system board. The SERIAL 1 connector is a DB-9
male connector. The PRINTER connector is a DB-25 female connector. The
MONITOR connector is a standard 15-pin female high-density VGA-type
connector.

USB2
Pin

Signal Name

1

USBVCC1

*

2

USBP0#

3

USBP0

4

Ground

5

USBVCC2

*

6

USBP1#

7

USBP1

8

Ground

* Uses over-current protector.

OM04701D.VSD

SERIAL 1

MONITOR

PRINTER

1

5

6

9

13

1

25

14

5

1

15

11
