Removing, Installing, and Replacing Components 37
Installing a 3½” Internal Hard Disk Drive
Your system comes with an available bay to hold an additional 3½” hard
disk drive. The drive you install must not require front panel access. The
hard disk drive access light blinks when either internal drive is active.
1
Configure the jumpers on the new drive as a slave device (see your
drive’s documentation for configuration instructions).
2
Disconnect the power cord from the computer.
3
Remove the side cover (see “Removing the Side Cover” on page 22).
!
Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.

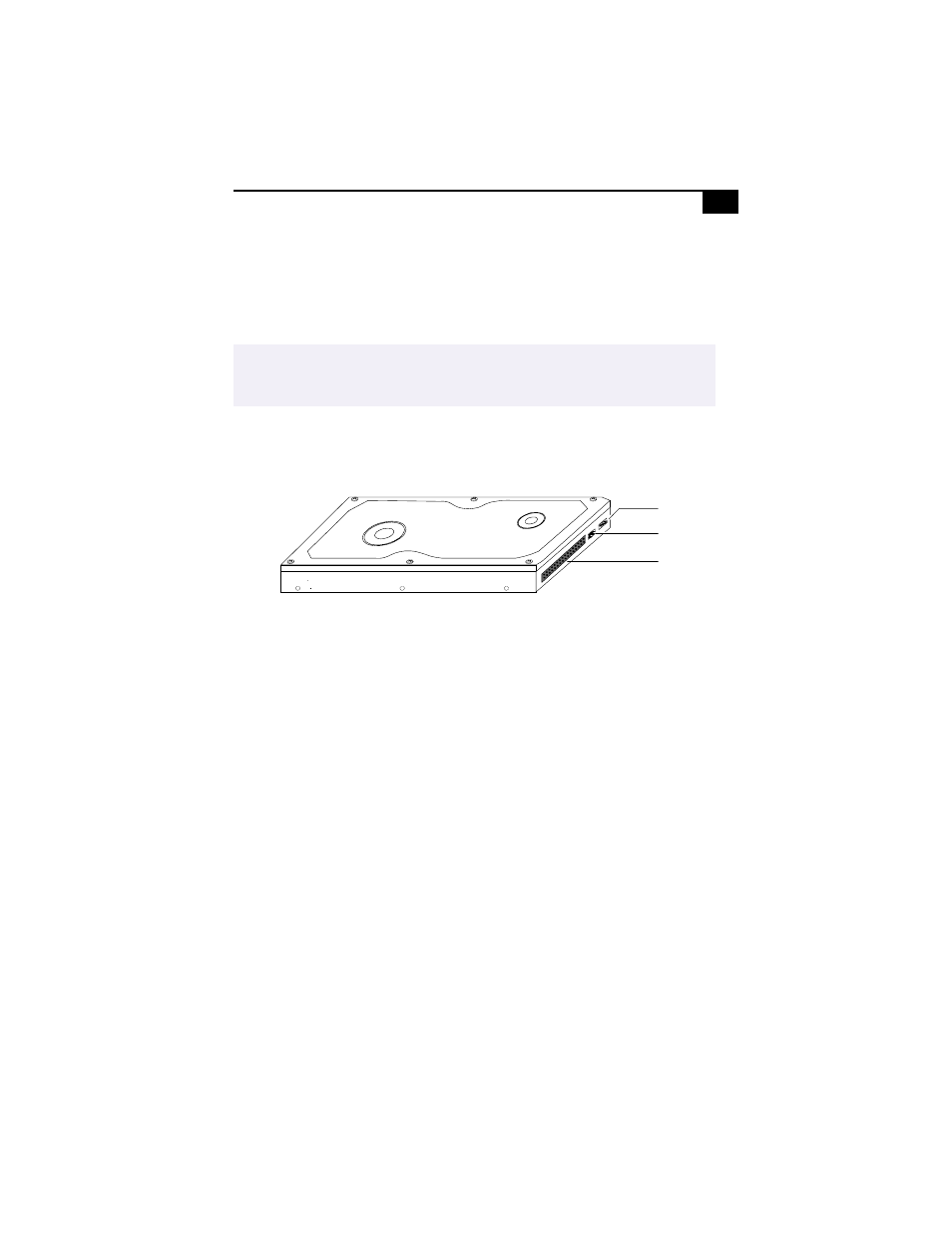

KY0084.VSD
Drive connector
Power connector
Jumpers
