930570 Rev. C
X . O p e r a t i n g G u i d e 39 X . O p e r a t i n g G u i d e
930570 Rev. C
38
F. MOTOR LOCKS
Disconnect the motor locks when you need to manually
push the chair. (For example, in an emergency, or if
batteries fail).
1. Do not disengage motor locks unless power
to the chair is off.
2. Be aware that the chair will not have brakes
in the free-wheel position.
3. Make sure that the person pushing the chair
has full control when motor locks are disen-
gaged.

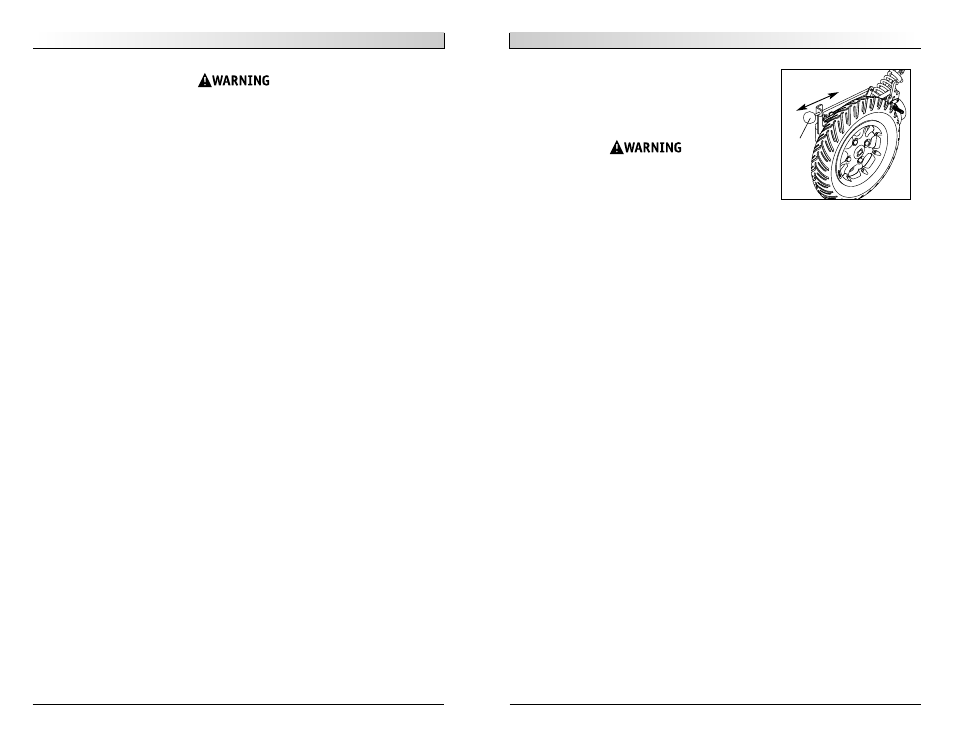

1. Release Motor Locks
To release pull lever (C) to the rear on both right & left
side of chair.
2. Engage Motor Locks
To engage push lever (C) toward the front on both
right & left side of chair.
C
Engag
e
Release
1. Never use the ON/OFF switch to stop your chair except in an emergency.
This will result in an abrupt stop, and may cause you to fall.
2. To slow or stop your chair, return the joystick to neutral.
5. Joystick (E):
The joystick controls the direction and speed of your chair. Turn the chair on and move
the joystick in the direction you want to go.
• Moving the joystick from the neutral (center) position disengages the motor
locks, allowing the chair to move.
• The chair will move faster the more you move the joystick away
from neutral.
NOTE– If your speed becomes hard to manage, release the Joystick and the chair will
come to a complete stop.
• When you release the joystick it will return to neutral; the chair will slow to a
stop and the motor locks will reengage.
• We recommend that you switch the chair off if you stop for any length of time.
This will conserve battery power.
NOTE– Once the chair stops, switching the chair off will not affect the motor locks.
6. Joystick Boot(F):
Make sure the boot is not torn or cracked (this could allow debris, water or moisture
to enter). If the boot is torn or cracked, replace it as soon as you can.
7. Remote Switch Jacks (optional– not shown):
Two 1/8” mono jacks are optional to provide remote switch control of the on/off power func-
tion and the mode select function. Any of the single switches offered by Sunrise Medical can
be used to connect to either or both of these jacks (except the single zero touch switch).
