Rack Mount Kit for SV431DVIUAHR (Optional)

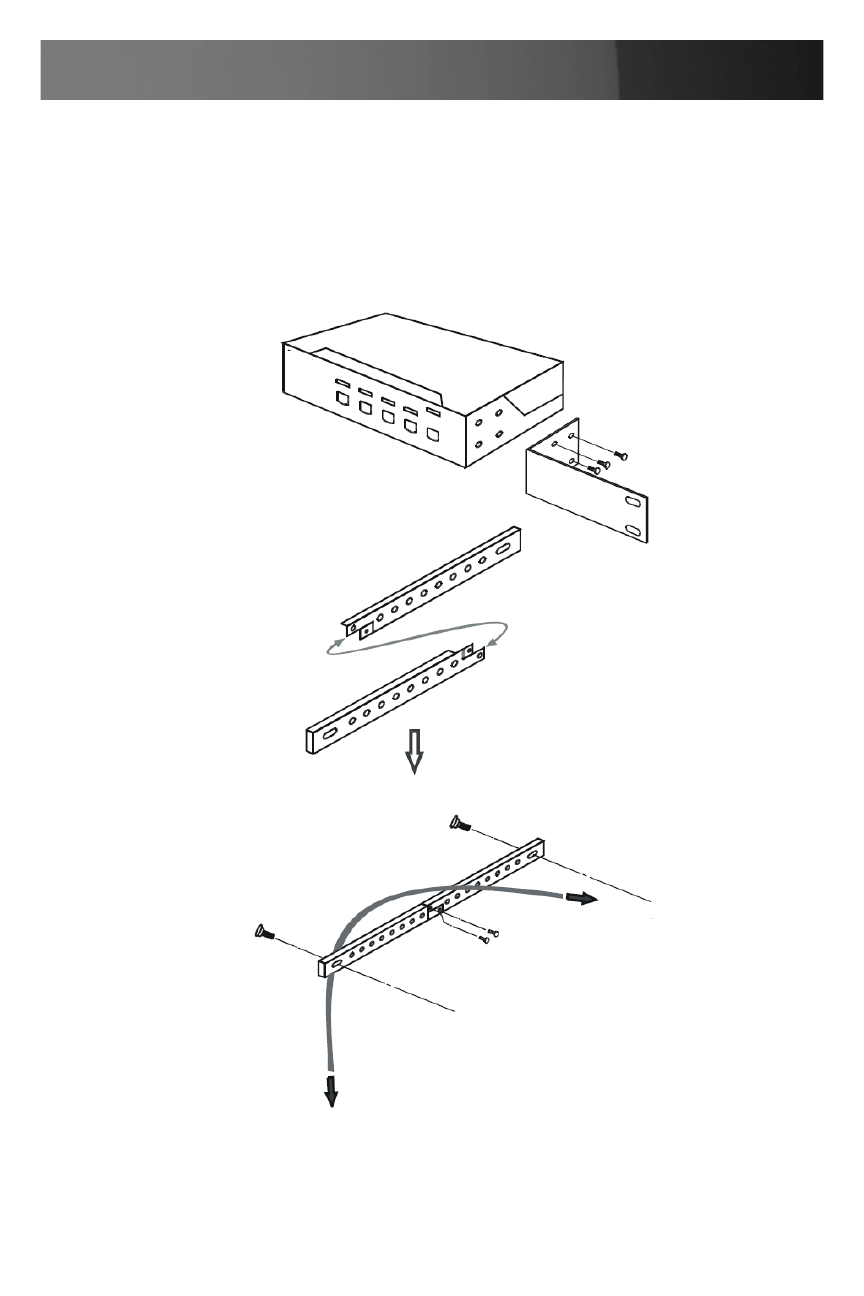

The figure below shows how to attach optional mounting brackets and
cable support (SV431RACK) to the SV431DVIUAHR for installation in a
standard 19-inch rack cabinet.
To the rack
cabinet
back post
Two screws secure
the cable support
USB or monitor
cables to the switch
To the rack
cabinet
back post
USB or monitor cables
to the computer
