User's Manual
Woofer baffle installation
With the cabinet installed, and all the
sheetrock, finishing and decorating done,
the woofer baffle can be installed.
The woofer baffle assembly consists
of the following components already
installed:
• The baffle, upon which all the com-
ponents are assembled
• Two subwoofer drivers
• I-BEAM™ anti-shake device
• Crossover board
Baffle Install
16
crossover board
Baffle
Subwoofer
driver
I-BEAM™
anti-shake device

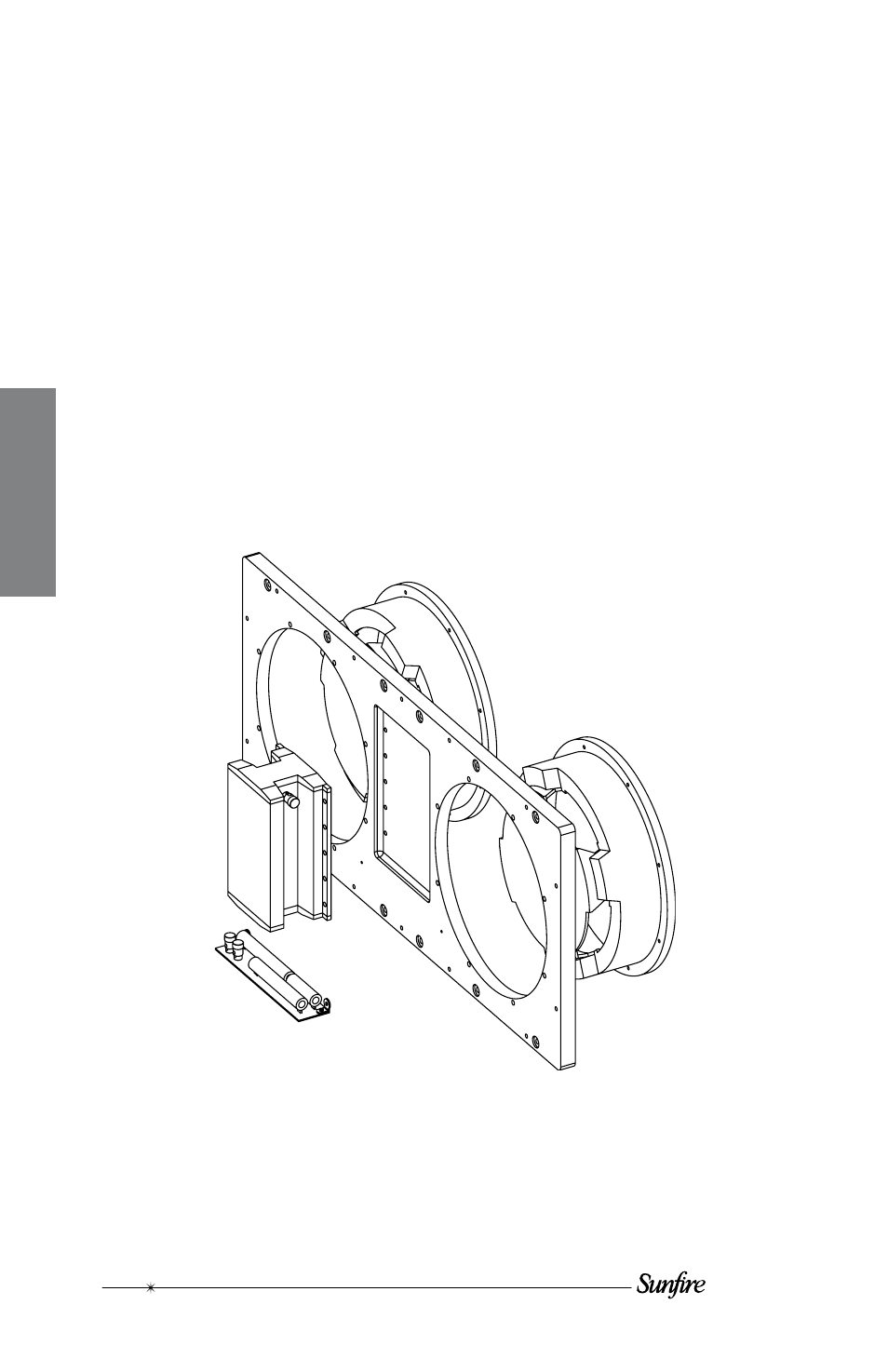

Exploded view of the woofer baffle assembly
(it is supplied all assembled and wired)
Subwoofer
driver
