14

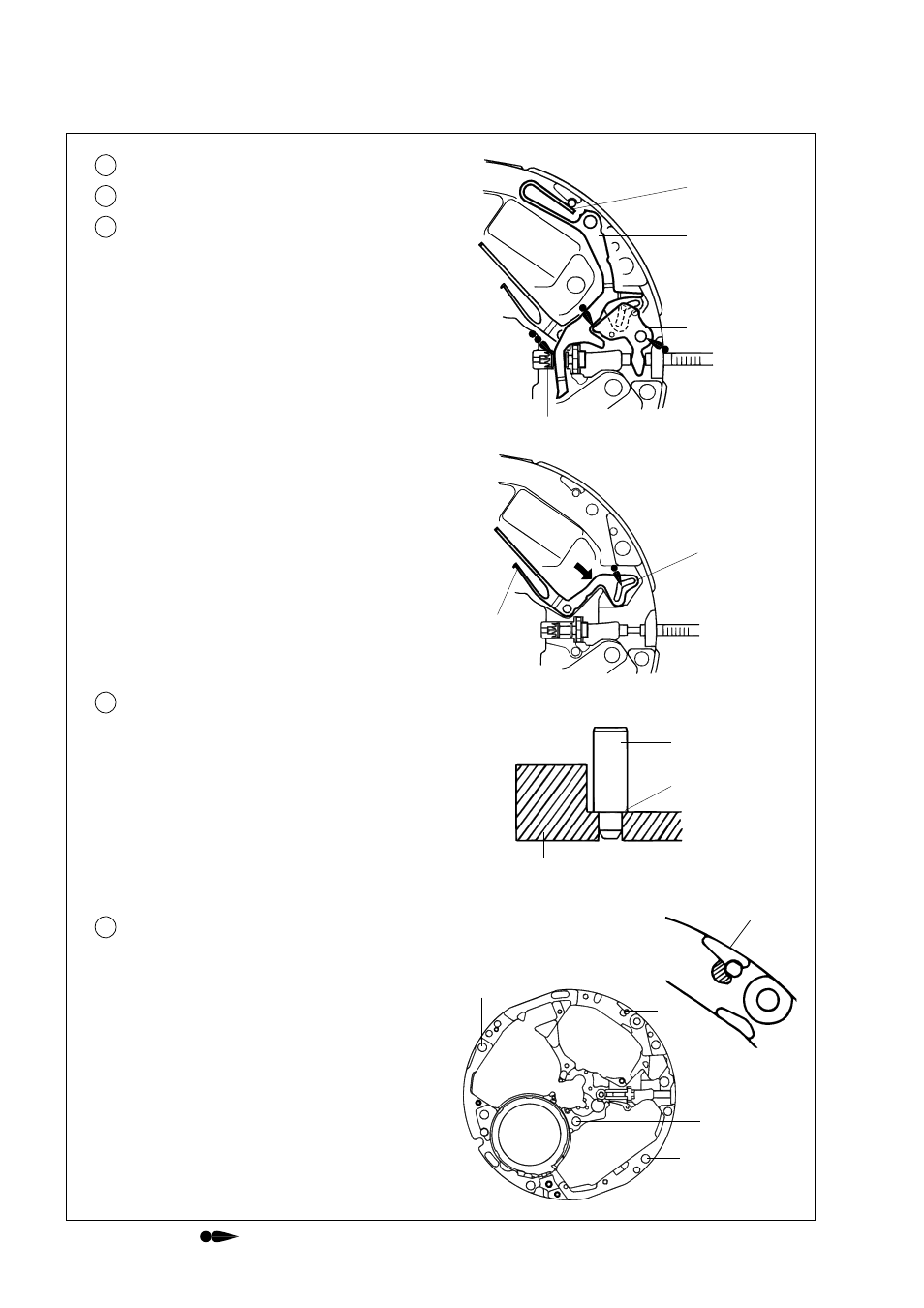

TECHNICAL GUIDE
Cal. 5J32A
Lubricating: : Moebius A
50 Setting lever
51 Yoke
52 Train wheel setting lever
• Make sure that the spring portion of the yoke
(“A” in the illustration) makes secure contact
with the pin.
• Lubricating
See the illustration at right.
Clutch wheel
“A” portion
Yoke
Setting lever
• When installing the setting lever, insert the
tube on its underside properly into the long
slot of the train wheel setting lever (“B” in the
illustration). To facilitate the setting procedure,
push the train wheel setting lever in the
direction of the arrow in the illustration before
installing the setting lever.
Note: If a defective contact occurs between
the spring portion of the yoke and the
pin, the manual power save function
may not be activated.
“B” portion
59 Power saving switch lead pin
• Do not remove the power saving switch lead pin
except when necessary.
• When installing the power saving switch lead pin,
press it in securely to the circuit block spacer.
Power saving switch
lead pin
Make sure that there
is no gap.
Circuit block spacer
Note: If the power saving switch is not securely fixed
to the circuit block spacer or if it comes off, the
manual power save function may not be
activated.
60 Circuit block spacer
• “a”, “b”, “c” and “d” portions in the illustration
have elasticity and are made tight for the tubes
of the movement to which they are set. After
setting the circuit block spacer, press down
these portions so that it is well seated in
position.
• When pressing in “a” portion, press down
only the portion indicated by the arrow in the
enlarged view.
Note: Take care not to damage the shaded
portion, as this will prevent the smooth
movement of the setting lever spring.
a
b
c
d
Enlarged view
of “a” portion
▲
Train wheel setting lever
