13

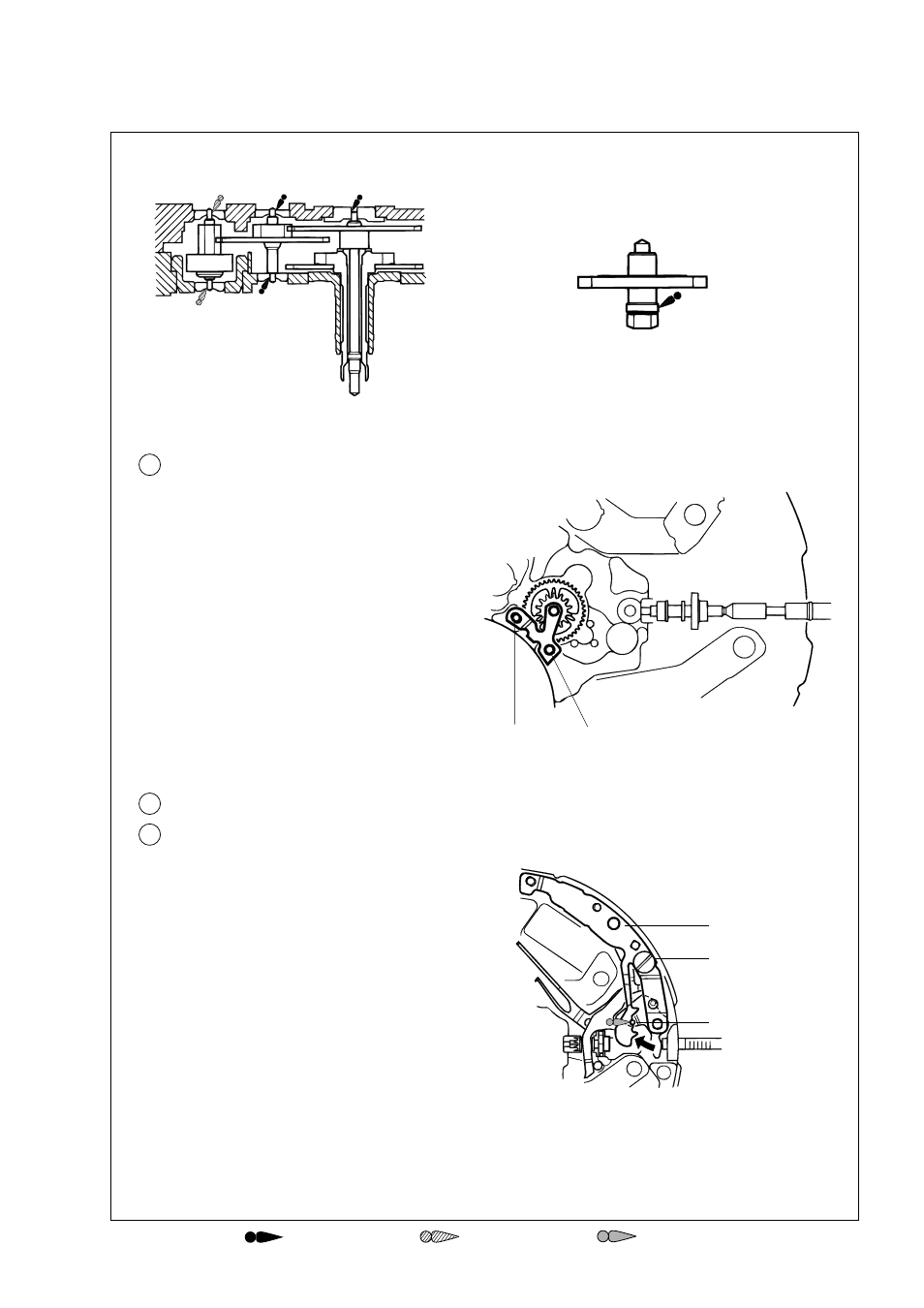

TECHNICAL GUIDE
Cal. 5J32A
Lubricating: : Moebius A : Moebius F : SEIKO Watch Oil S-6
Second
rotor
Intermediate
second wheel
Second wheel
and pinion
Notes:
* Lubricate the minute wheel and pinion before
reassembling it to the train wheel bridge. When
lubricating it, take care not to stain the pinion with oil.
* Do not lubricate the lower pivots of the third wheel and
pinion and intermediate second wheel excessively. Be
sure to observe the specified quantity.
43 Spacer for center wheel and pinion
• Setting position
See the illustration at right.
• How to install
“A” and “B” portions have elasticity and
are made tight for the guide tubes to which
they are set. After setting the spacer for
center wheel and pinion, press down those
portions so that it is well seated in position.
“A” portion “B” portion
48 Setting lever spring screw
49 Setting lever spring
• How to install
· Check that the setting lever spring is
securely set in position before tightening
the setting lever spring screw.
· Then, gently bend the spring portion of
the setting lever spring so that it catches
the tube of the setting lever.
Note: Take utmost care not to deform or
damage the portion that makes
contact with the center wheel and
pinion.
Note: Take care not to bend the spring
portion more than necessary.
• Lubricating
See the illustration at right.
Setting lever spring
Setting lever spring screw
Tube of the setting lever
