Barracuda 7200.11 Serial ATA Product Manual, Rev. D

11

2.7.1.1

Typical current profiles

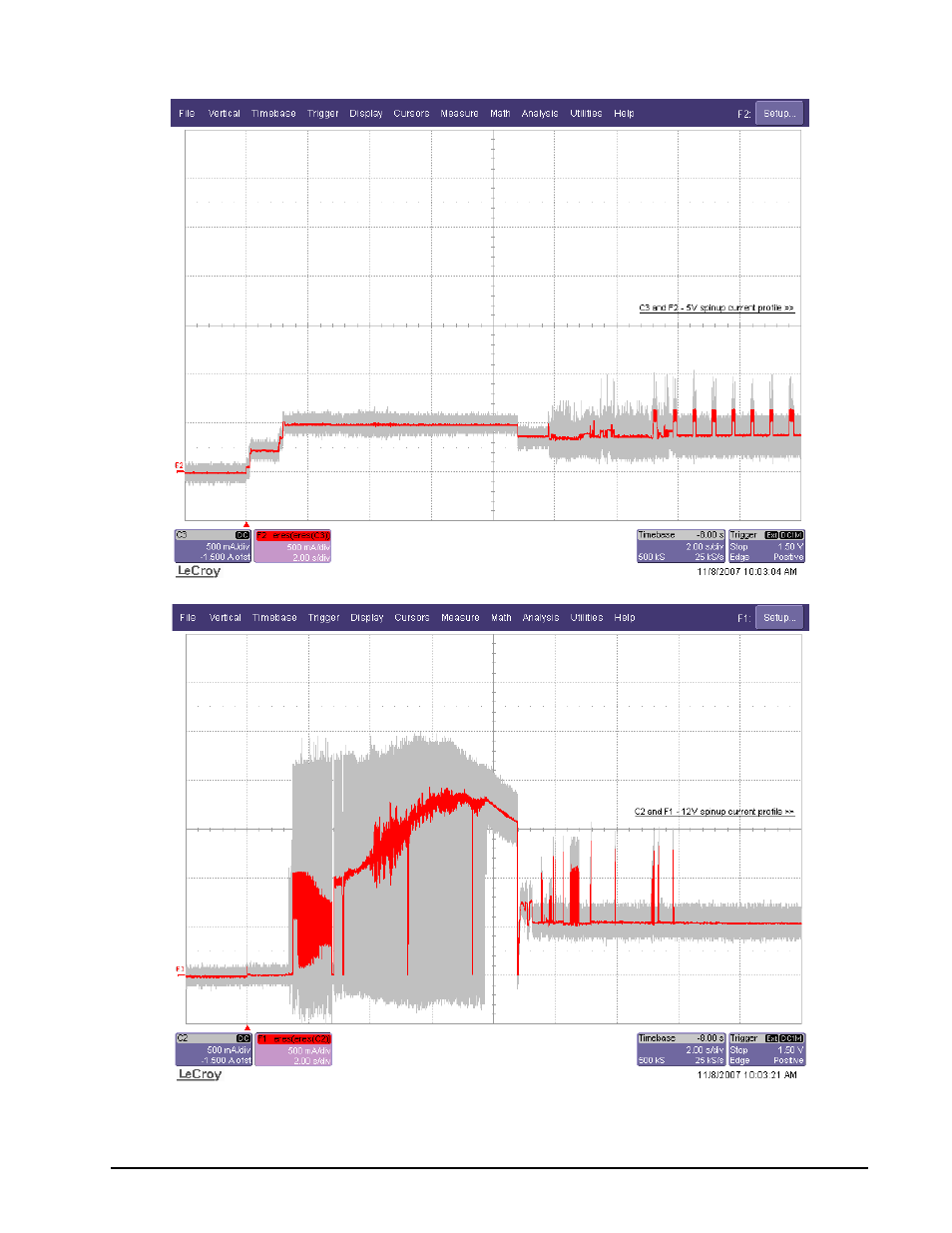

Figure 1. Typical 5V startup and operation current profile

Figure 2. Typical 12V startup and operation current profile
