Smooth Fitness 9.25HR User Manual
Page 20
SMOOTH 9.25HR MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
20
ASSEMBLY
STEP 9:

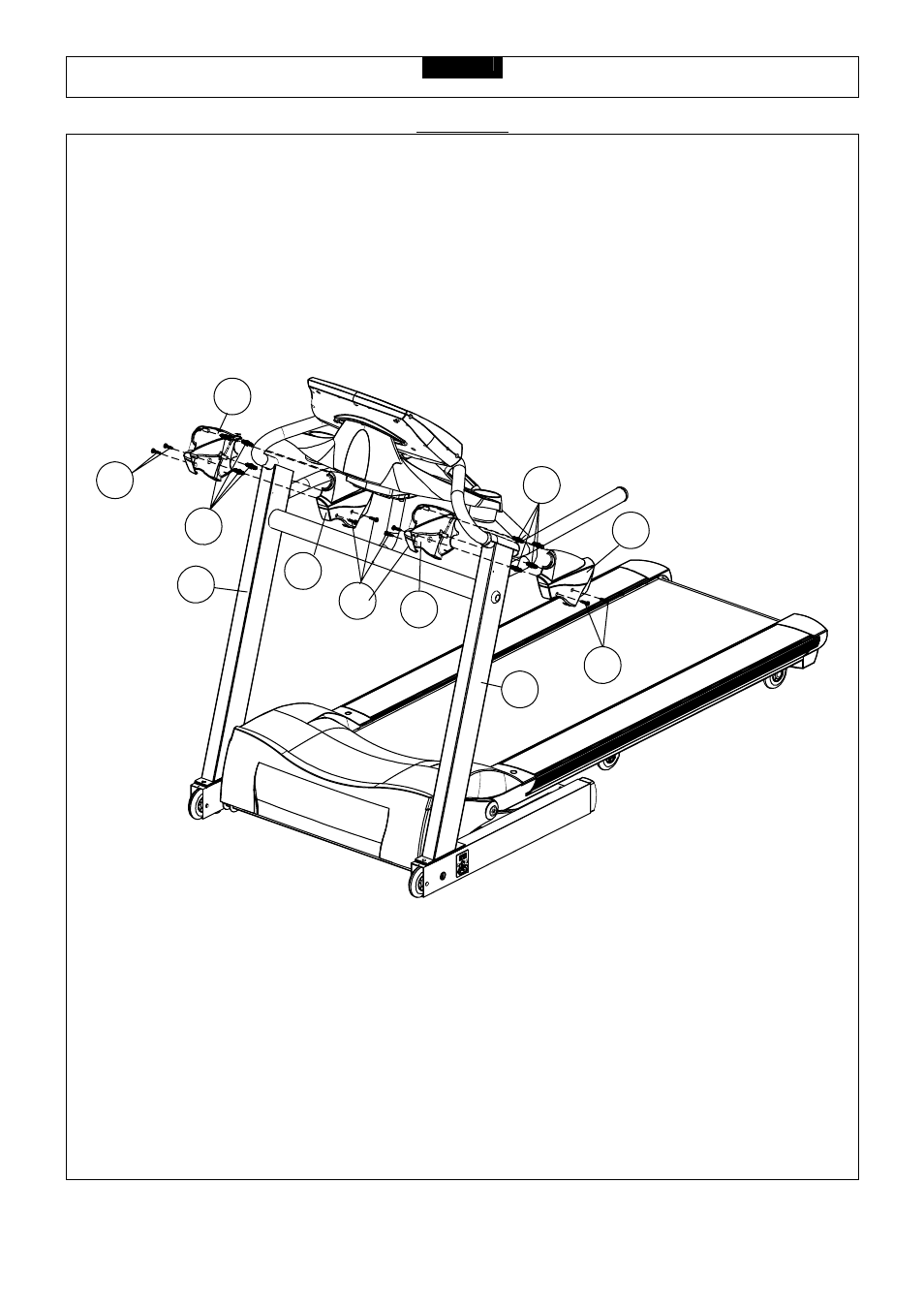

Attach the Handlebar Cover-Right #1 (15) and Handlebar Cover-Right #2 (14) to the Upright-Right (36) and secure with #8 x
25 Handlebar Cover Screws (16) and Plastic Fixing Inserts (137). Repeat the procedure on the Upright-Left (30) with
Handlebar Cover-Left #1 (12), Handlebar Cover-Left#2 (13) and #8 x 25 Handlebar Cover Screws (16) and Plastic Fixing
Inserts (137).
16
137
12
30
13
16
14
36
16
15
137
