Smooth Fitness 9.25HR User Manual
Page 17
SMOOTH 9.25HR MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
17
ASSEMBLY

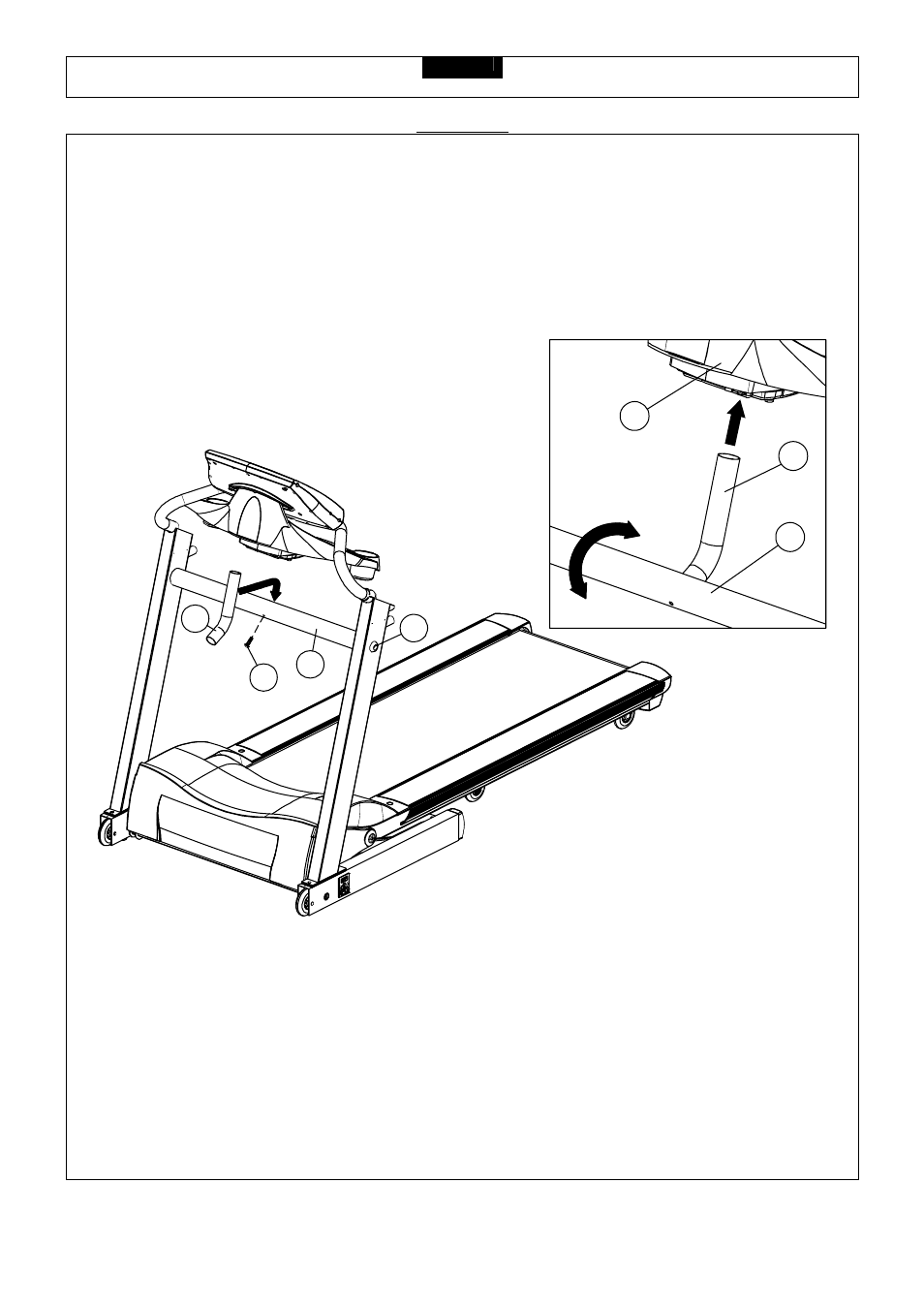

STEP 6:
Insert the Console Tray Support Tube (31) into the Upright Cross Brace (32). Rotate the Upright Cross Brace (32) and insert
the top of the Console Tray Support Tube into the Console Tray (22), as shown in FIG4. Secure the Console Tray Support
Tube (31) in place using the M8 x 25 Console Tray Support Tube Bolt (33).
31
33
32
28
22
31
32
FIG.4
