A Antennas
Find a location and an orientation that
provide good reception, and then set up
the antennas.
Keep the antennas away from the speaker
cords, the power cord and the USB cable
to avoid picking up noise.
B PC IN L/R jack
Use an audio cord (not supplied) to
connect the audio output of the optional
audio component to these jacks. You can
then output audio through this system.
C Subwoofer (MHC-GTZ5,
MHC-GTZ4 / GTZ4i, MHC-GTZ3 /
GTZ3i and LBT-GTZ4i only)
Be sure to insert the connector straight
into the terminals.
D Front speakers
Be sure to insert the connector straight
into the terminals.
E VOLTAGE SELECTOR
For models with a voltage selector, set
VOLTAGE SELECTOR to the local
power line voltage.
F Power
Connect the power cord to a wall socket.
The demonstration appears in the display.
If the plug does not fit the wall socket,
detach the supplied plug adaptor (only for
models equipped with an adaptor).
Attach the supplied speaker pads to the
bottom of the front speakers and
subwoofer to prevent slipping.
Front speakers:
4 pads for each speaker
Subwoofer:
4 pads (MHC-GTZ5, MHC-GTZ4 /
GTZ4i, MHC-GTZ3 / GTZ3i and
LBT-GTZ4i only)

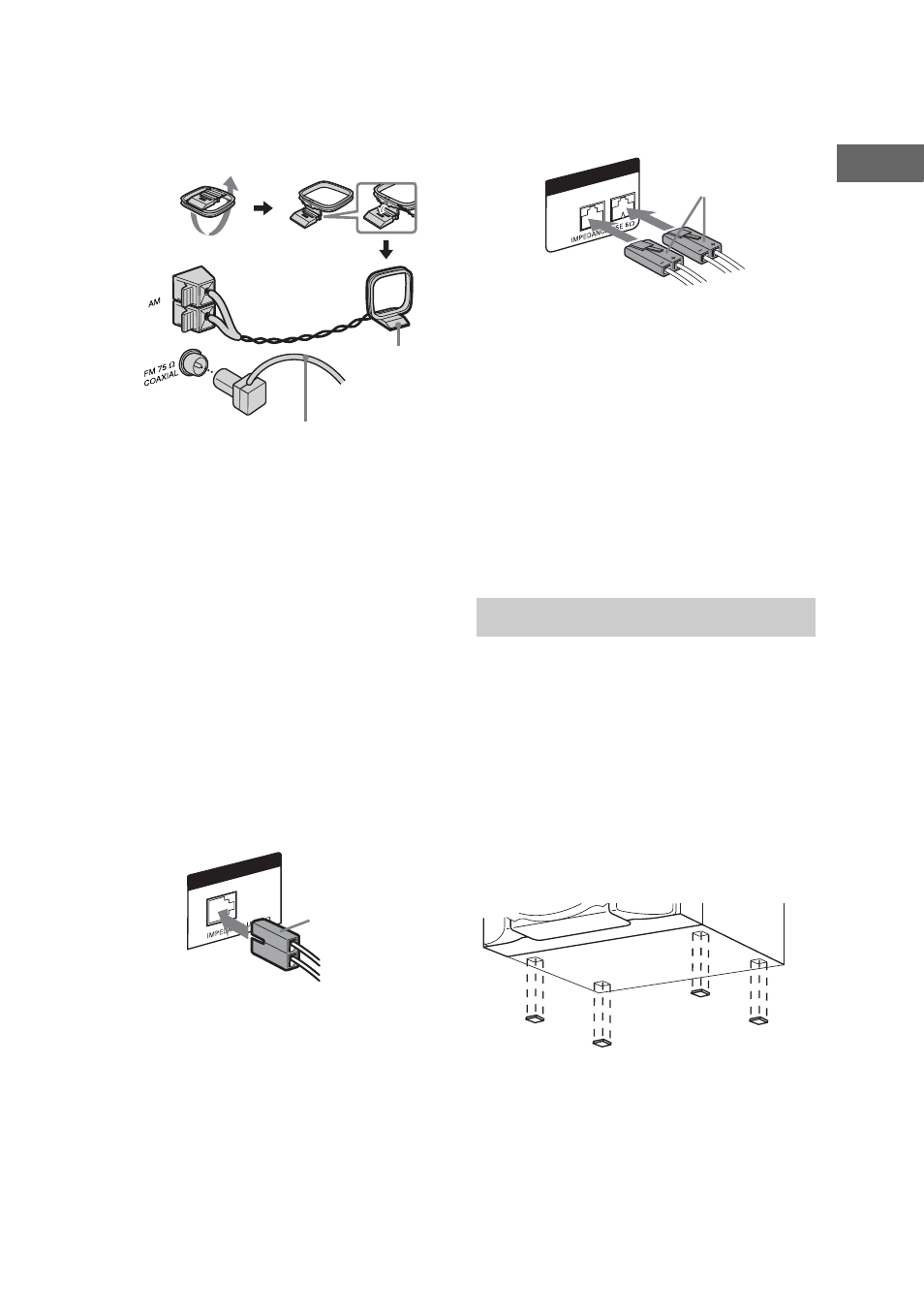

Extend the FM lead
antenna horizontally
AM loop
antenna
SUBWOO
FER
Purple
Attaching the speaker pads
R
L
FRONT SPEAKER
White
