OPERATION

Open Top burners

Lighting

1 . Light pilots adjacent to each burner .

2 . Turn valve completely on . Burner flame should be 1/2”

(13mm) high, stable and blue in color . It should also

impinge on the bottom of a pot placed on the burner

grate .

CAUTION: Should burner ignition fail within 4 seconds, turn

the burner valve off and repeat steps 1 through 2 . If ignition

continues to fail, consult your factory authorized service

agency .

Ovens (Standard)

Lighting

1 . Lower front kick panel below oven door, raise oven

hearth bottom for easy access to oven pilot .

2 . Turn oven control knob (figure 1) to “

” position and

then push in to engage the flow of gas through the safety

device to the pilot .

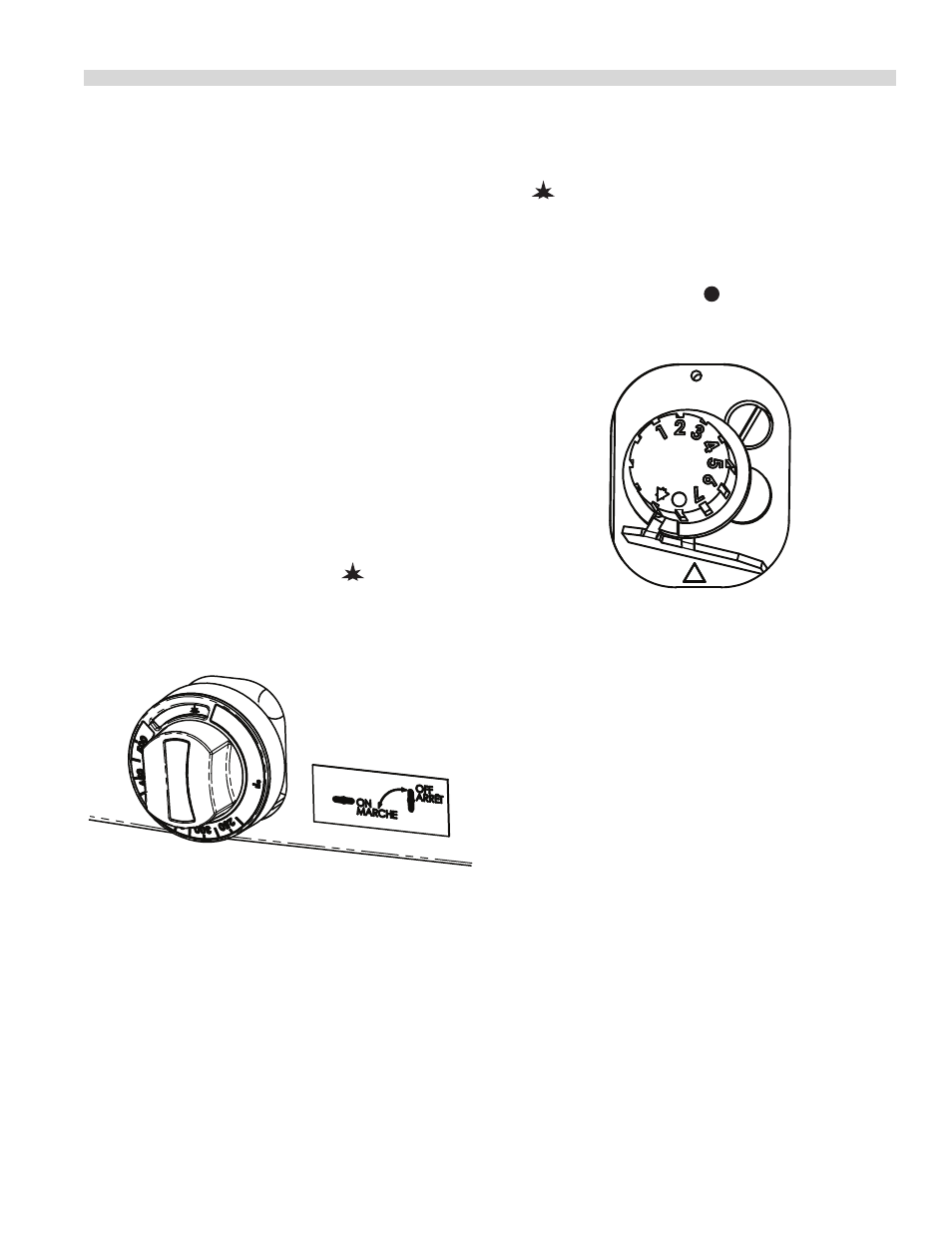

Figure 1

3 . While holding knob in, light pilot with a match/BBQ

lighter or use the spark ignition (if provided) to spark

ignite pilot .

4 . Continue to hold knob in for 15 seconds after ignition,

then release . Pilot should remain lit .

5 . If pilot burner fails to light or does not stay lit, wait 5

minutes and repeat steps 2 through 4 .

6 . Replace hearth and close kick panel, then turn oven

thermostat to desired cooking temperature .

7 . To shut down main burner turn control knob (figure 1) to

” position .

Shut Down

If pilot shut is down is required remove the temperature

thermostat knob by pulling it off carefully, then turn the

inner control knob (figure 2) to position . The system will

disengage with 60 seconds .

Figure 2

Hot Top Sections

1 . Raise or remove hot top plate section(s) . Each burner has

one pilot located at the front left side of the burner .

2 . Light pilots . The pilot burner should be adjusted to

provide for rapid ignition of the burner .

3 . Turn the burner valve on . A sharp blue flame should be

approximately 1/4-inch, (6mm), high .

4 . Replace hot top sections .

Valve Controlled Griddles

See griddle seasoning before use .

1 . Pilots should be lit though the front panel with an extend

match . If necessary the front panel of the range can be

removed to allow the griddle plates to be raised at the

front, block securely .

2 . Light pilots located at the front right side of each burner .

3 . Turn burner valves completely on . Burners should have

1/2-inch to 5/8-inch, (13mm to 16mm), stable blue flame .

4 . If the griddle has been raised, lower carefully into position

and replace the front panel of the range .
