21 5.45 MOTORIZED TREADMILL
ASSEMBLY

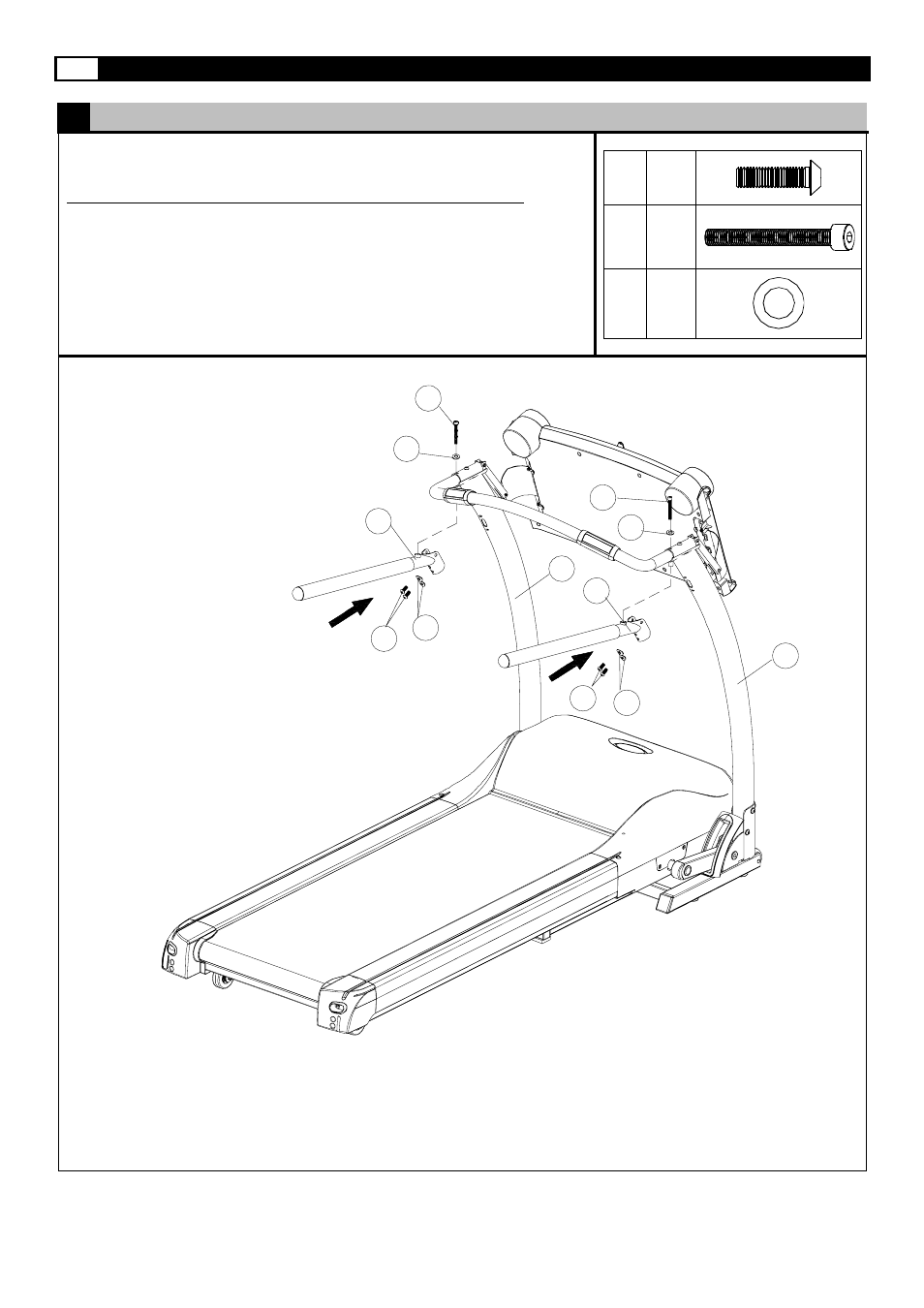

STEP4: Assemble The Side Handlebars
NOTE: Side rails are interchangeable for use on both right and left sides
A. Attach one handlebar (202) to the left upright (301)
B.
Secure the Side Handlebar with one M8 x75 mm bolt (845) and one Ø8
washer (812),through the top of front handle bar into the side handle bar .
C. Insert two M8x18 mm (810) and two Ø8 washer (812) through the side
handrail plate and thread into the upright .
D. Repeat the above process for the right side .
E. Tighten all bolts with Allen Wrench .
810 X4
845 X2
812 X6
845
812
810
202
845
812
812
301
810
301
202
812
