5.45 MOTORIZED TREADMILL 20
ASSEMBLY

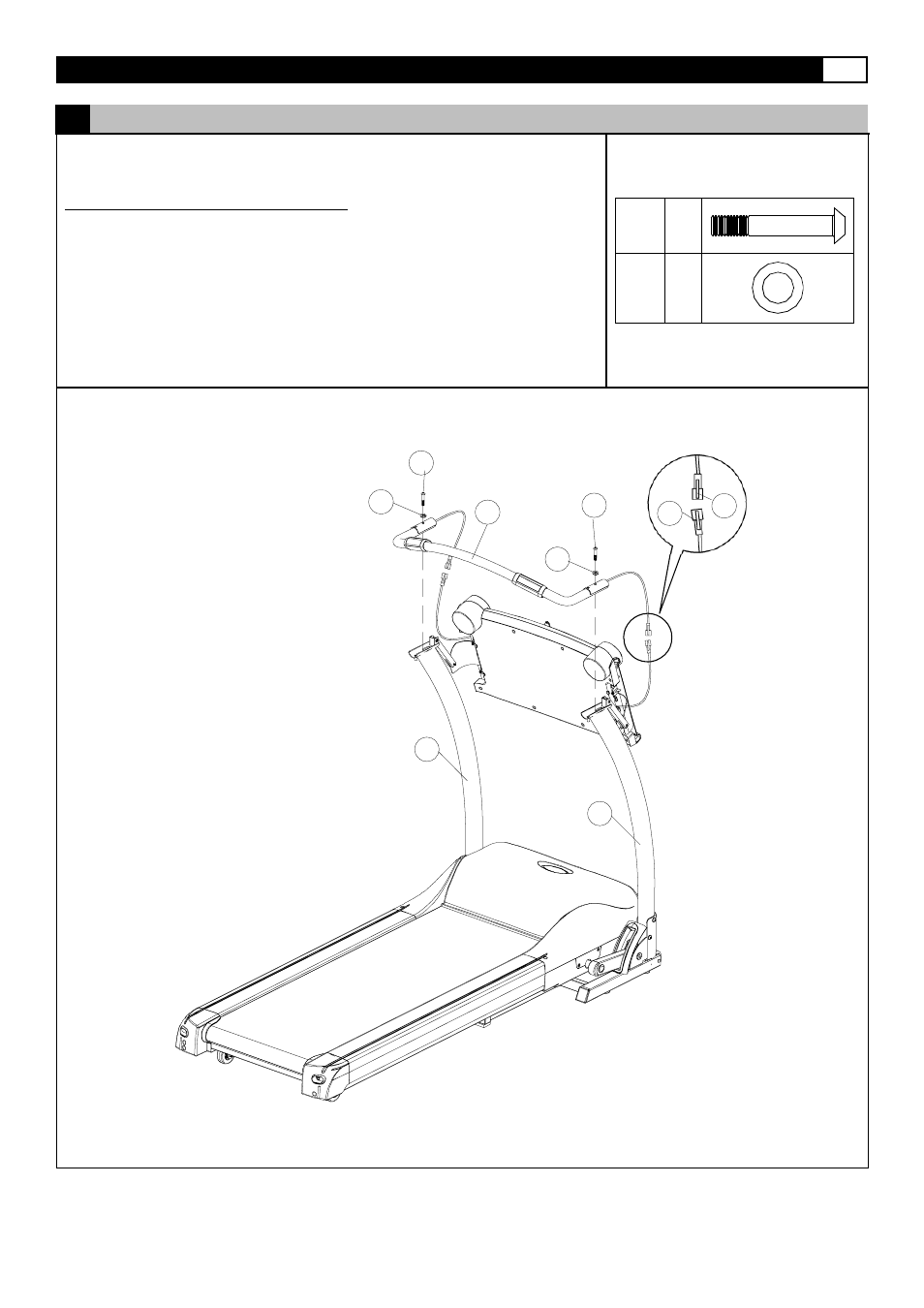

STEP 3: Assemble Front Handle Bar
NOTE : Only hand tighten bolts until last step.
A. Place the front handle bar (201) on top of the left and right upright (301).
B. Secure left side with one Ø8 washer (812) and M8x45 mm Allen bolt (805) in
the forward most hole .
C. Secure right side with one Ø8 washer (812) and M8x45 mm Allen bolt (805) in
the forward most hole .
D. Connect pulse wire (217) and wire (111) on left and right side (as shown in
diagram) . Then insert the remaining length of the wire into the front handle
bar tube . Tighten all bolts with Allen Wrench .
805 X2
812 X2
301
201
217 805
111
805
812
812
301
