18 17
CONNECTIONS
Press AUX on the remote control to select ‘DIGITAL IN’.
• Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX1 ➝ AUX2 ➝ FM ➝ AM.

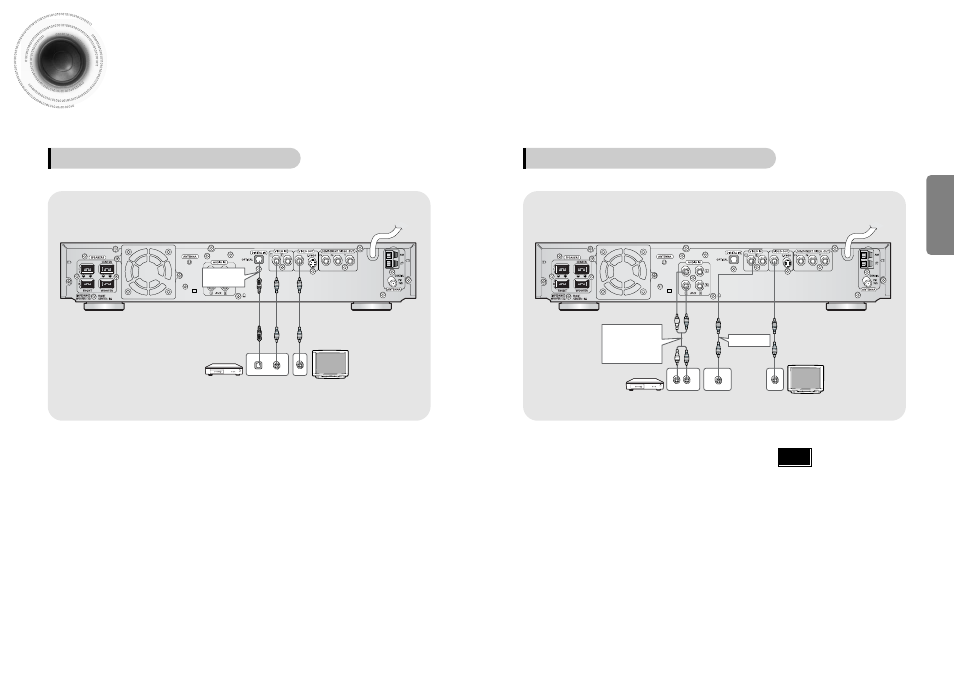

Connecting External Components
Connect Video Out on the DVD player to Video In on the TV.
1
Connect the Digital Input (OPTICAL) to the Digital Output on the external
digital component.
2
3
DIGITAL OUT VIDEO OUT VIDEO IN
Example: Digital signal components such as a Settop Box or CD Recorder.
Connecting an External Digital Component
Optical Cable
(not included)
Press AUX on the remote control to select AUX 1
or AUX 2.
• Each time the button is pressed, the selection changes as
follows: DIGITAL IN AUX 1 AUX 2.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝
AUX1 ➝ AUX2 ➝ FM ➝ AM.
• If you have connected an external digital
component and Video In (1, 2) at the
same time, there will be video from AUX 1
even when you select DIGITAL IN.
• If you have connected Audio In (L, R) to
1, connect Video In to 1 as well, and if
you have connected Audio In (L, R) to 2,
connect Video In to 2 also.
Connect Audio In on the DVD player to Audio
Out on the external analog component.
• Be sure to match connector colors.
Connect Video Out on the DVD player to Video
In on the TV.
1
Connect Video In on the DVD player to Video
Out on the external analog component.
2
3
4
VIDEO OUT AUDIO OUT VIDEO IN
L R
Example: Analog signal components such as a VCR or TV.
Connecting an External Analog Component
Video Cable
Audio Cable
If the external analog
component has only one
Audio Out, connect
either left or right.
Note
