PGX Digital Wireless Systems
Offering uniquely tailored wireless solutions for
vocalists, guitarists, and presenters, PGX-Digital
combines the trusted legacy of Shure wired
microphones with state-of-the-art, 24-bit digital
wireless technology to deliver strong, clean RF
performance. The result is wireless audio that
sounds like wired, rock-steady RF signal even at
extended distances, and plug-and-play setup and
operation.
• Professional quality 24-bit digital audio
• Digital RF technology for rock-solid
performance
• Wide variety of rugged and dependable Shure
microphones
• One-touch setup and operation
• Up to 10 hours of battery life (9 hours,
PGXD2)
• Up to 200 foot range (line-of-sight)
• 900 MHz operation—free from white spaces or
DTV interference
System Components
All systems include
• PGXD4 receiver
• 2 AA alkaline batteries
• Power supply
• User guide
Vocalist systems include
• PGXD2 handheld transmitter
• Microphone head (choice of PG58, SM58
® ,
SM86, Beta 58A ® or Beta 87A*)
• Microphone clip
* Available only in select markets
Lavalier, Headworn, and Instrument
systems include
• PGXD1 bodypack transmitter
• Microphone (choice of WL93, WL185, PG30 or
Beta 98H/C)

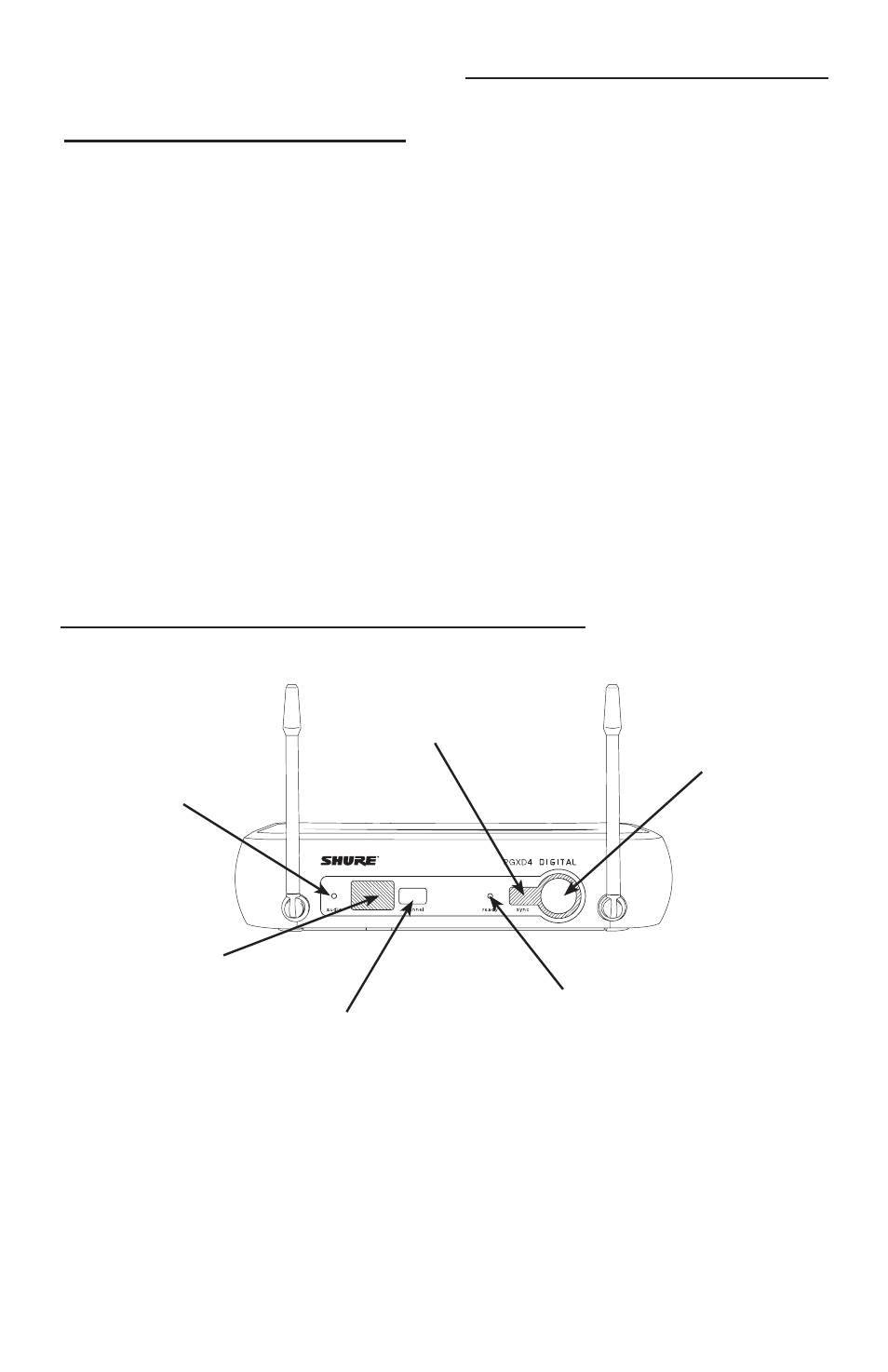

Receiver Controls and Connectors
① audio LED
Indicates strength
of incoming audio
signal: green for
normal, amber for
strong and red for
clipping.
② LED Screen
Displays group and
channel setting.
See “Single System
Setup” for details.
③ channel button
Changes group and
channel setting.
See “Single System
Setup” for details.
④ ready LED
Indicates system ready and receiving
an RF signal from the transmitter.
Also indicates battery level of the
transmitter:
• Green = transmitter battery level
normal
• Red = low battery (typically less
than 60 minutes with alkaline
batteries)
Note: with NiMH rechargeable batter-
ies, when the indicator turns red there
will be little to no remaining life.
⑤ Infrared (IR) port
Sends IR signal to
transmitter for sync.
⑥ sync button
Press to
synchronize
transmitter with
receiver group
and channel
settings.
PGXD
PGXD4
Guitar systems include
• PGXD1 bodypack transmitter
• 1/4” to mini 4-pin guitar cable
(WA302)
