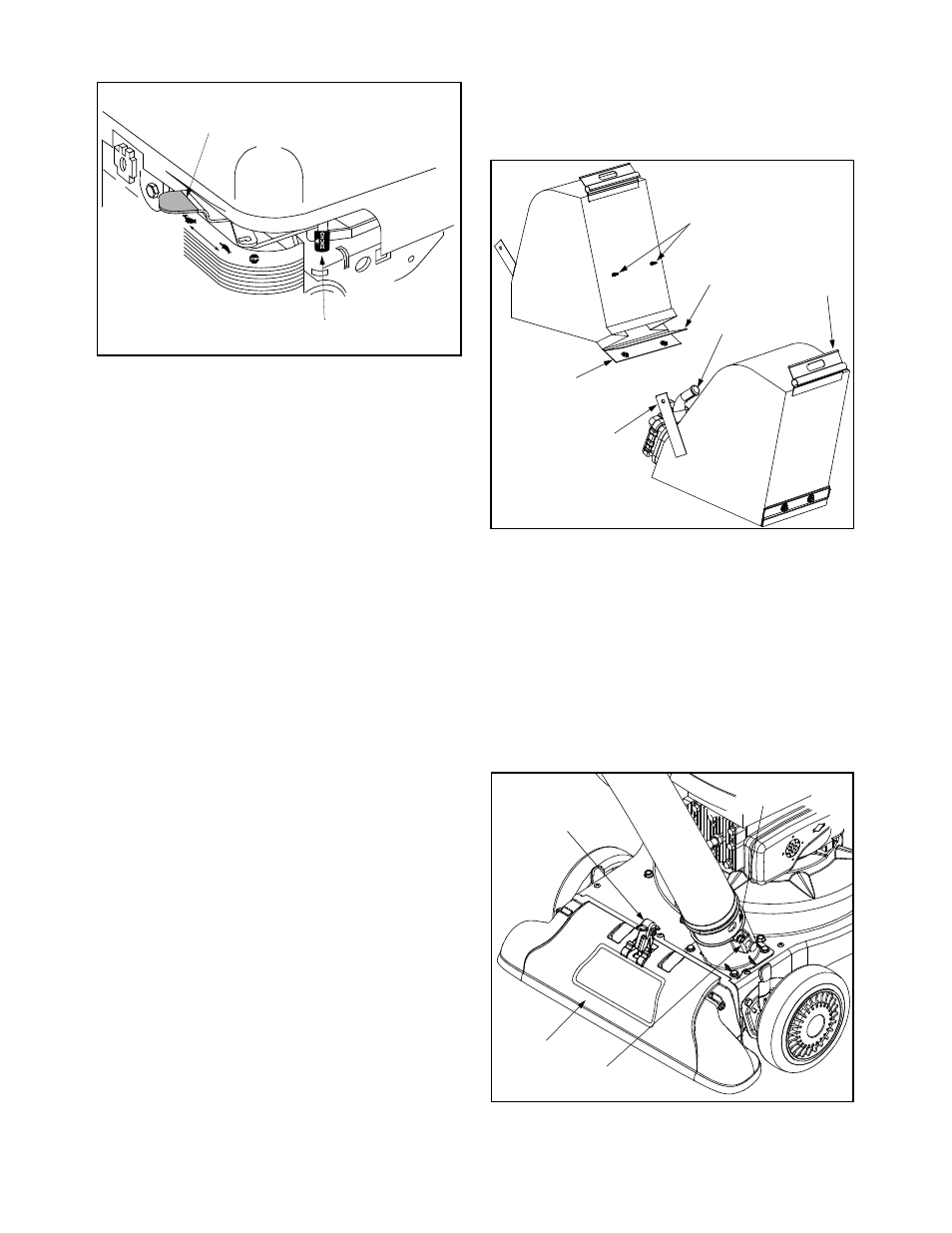

Figure 9
7. Standing behind the unit, grasp starter handle
and pull rope out until you feel a drag.
8. Pull the rope with a rapid, continuous, full arm
stroke. Keep a firm grip on the starter handle.
Let the rope rewind slowly.
9. Repeat, if necessary, until engine starts. When
engine starts, move choke control gradually
away from the throttle control.
10. If engine falters, move choke control back
toward the throttle control and repeat steps 7-9.
11. ALWAYS keep the throttle control in the START/
RUN position when operating the Yard Vacuum.
TO EMPTY BAG
• Unhook bag straps from the lower handle and
unsnap bag clip from top of the lower handle. See
Figure 10.
• Grasp bag handle with one hand and pull lock rod
on mounting bracket with other hand toward
engine to release.
• Lift bag off back of unit. Refer to .
• Twist the two buttons on the back of the bag to
unlock and empty contents. See Figure 10.
• Hold bag handle and bag clip while emptying the
contents.
• Compress bag opening and fold inner flap over
opening.
• Fold outer flap over inner flap and insert buttons
on the bag through metal outlets.
• Twist the buttons to lock bag.
Figure 10
TO REMOVE BLOWER CHUTE
• Grasp blower chute with one hand and pull lock
rod on mounting bracket with other hand toward
engine to release. Refer to Figure 7.
• Remove blower chute from over the rim of the
discharge opening.
Using the Nozzle Vacuum
Place nozzle/hose vac handle in the top position on
the nozzle to vacuum through nozzle. See Figure 11.
Figure 11
Choke Control
Throttle Control
Buttons
Inner Flap
Outer Flap
Bag Handle
Strap
Bag
Clip
Nozzle/Hose
Vac Lever
Spring Loaded Pin
(First Hole)
(Top Position)
Nozzle
Hose
Adapter
